Huawei iSitePower - Optional) Power Module M48500 N1

Item Specications
DC output Output voltage 43.2–58 V DC
Output current Max. 80 A
Structure Dimensions (H x
W x D)
40.8 mm × 105 mm × 284 mm
Surge
Protection
Input port Dierential mode, common mode: 2 kV/4 kV
Edge connector
port
Dierential mode, common mode: 2 kV/4 kV
CAN
communications
port
Dierential mode, common mode: 2 kV/4 kV
3.2.10 (Optional) Power Module M48500N1
CA UTION
Do not connect multiple M48500N1 modules in parallel. Otherwise, the modules
may be damaged.
The power module M48500N1 is a DC-to-DC or DC-to-AC converter that operates
over an input from 40 V DC to 60 V DC. The power module supports three output
voltages: 12 V DC (output power: 100 W), 24 V DC (output 200 W), and 24 V AC
(output power: 200 W).

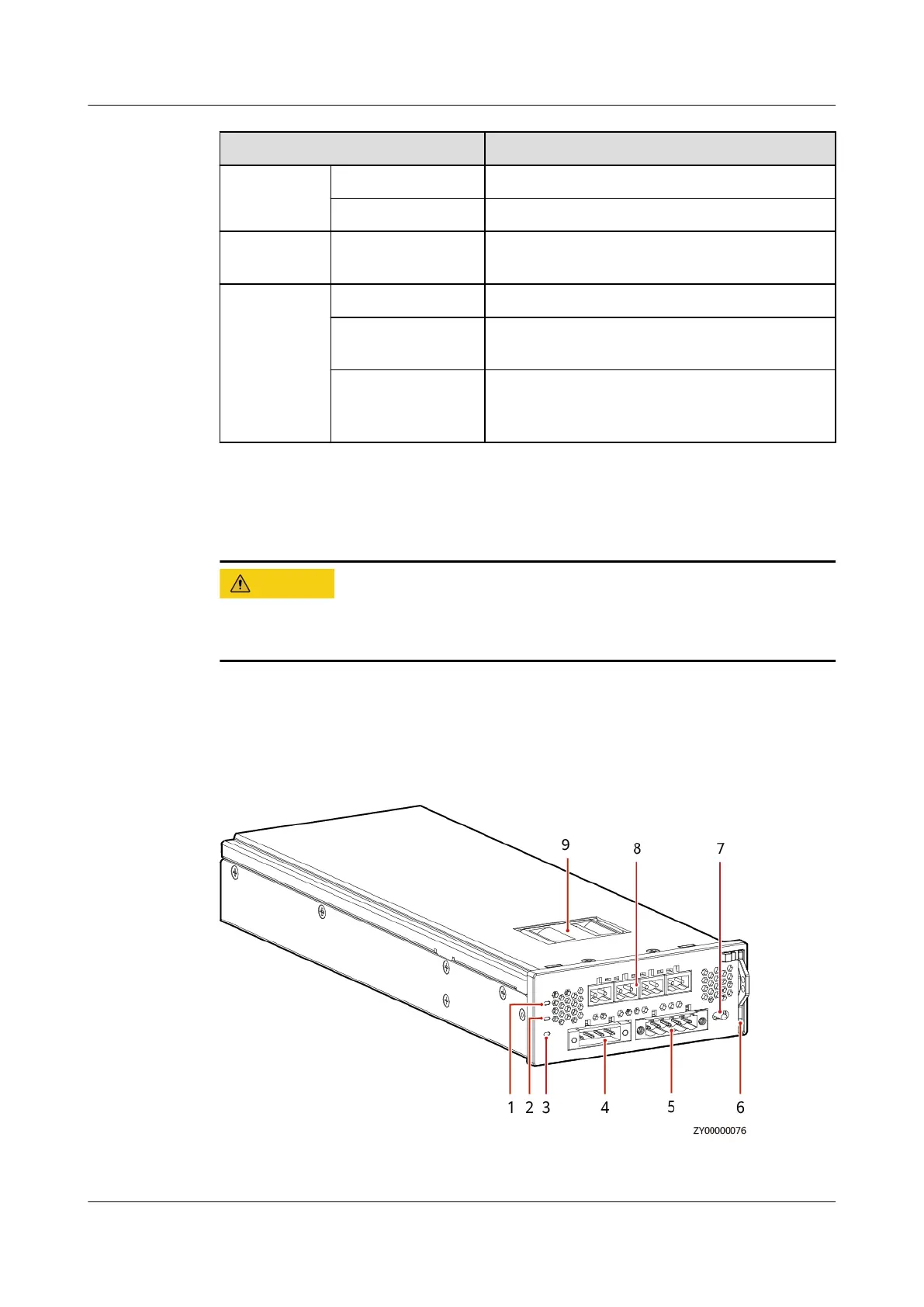

Figure 3-27 Appearance
(1) Power indicator
(2) Alarm indicator (3) Fault indicator
