Huawei iSitePower - Port Definitions; Sensor

Electronic
Lock
DIP Switch 1 DIP Switch 2 DIP Switch 3 Address
2 ON OFF OFF 92
3 OFF ON OFF 93
4 ON ON OFF 94
5 OFF OFF ON 95
6 ON OFF ON 96
7 OFF ON ON 97
8 ON ON ON 98

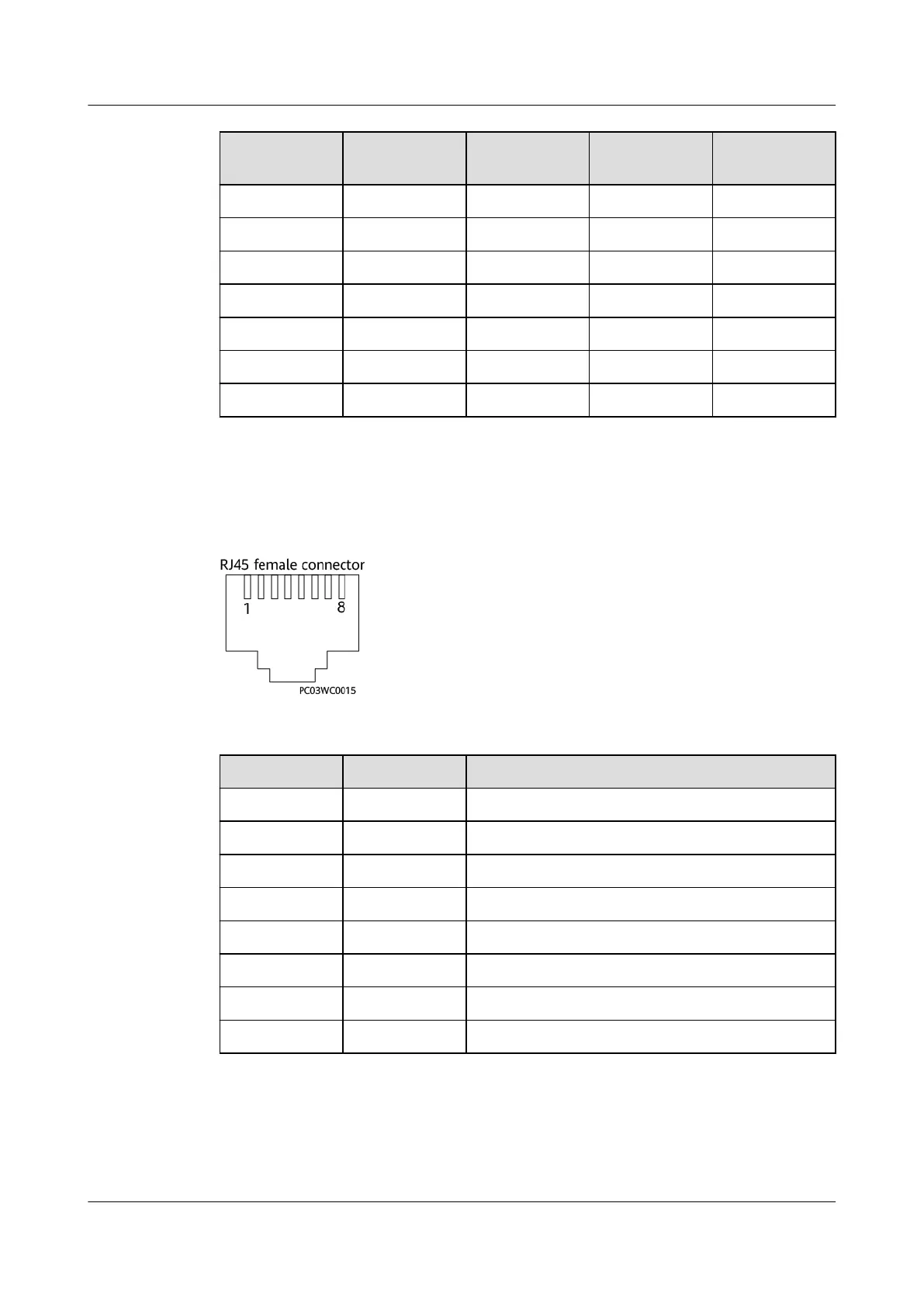

Port Denitions
Figure 3-62 Ports on the electronic lock
Table 3-63 Port denitions of the electronic lock
Pin
Denitions Description
1 RS485_RX+ RS485 data +
2 RS485_RX- RS485 data -
3 12V Power supply
4 / -
5 / -
6 / -
7 / -
8 GND Ground
