Figure 3-66 Appearance 2
DIP Switch

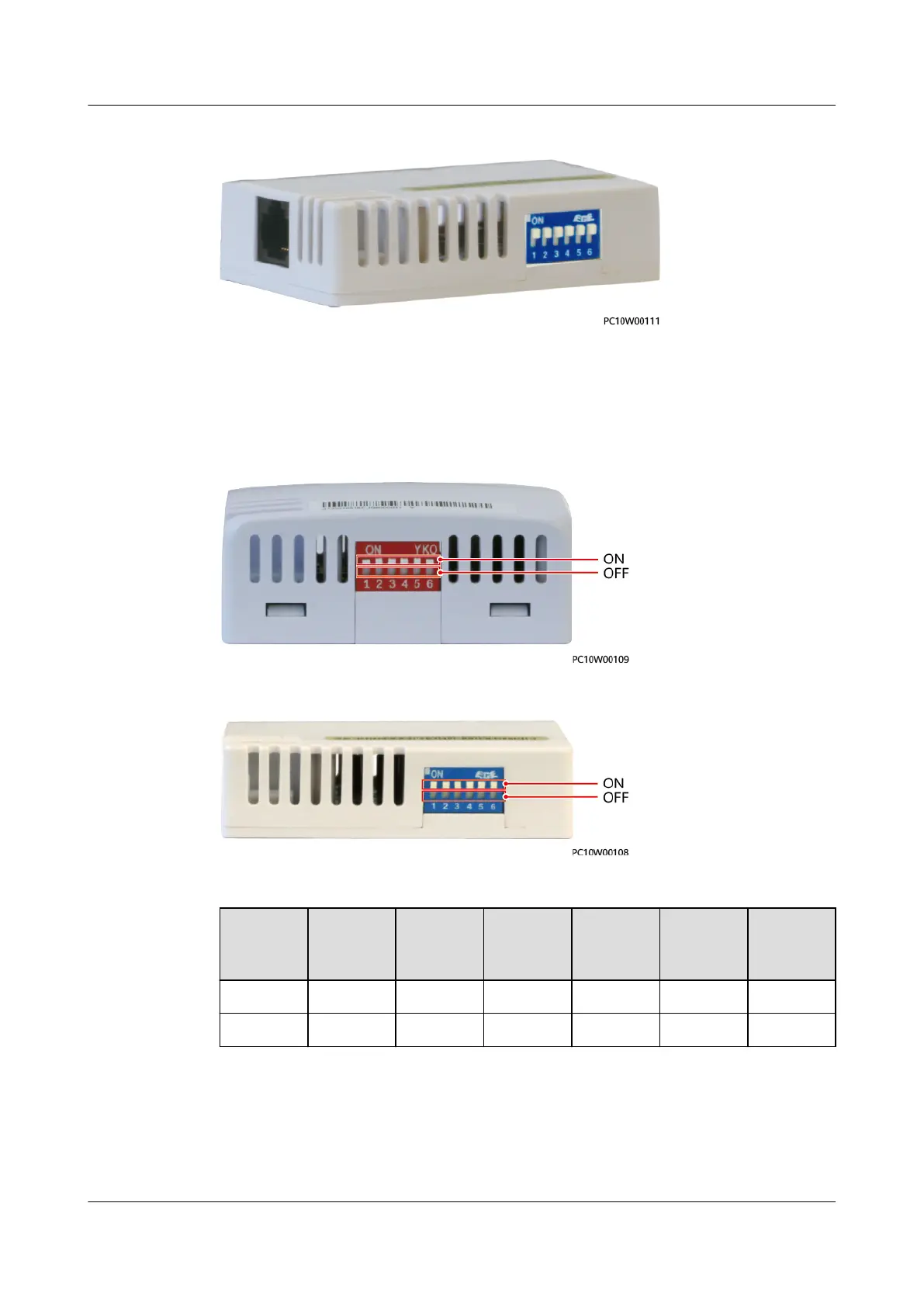

The following gure shows the DIP switch on a digital T/H sensor. The following
table describes the DIP switch settings.
Figure 3-67 DIP switch 1
Figure 3-68 DIP switch 2
Table 3-64 DIP switch settings
Toggle
Switch 1
Toggle
Switch 2
Toggle
Switch 3
Toggle
Switch 4
Toggle
Switch 5
Toggle
Switch 6
T/H
Sensor
Address
ON ON OFF OFF ON ON 51
OFF OFF ON OFF ON ON 52
3.2.30.3 Water Sensor
A water sensor detects water based on the resistance change between both
electrodes.
iSitePower Integrated Smart Site (ICC1000-A1-E1)
User Manual 3 Components
Issue 04 (2022-10-15) Copyright © Huawei Technologies Co., Ltd. 84
