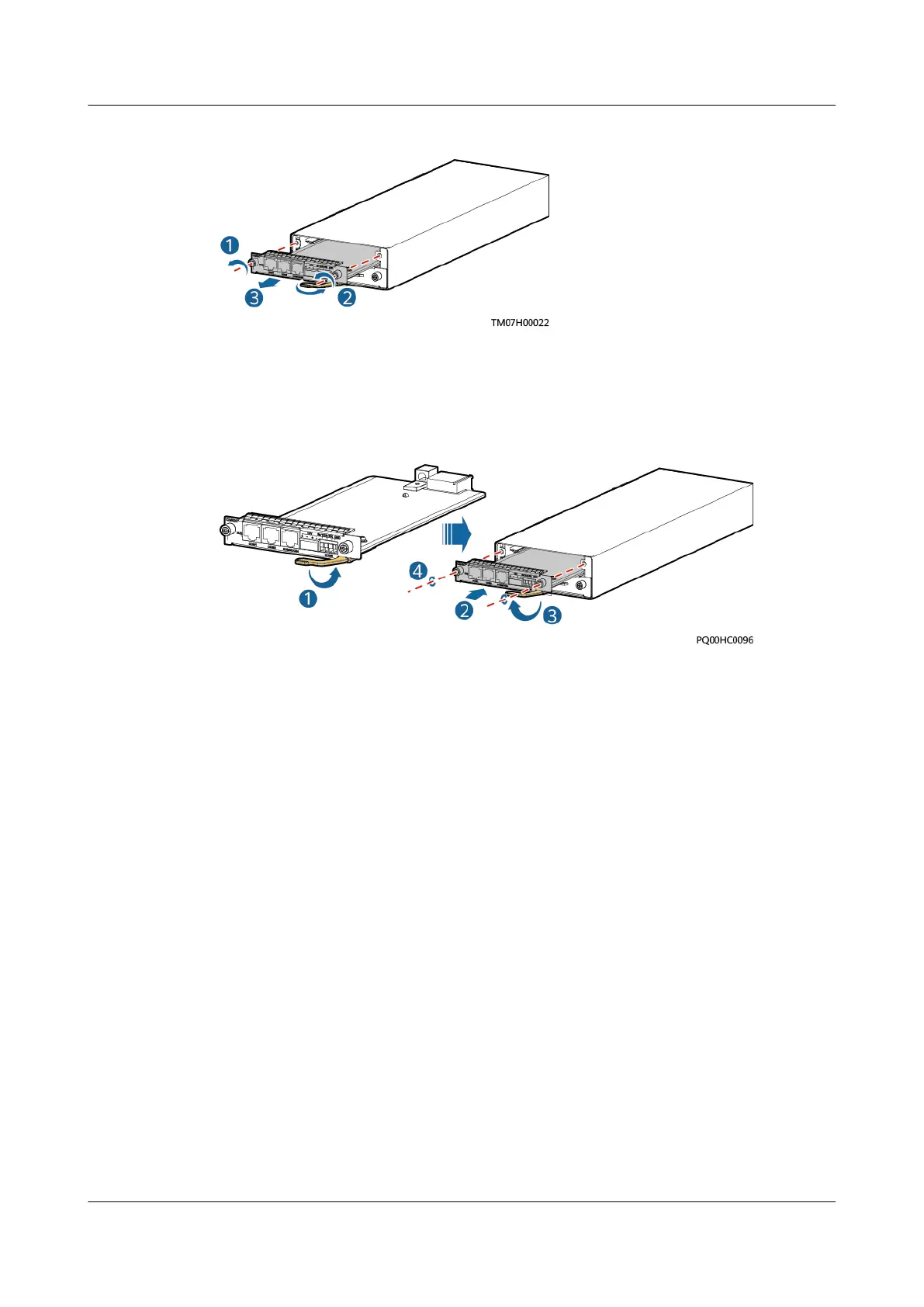

Figure 4-14 Removing the CIM02C
Step 5 Place the new CIM02C into the correct slot in the subrack, and push the CIM02C
until its front panel is
ush with the front panel of the subrack.
Step 6 Push the handle inwards until it is engaged, and then tighten the screws.
Figure 4-15 Installing the CIM02C
Step 7 Reconnect the cables to the new CIM02C panel based on the information you
recorded.
Step 8 Disconnect the ground cable from the ESD wrist strap, and remove the ESD wrist
strap and ESD gloves.
----End
Follow-up Procedure
Pack the removed component and have it sent to the local warehouse.
4.3.9 Replacing a NIM01C3
Prerequisites
● An ESD wrist strap, ESD gloves, ESD box or bag, cabinet door key, and
required tools are available.
● The new NIM01C3 is intact.
Procedure
Step 1 Connect the ground cable to the ESD wrist strap, and put on the ESD wrist strap
and ESD gloves.
Step 2 Record all cable connection positions on the communications expansion module
and disconnect the cables.
