Indicator Status Description Troubleshooting
The inverter module is not in
position.
Check that the inverter
module is properly installed.
NOTE
1. Rectify a fault by referring to the preceding troubleshooting methods.
2. If the fault persists, replace the inverter module.
3. Return the faulty inverter module to Huawei for repair.

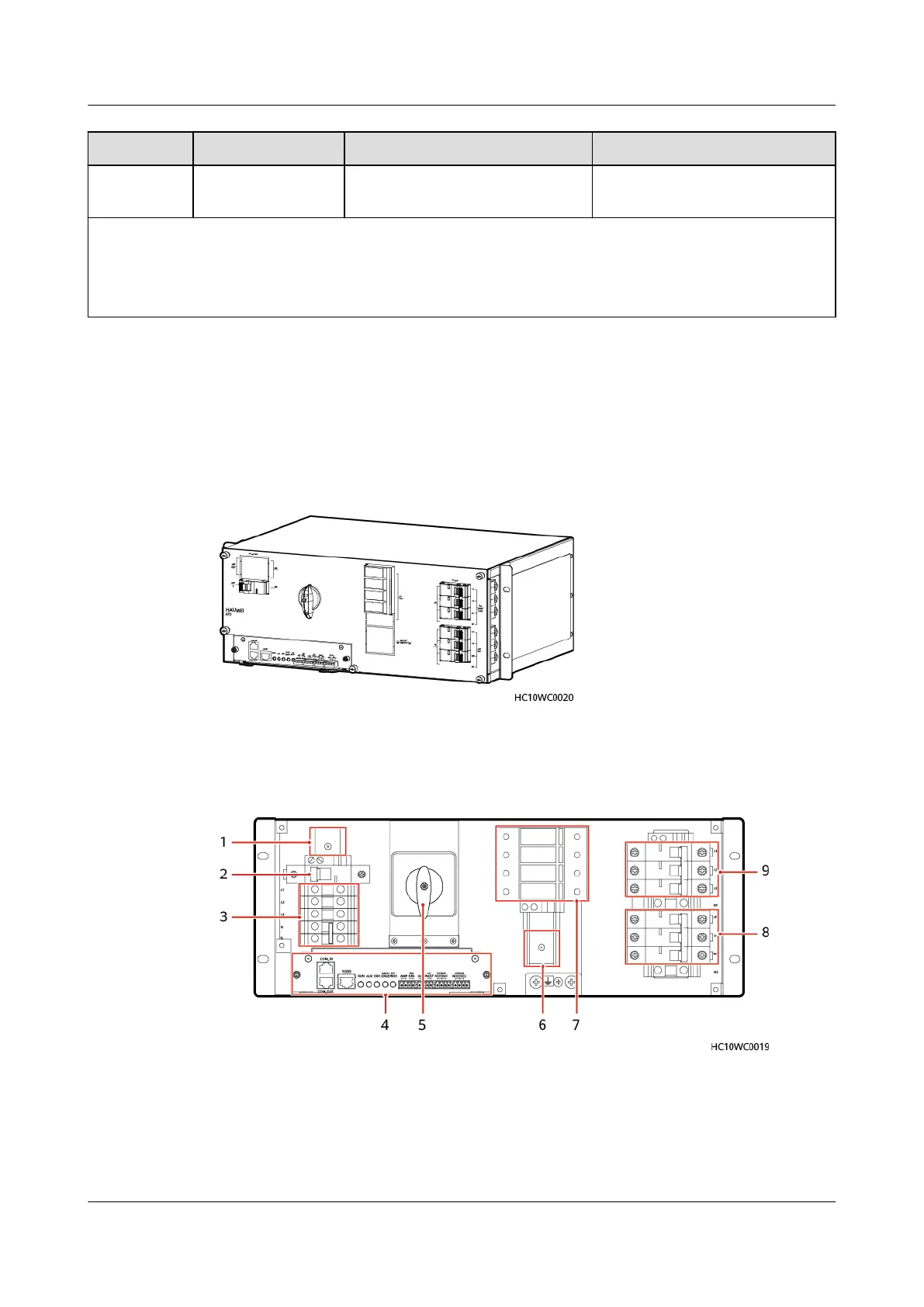

3.2.19 (Optional) AC Transfer Switch ATS-63A2
Exterior
Figure 3-47 ATS exterior
Interior
Figure 3-48 ATS interior
(1) Space for a residual current
device (RCD)
(2) 10 A AC output circuit
breaker
(3) Three-phase AC output
terminals
(4) ATS main control box (5) Transfer switch (6) Space for a maintenance
socket
iSitePower Integrated Smart Site (ICC1000-A1-E1)
User Manual 3 Components
Issue 04 (2022-10-15) Copyright © Huawei Technologies Co., Ltd. 70
