3.2.7 (Optional) DG Battery Charger BC-1206A

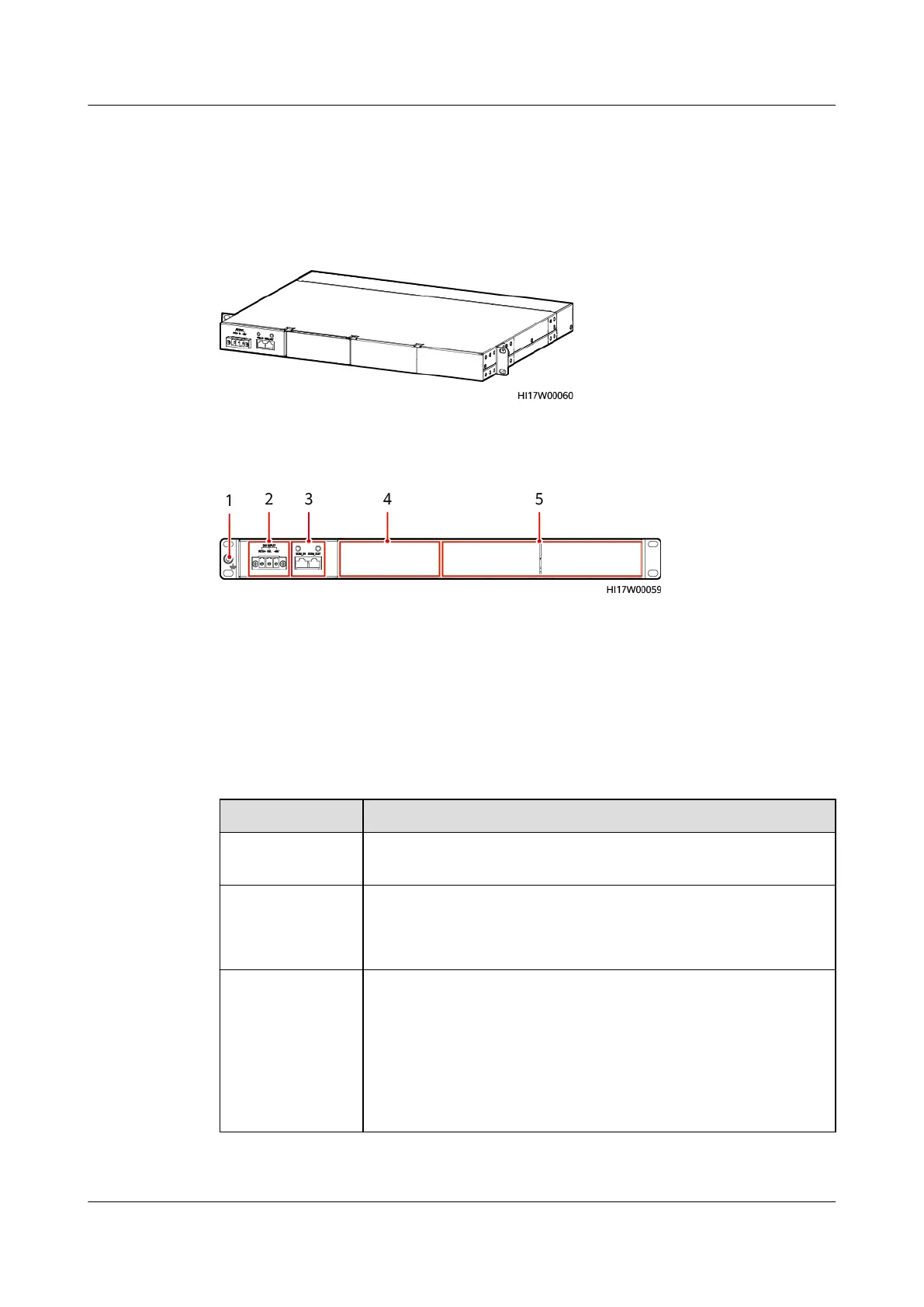

Figure 3-23 BC-1206A exterior
Figure 3-24 BC-1206A interior
(1) Ground screw
(2) DC input (3) Network ports
(4) Surge protection board
(behind the bae plate)
(5) Slots for the BCU-1203A
Description
Table 3-22 BC-1206A function description
Function
Description
DC module The BC-1206A can integrate two BCU-1203A modules, each
with one –48 V DC input and one 13.50 V DC/3 A output.
Input protection ● Protects against input undervoltage.
● Protects against input overcurrent.
● Protects against input reverse connection.
Output
protection
● Protects against output overvoltage.
● Protects against output current limiting.
● Protects against output short circuits.
● Protects against output reverse connection.
● Protects against output overtemperature.
● Isolates output faults.
