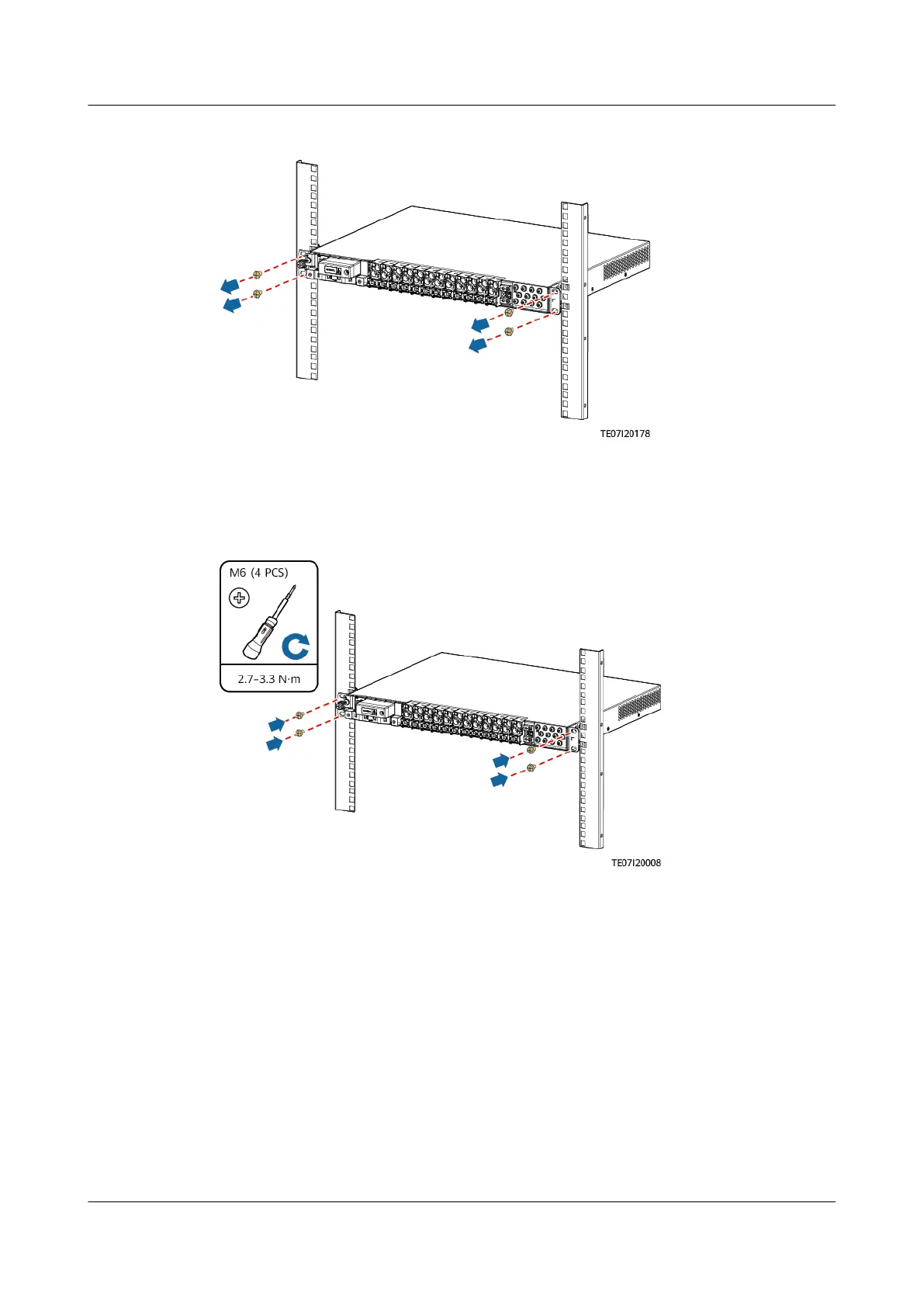

Figure 4-27 Removing an ACDB220-63-12B
Step 4 Install a new ACDB220-63-12B.
Figure 4-28 Installing an ACDB220-63-12B
Step 5 Connect the cables to the ACDB220-63-12B based on the recorded information.
Step 6 Remove the ESD wrist strap or gloves and put all the tools away.
----End
4.3.17 Replacing an ACDB220-40-1B
Prerequisites
● The ESD wrist strap or ESD gloves, Phillips screwdriver, ESD box or bag, and
cabinet door key are available.
● You are authorized to enter the site with the key.
iSitePower Integrated Smart Site (ICC1000-A1-E1)
User Manual 4 Maintenance
Issue 04 (2022-10-15) Copyright © Huawei Technologies Co., Ltd. 137
