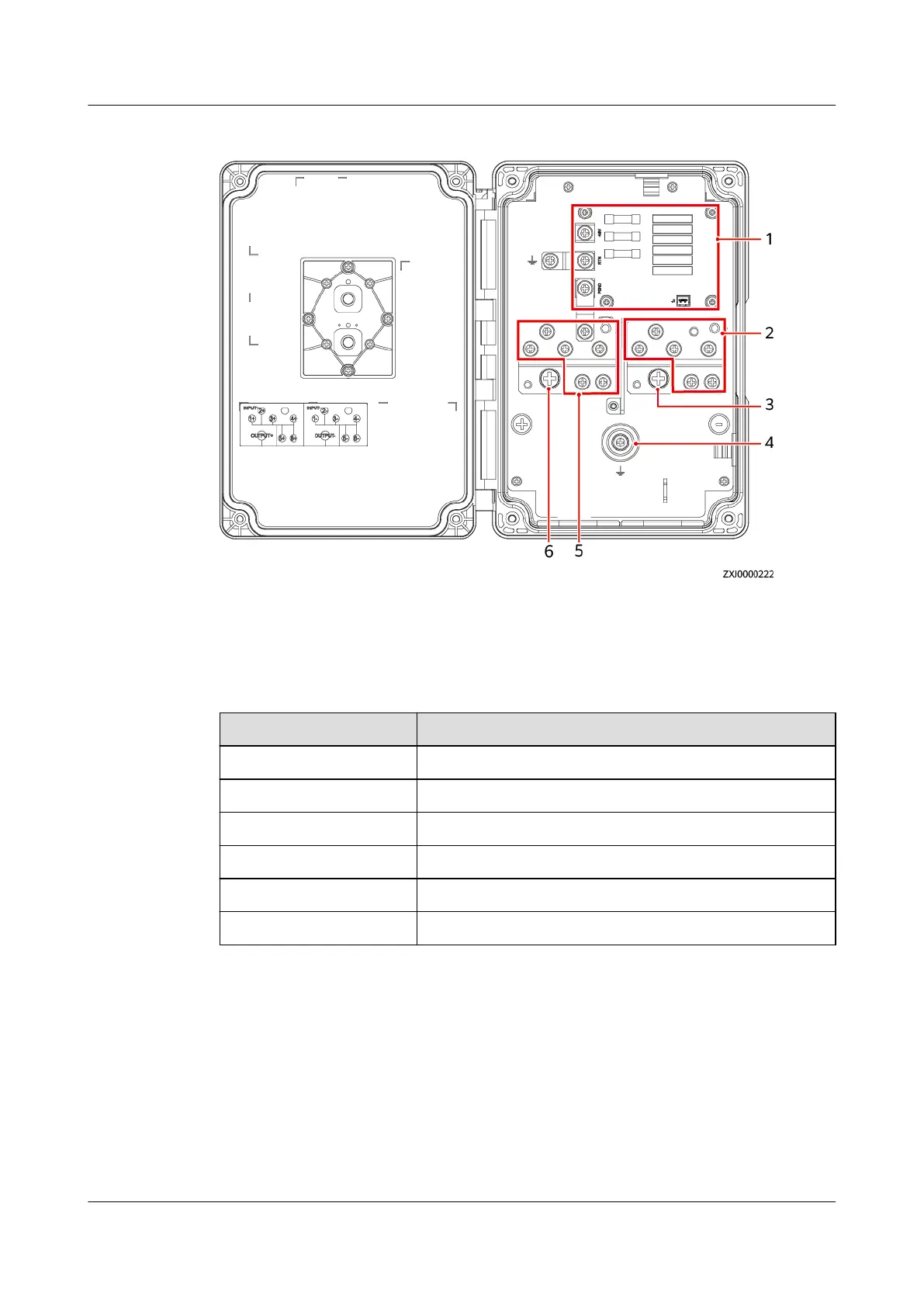

Figure 3-9 SJB-0601A interior
(1) Surge protection board (2) Input– (3) Output–
(4) Ground screw (5) Input+ (6) Output+
Table 3-5 SJB-0601A technical specications
Item
Specications
Dimensions (H x W x D) 220 mm x 158 mm x 65 mm
Ports Six inputs converge into one output.
Operating voltage SJB-0601A (02312VQH): 43.2–58 V DC
IP rating IP55
Installation mode Mounted on a pole or wall
Cabling mode Routed in and out from the bottom
3.1.4 (Optional) DG
3.1.4.1 EPM180-M2B
A DG converts chemical energy into electricity. In a DG, the engine converts
thermal energy into mechanical energy, and then the generator converts
mechanical energy into electricity.
