Working Mode
The ATS can work in automatic mode (AUTO) or manual mode (BYPASS).
3.2.20 (Optional) AC Distribution Unit ACDB380-63-2B
The ACDB380-63-2B is used to connect to the mains and DG input. It supports
three-phase four-wire AC output and single-phase AC output.
Panel

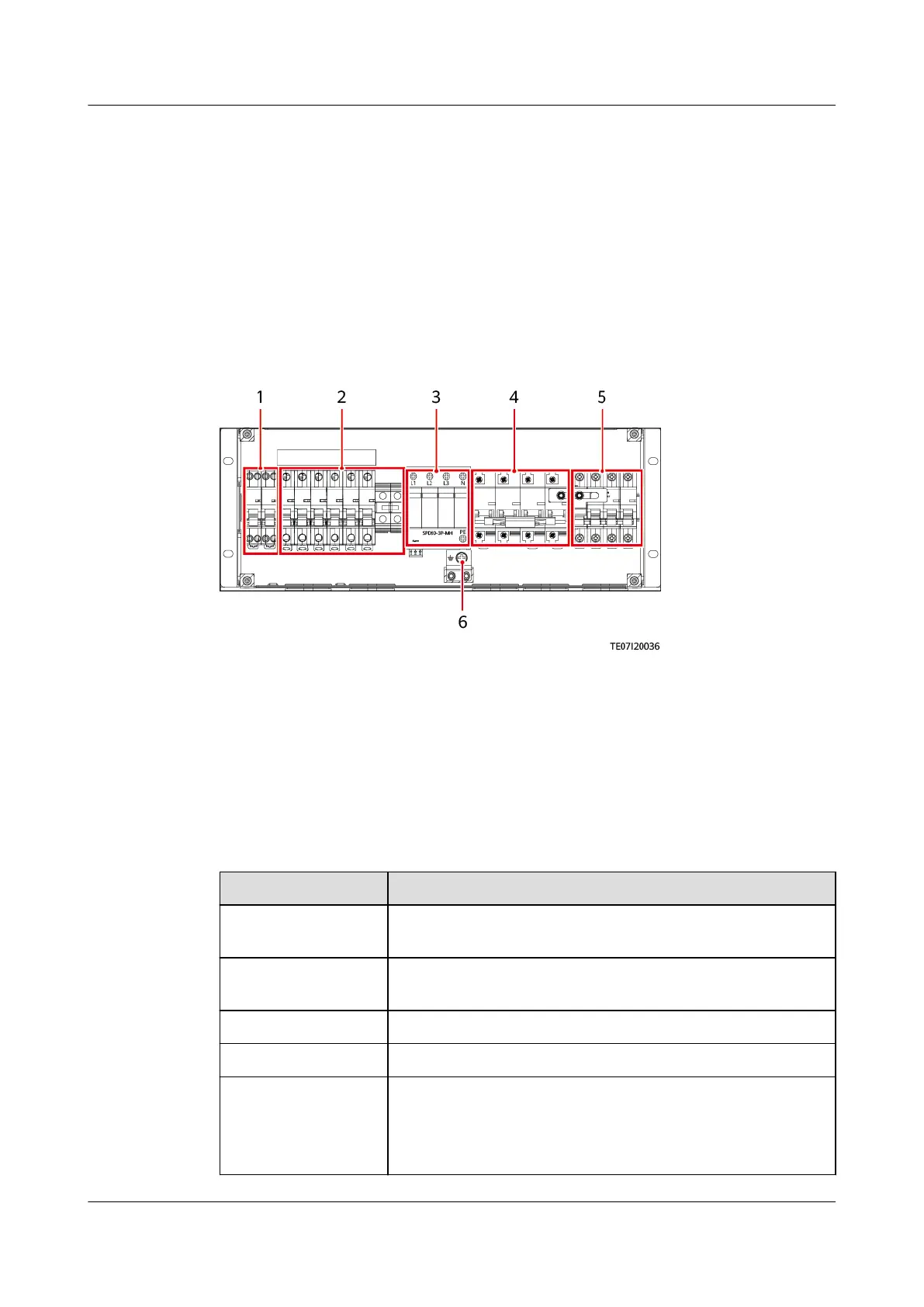

Figure 3-49 Panel
(1) Single-phase AC output
circuit breakers
(2) Three-phase four-wire AC
output circuits breaker and N
terminal
(3) SPD
(4) Mains AC input circuit
breakers
(5) DG AC input circuit
breakers
(6) Ground screw
Technical Specications
Table 3-53 Technical Specications
Item
Specications
Operating
temperature
–20°C to +50°C
Dimensions (H x W
x D)
72.7 mm x 482.6 mm x 175 mm
Weight 6 kg
Operating voltage 220 V three-phase four-wire input, 50/60 Hz
AC power
distribution
● AC input circuit breaker: Mains: 1 x 125 A/4P; DG: 1 x
63 A/4P; mechanical interlock
● AC output circuit breaker: Three-phase four-wire: 2 x
63 A/3P; single-phase: 2 x 16 A/P
