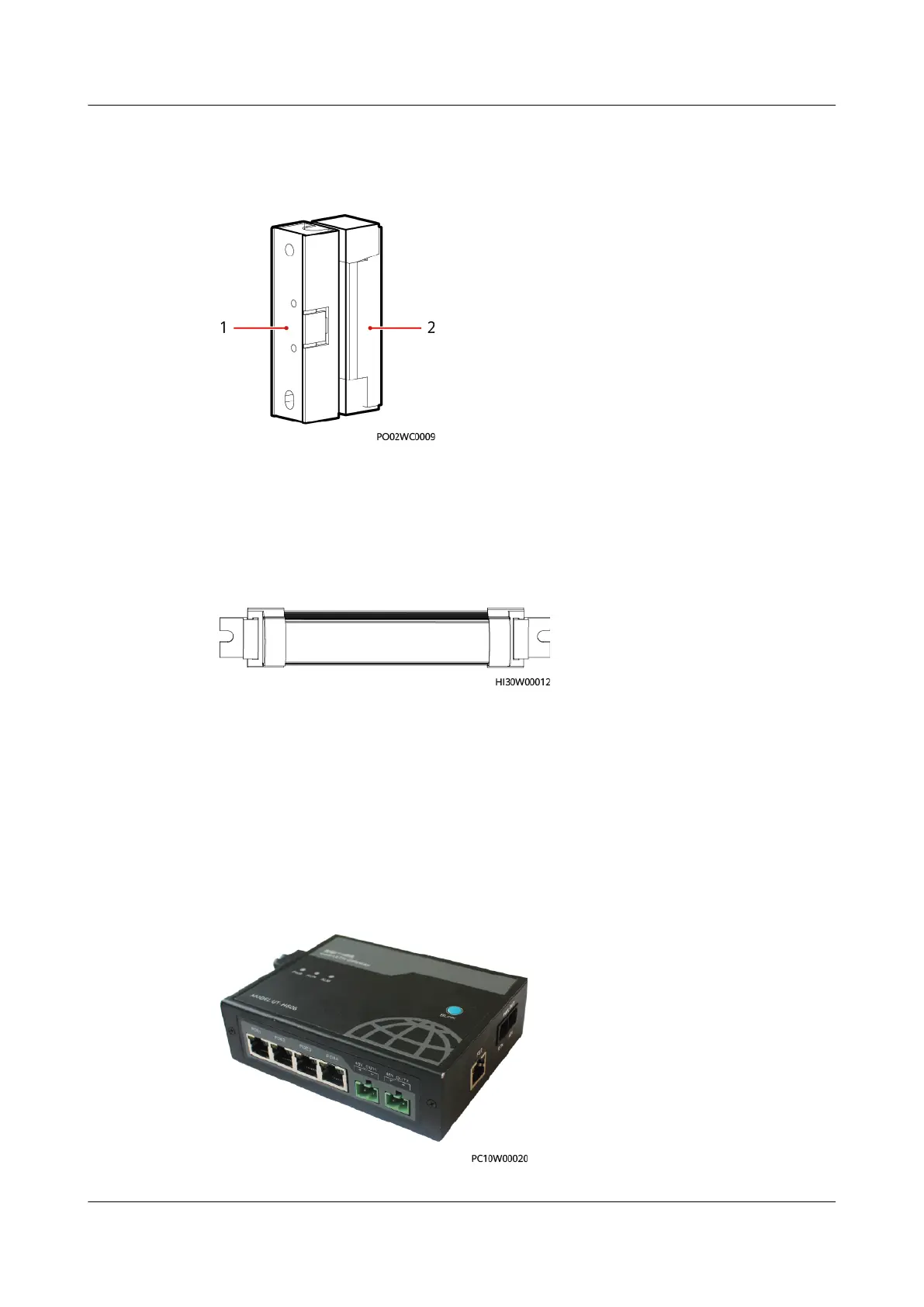

3.2.30.5 Door Status Sensor
Figure 3-71 Appearance
(1) Switch (2) Magnet
3.2.31 Light
Figure 3-72 Appearance
3.2.32 (Optional) Smart ETH Gateway
The smart ETH gateway provides two FE ports, four PoE ports, and three –48 V
power ports, and can connect to multiple communications devices such as IP
cameras.
Appearance
Figure 3-73 Appearance
iSitePower Integrated Smart Site (ICC1000-A1-E1)
User Manual 3 Components
Issue 04 (2022-10-15) Copyright © Huawei Technologies Co., Ltd. 86
