Indicator Color Status Description
The PSU is in hibernation state.
Blinking
at 0.5
Hz
The communication between the PSU and the
external device is interrupted.
Fault indicator Red O The PSU is proper.
Steady
on
The PSU locks out due to output overvoltage.
The PSU has no output due to an internal fault.
3.2.6 (Optional) S4875G1
The S4875G1 is a DC-DC converter that supports the maximum power point track
(MPPT) function and provides 48 V DC output. It automatically enables solar cells
to work at the maximum power point of the output power curves, fully utilizing
solar energy.
Panel

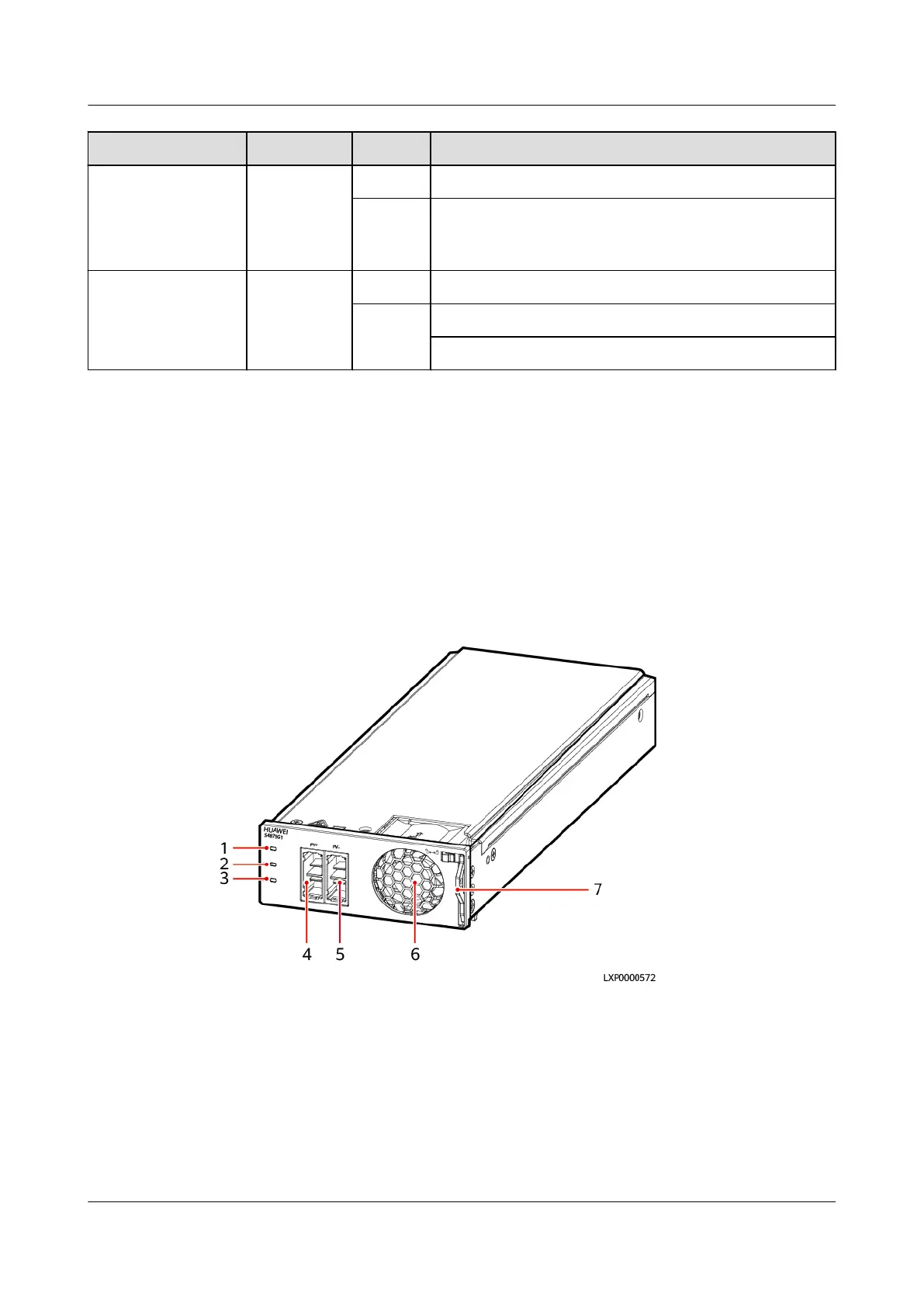

Figure 3-22 panel
(1) Power indicator
(2) Alarm indicator (3) Fault indicator
(4) PV positive input port (5) PV negative input port (6) Air intake vent
(7) Handle
