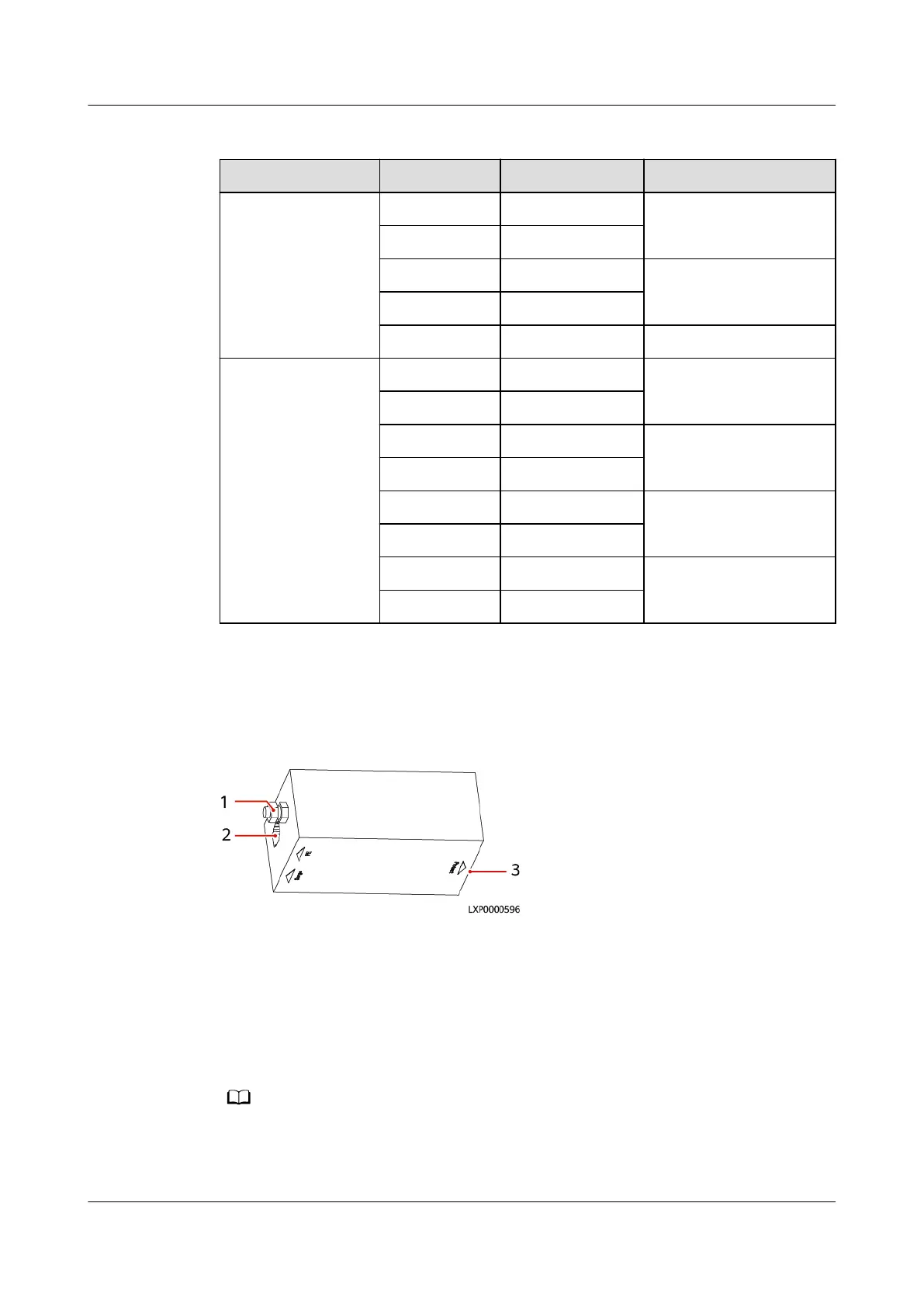

Table 3-68 FE and PoE port pin denitions
Port Type Pin Signal Description
FE1/FE2 port 1 TX+ Transmits data.
2 TX-
3 RX+ Receives data.
6 RX-
4, 5, 7, 8 Reserved -
PoE1–PoE4 ports 1 TX+ Transmits data.
2 TX-
3 RX+ Receives data.
6 RX-
4 PoE_48V 48 V power supply
5 PoE_48V
7 PoE_GND Ground
8 PoE_GND
3.2.33 (Optional) Signal SPD
Figure 3-77 Appearance
(1) Ground screw
(2) Surge port (3) Protcet port
3.2.34 (Optional) Camera
Camera Outside the Cabinet
The camera outside the cabinet is in the external environment. If the camera is blocked by
dust, clean it periodically.
