Huawei iSitePower - Optional) DG Battery Charger Module BCU-1203 A

Technical Specications
Table 3-23 BC-1206A technical specications
Item Specications
Dimensions (H x W x D) 43.6 mm x 482.6 mm x 330 mm (including mounting
ears)
Weight ≤ 10 kg
Input operating voltage –40 V DC to –60 V DC
Output voltage 13.5 V; max. 6 A (max. 3 A for a single BCU)
Output power 81 W
3.2.8 (Optional) DG Battery Charger Module BCU-1203A

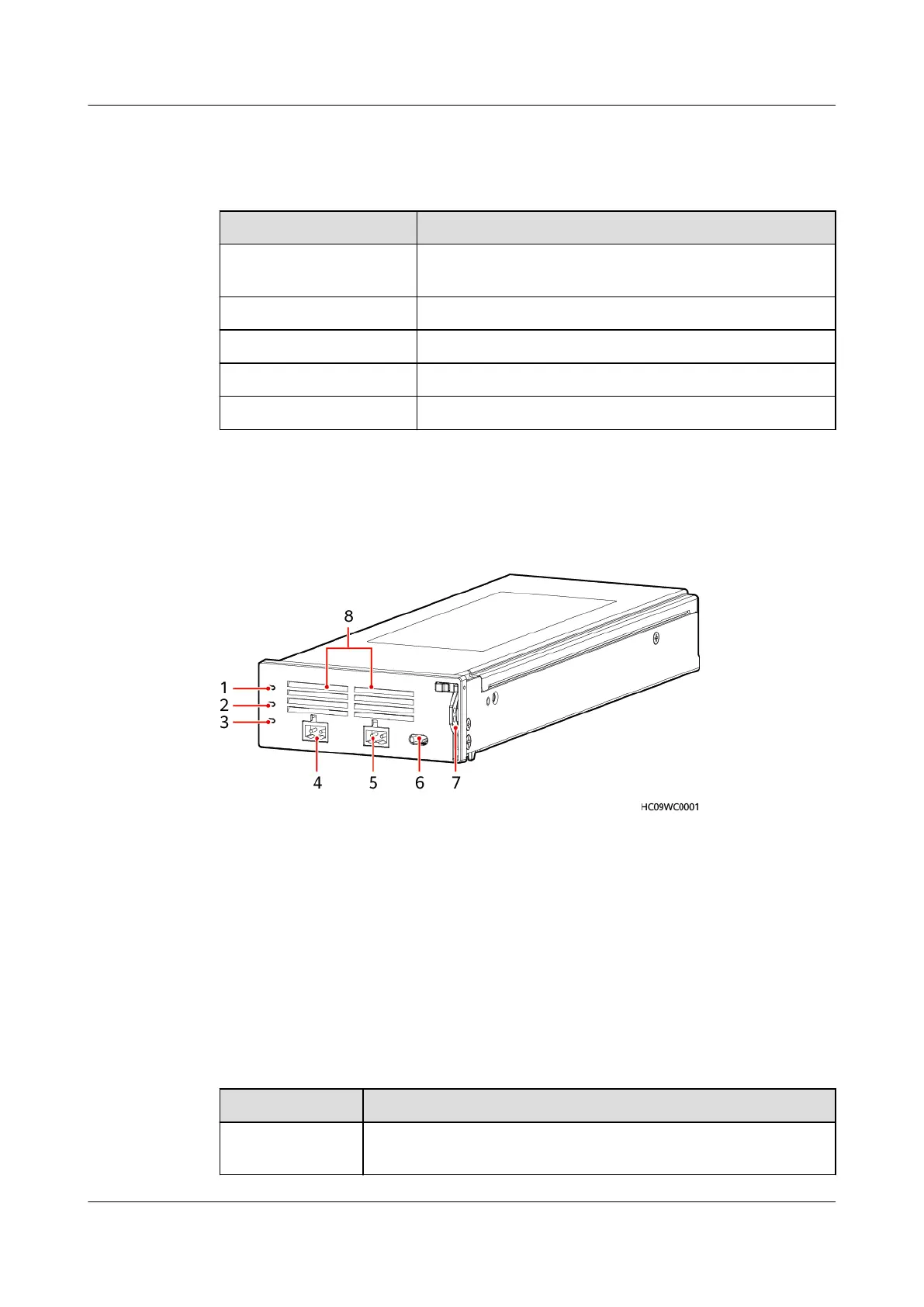

Figure 3-25 BCU-1203A exterior
(1) Power indicator
(2) Indicator of CAN bus
communication exception and
output current limiting
(3) Fault indicator
(4) DC output port for
supplying power to the DG
battery
(5) Auxiliary DC output port (6) Power switch
(7) Handle (8) Air intake vent
Function
Table 3-24 BCU-1203A function description
Function
Description
DC-DC
conversion
Converts –48 V DC into 12 V DC to charge the DG battery.
