No. Item Color Status Description
2 Alarm
indicator
(ALM)
Red Reserved
3 4G
indicator
(4G)
Green Steady on The dial-up connection is in
the data service state.
Blinking at
intervals of 2s (on
for 0.1s and then
o for 1.9s)
A network has been
registered.
Blinking at
intervals of 2s (on
for 0.1s, o for
0.1s, on for 0.1s,
and then o for
1.7s)
Network search is in progress
or no available network is
found.
Ports

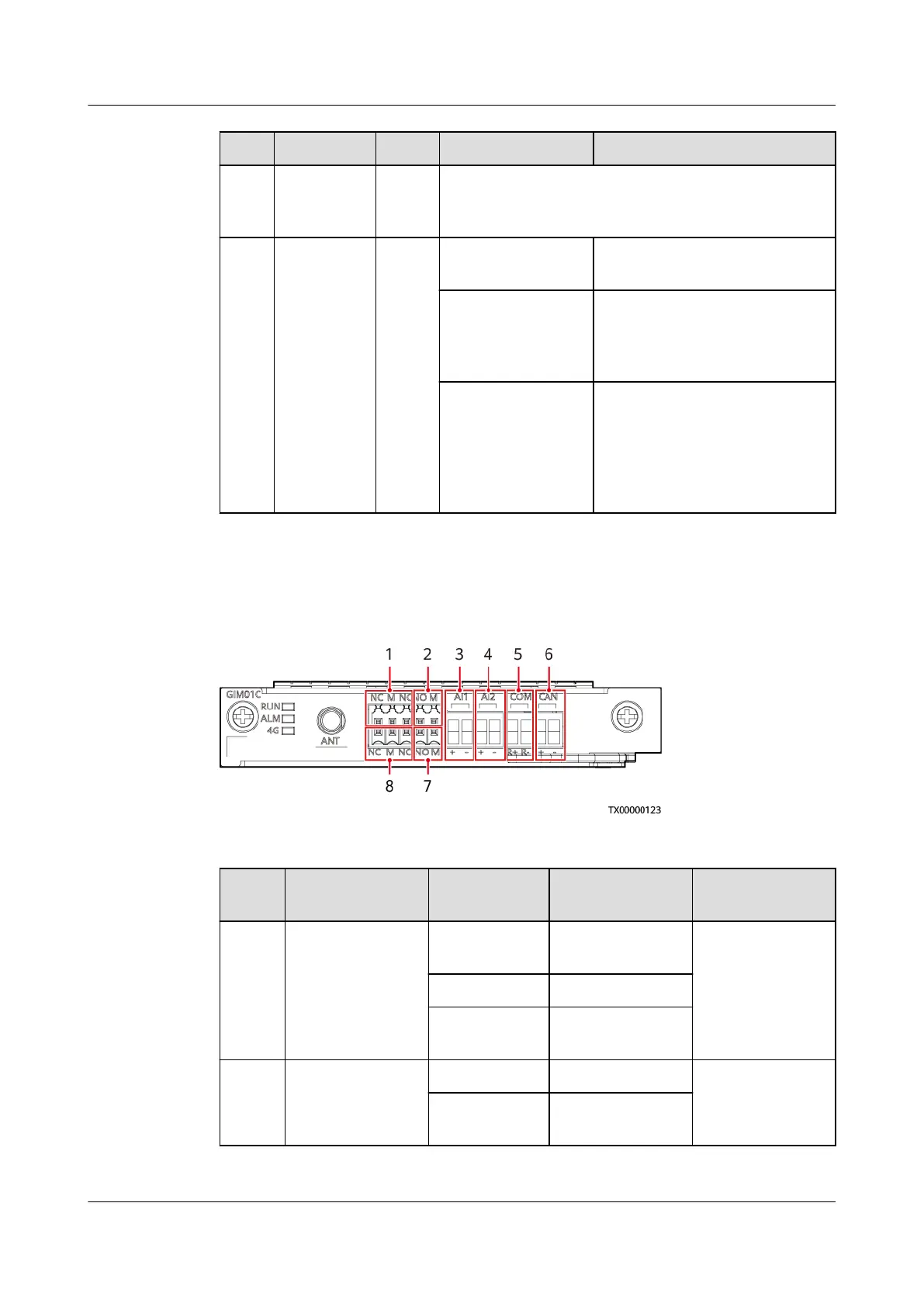

Figure 3-34 Ports on the GIM01C2
Table 3-40 Port description
No.
Port Type Silk Screen Port
Description
Description
1 and
8
Genset control
port
NC DO normally
closed port
Control genset
startup and
shutdown.
M Common port
NO DO normally
open port
2 and
7
Genset reset
port
M Common port The genset
resets if the
ports are closed.
NO DO normally
open port
