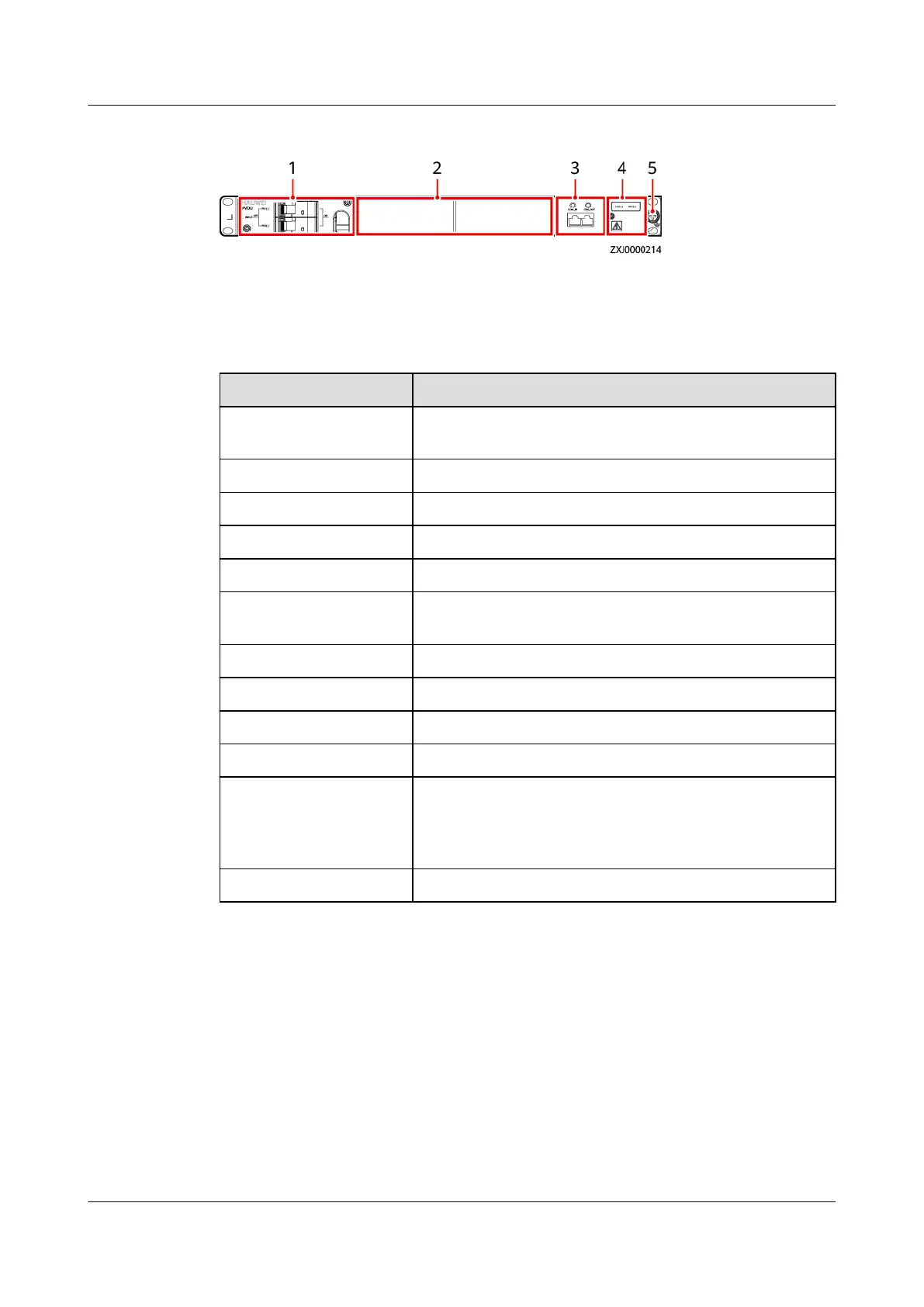

Figure 3-38 PVDU-150A1 interior
(1) Solar input circuit breakers (2) Space for SSUs (3) Network ports
(4) DC output wiring terminal (5) Ground screw
Table 3-42 PVDU-150A1 technical specications
Item Specications
Dimensions (H x W x
D)
43.6 mm x 482.6 mm x 330 mm (including mounting
ears)
Weight 2.9 kg
Input 60–150 V DC; 2×58A max.
Output 43.2–58V DC; rated value: 48 V DC; 150A max.
Installation mode Installed in a 19-inch rack
Cabling mode Routed in from the left and right and routed out from
the front
Maintenance mode Maintained from the front
Operating temperature –20°C to +65°C
Storage temperature –40°C to +70°C
Operating humidity 5%–95% RH (non-condensing)
Altitude 0–4000 m. (When the altitude ranges from 2000 m to
4000 m, high temperature derating applies and the
operating temperature decreases by 1°C for each
additional 200 m.)
IP rating IP20
iSitePower Integrated Smart Site (ICC1000-A1-E1)
User Manual 3 Components
Issue 04 (2022-10-15) Copyright © Huawei Technologies Co., Ltd. 63
