Interior

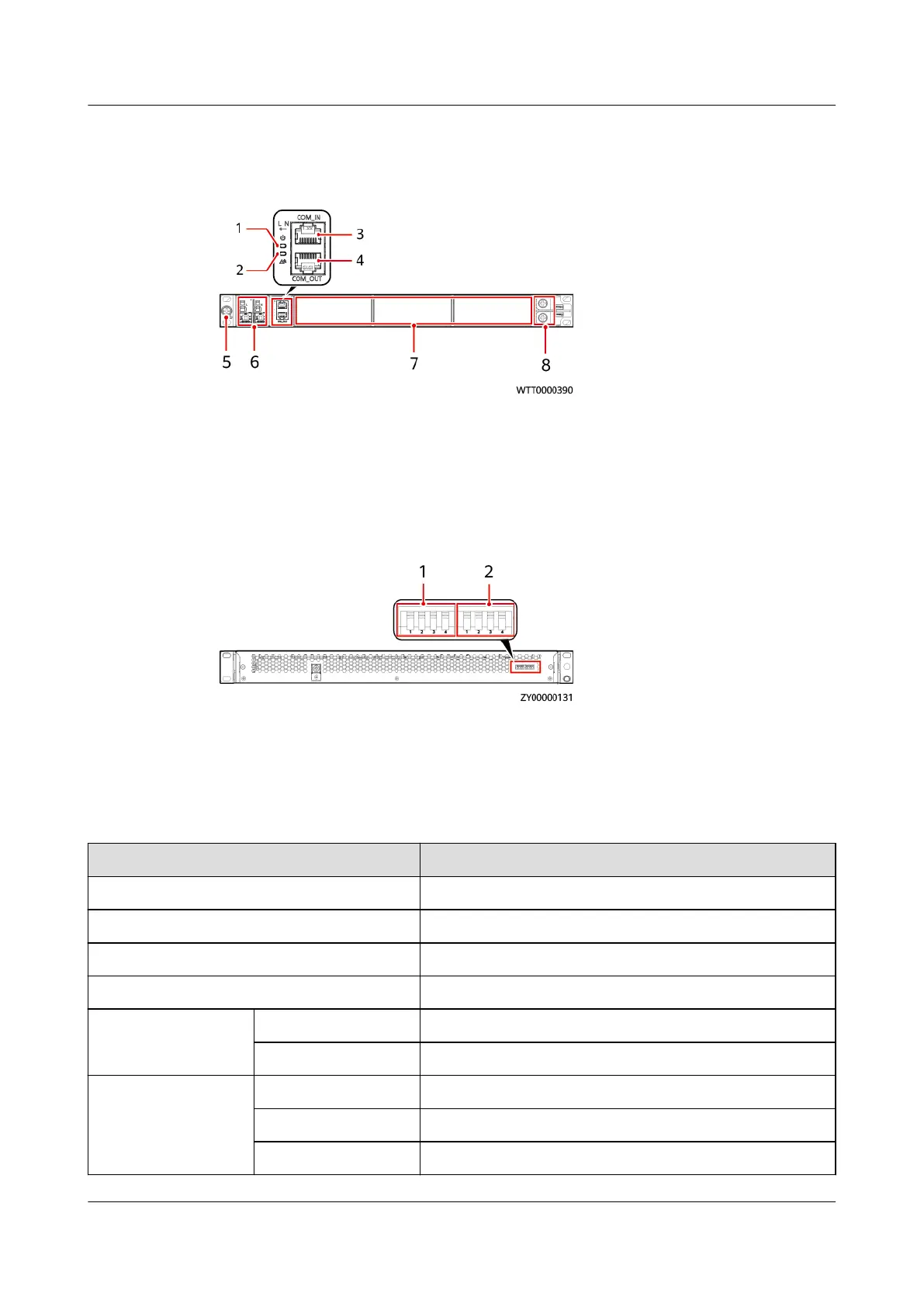

Figure 3-42 ETP23006-C1A1 interior (front view)
(1) Power indicator (2) Fault indicator (3) COM_IN port
(4) COM_OUT port (5) Ground screw (6) AC output circuit breakers
(7) Inverter modules
(I23002G1)
(8) -48 V DC input terminals
Figure 3-43 ETP23006-C1A1 interior (rear view)
(1) First group of DIP switches
(2) Second group of DIP switches
Technical Specications
Table 3-43 Technical specications
Item
ETP23006-C1A1
Dimensions (H x W x D) 43.6 mm x 442.6 mm x 330 mm
Weight 5 kg
Cabling Routed in and out from the front
Rated output capacity 3*2000VA/3*1600W
DC input Rated voltage 53.5 V DC
Rated current 120 A
AC output Output voltage 230 V AC±3%
Output frequency 50Hz±1%
Number of outputs One 63 A AC output (circuit breaker: 63 A/1P x 2)
iSitePower Integrated Smart Site (ICC1000-A1-E1)
User Manual 3 Components
Issue 04 (2022-10-15) Copyright © Huawei Technologies Co., Ltd. 65
