Appearance and Panel

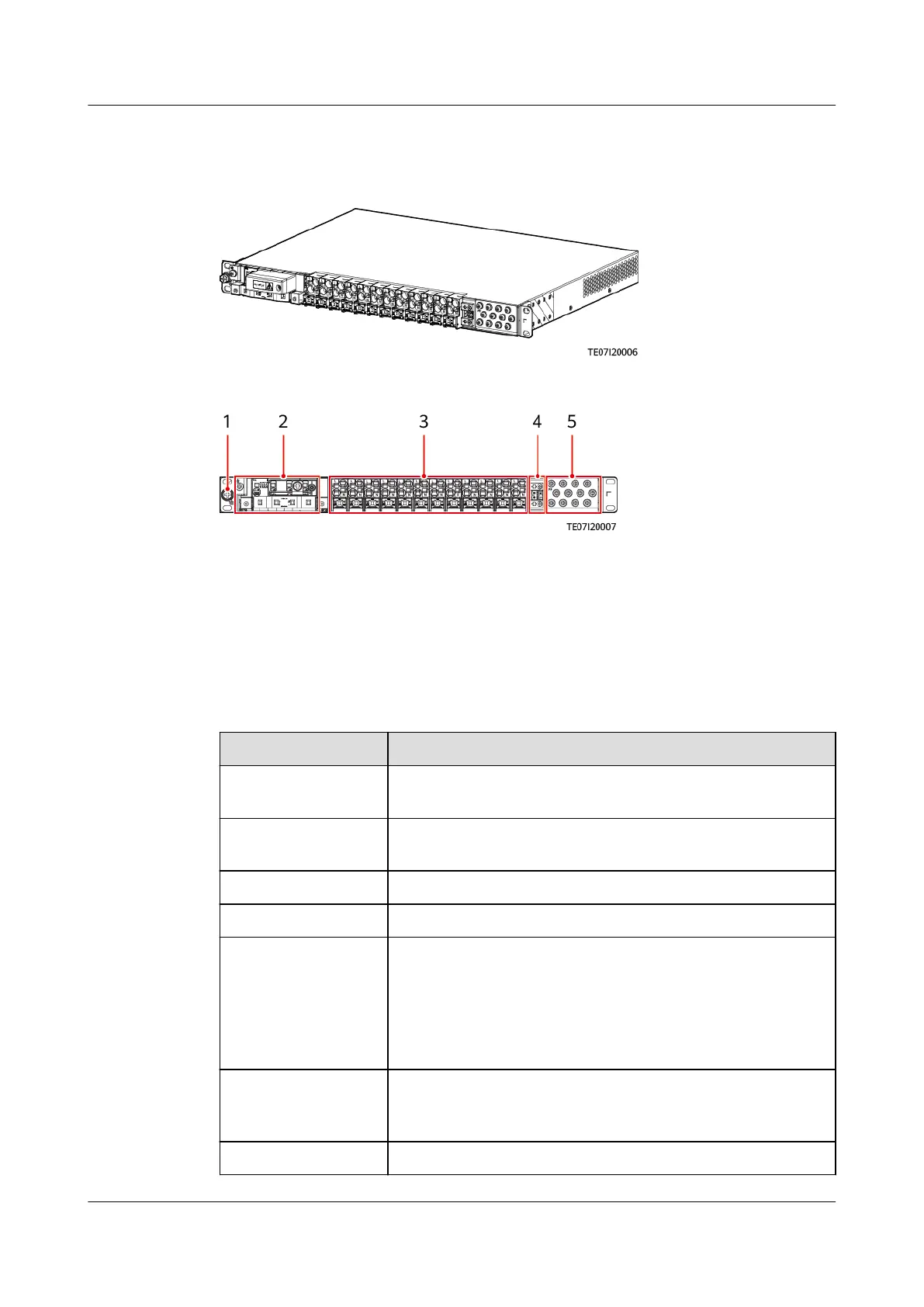

Figure 3-54 Appearance
Figure 3-55
Panel
(1) Ground screw
(2) AC input terminals and
circuit breaker
(3) AC output power
distribution
(4) Surge protection alarm dry
contact
(5) PE cable busbar
Technical Specications
Table 3-56 Technical Specications
Item
Specications
Operating
temperature
–40°C to +45°C
Dimensions (H x W
x D)
43.6 mm x 442 mm x 330 mm
Weight 5 kg
Operating voltage 220 V single-phase input, 50/60 Hz
AC power
distribution
● AC input circuit breaker: 1 x 63 A
● AC output circuit breaker: 2 x 32 A, 10 x 16 A
NOTE
When the circuit breaker is switched o, the circuit of the live
wire is disconnected, but the circuit of the neutral wire is not
disconnected.
Surge protection
level
Nominal lightning strike discharge current: 30 kA (8/20
μs); maximum lightning strike discharge current: 60 kA
(8/20 μs)
IP rating IP20
