Huawei TaiShan 2280 V2 User Manual

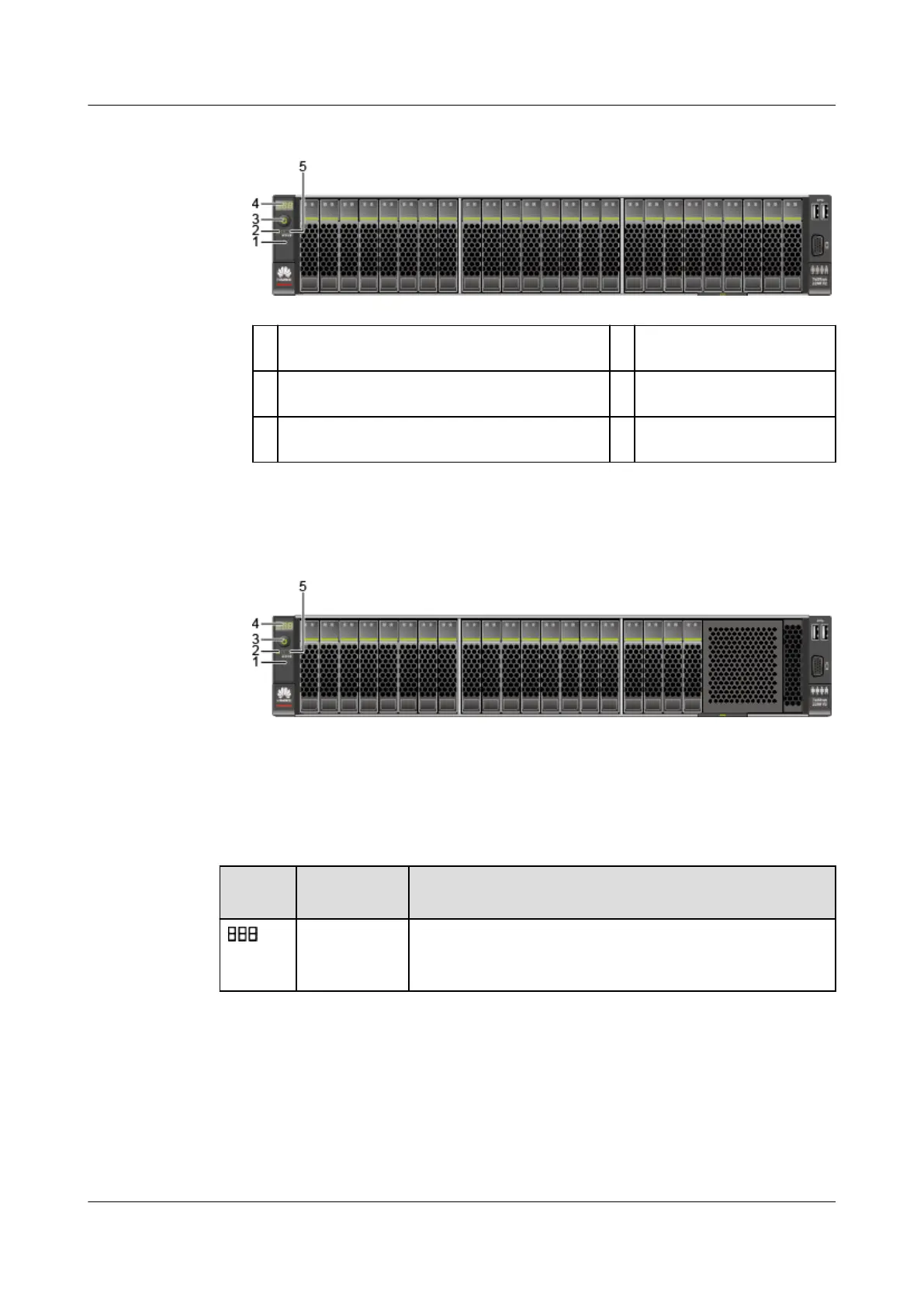

Figure 2-6 Indicators and buttons on the front panel of a server with 25 x 2.5-inch drives
1 UID button/indicator 2 Health indicator
3 Power button/indicator 4 Fault diagnostic LED
5 FlexIO presence indicators (1 and 2) - -
l Figure 2-7 shows the indicators and buttons on the front panel of a server with 8 x 2.5-
inch SAS/SATA drives and 12 x 2.5-inch NVMe SSDs.
Figure 2-7 Indicators and buttons on the front panel of a server with 8 x 2.5-inch SAS/
SATA drives and 12 x 2.5-inch NVMe SSDs
1 UID button/indicator 2 Health indicator
3 Power button/indicator 4 Fault diagnostic LED
5 FlexIO presence indicators (1 and 2) - -
Table 2-3 Indicators and buttons on the front panel
Silkscre
en
Indicator/
Button
State Description
Fault
diagnostic
LED
l ---: The server is operating normally.
l Error code: A server component is faulty.
TaiShan 2280 V2 Server
User Guide
2 Components
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 6
