Configure Controls for Mechanized Cutting
6
102 809240 Operator Manual Powermax45 XP

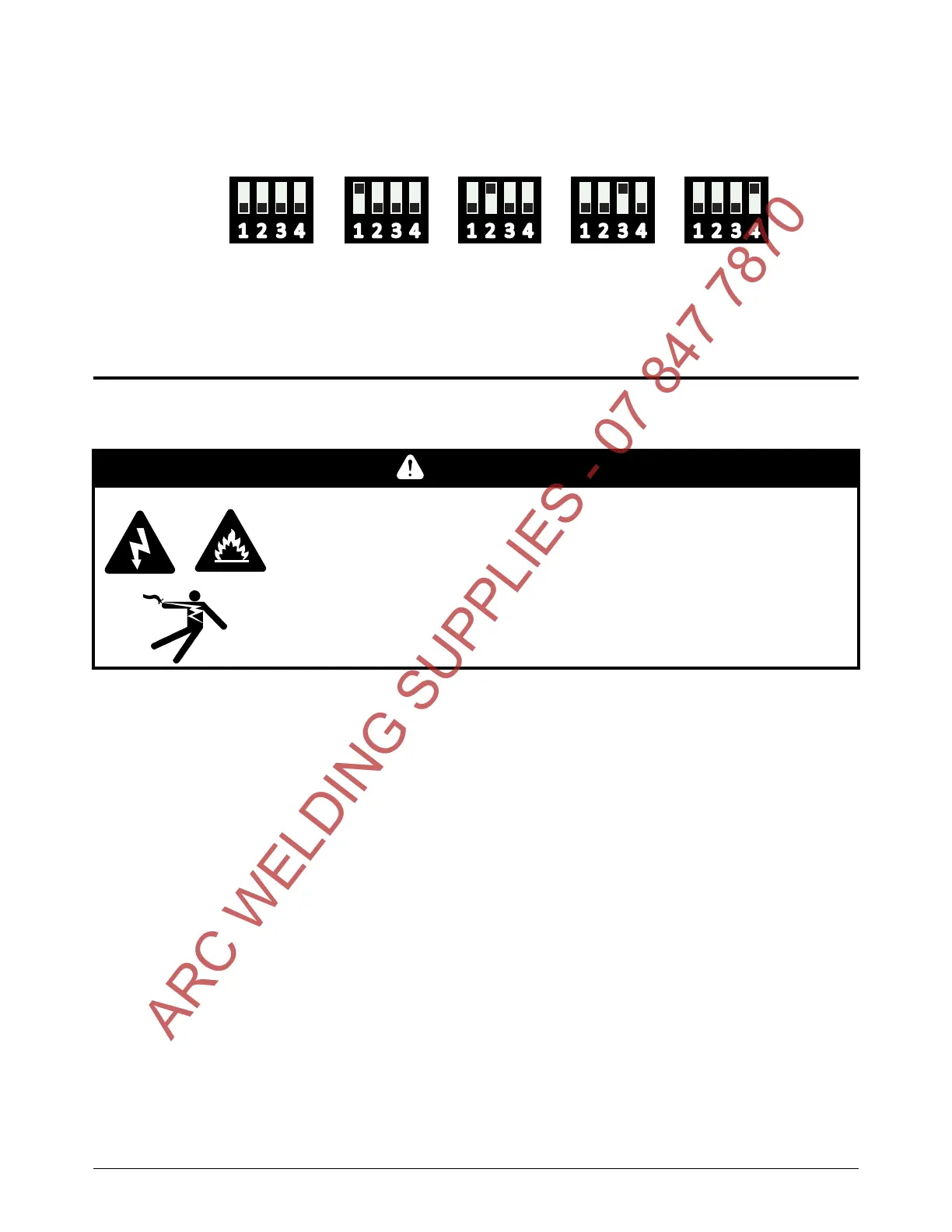

4. Set the DIP switches to one of the following settings and replace the power supply cover.
If the Hypertherm 5-position voltage divider does not supply the required voltage for your
application, contact your system integrator for assistance.
Access raw arc voltage
To access divided raw arc voltage, refer to Field Service Bulletin 809520.
20:1 21.1:1 30:1 40:1 50:1
WARNING
SHOCK HAZARD, ENERGY HAZARD, AND FIRE HAZARD
Connecting directly to the plasma circuit for access to raw arc voltage
increases the risk of shock hazard, energy hazard, and fire hazard in the
event of a single fault. The output voltage and the output current of the
circuit are specified on the data plate.
