Configure Controls for Mechanized Cutting
6
Powermax45 XP Operator Manual 809240 99
External cables that use voltage divider board
To use the built-in voltage divider that provides a scaled down arc voltage in addition to signals for
arc transfer and plasma start:
 For wires terminated with spade connectors, use one of the following cables:
 228350 (7.6 m, 25 feet)
 228351 (15 m, 50 feet)
 For a cable with a D-sub connector, use one of the following cables:
 223354 (3.0 m, 10 feet)
 223355 (6.1 m, 20 feet)
 223048 (7.6 m, 25 feet)
 223356 (10.7 m, 35 feet)
 123896 (15 m, 50 feet)

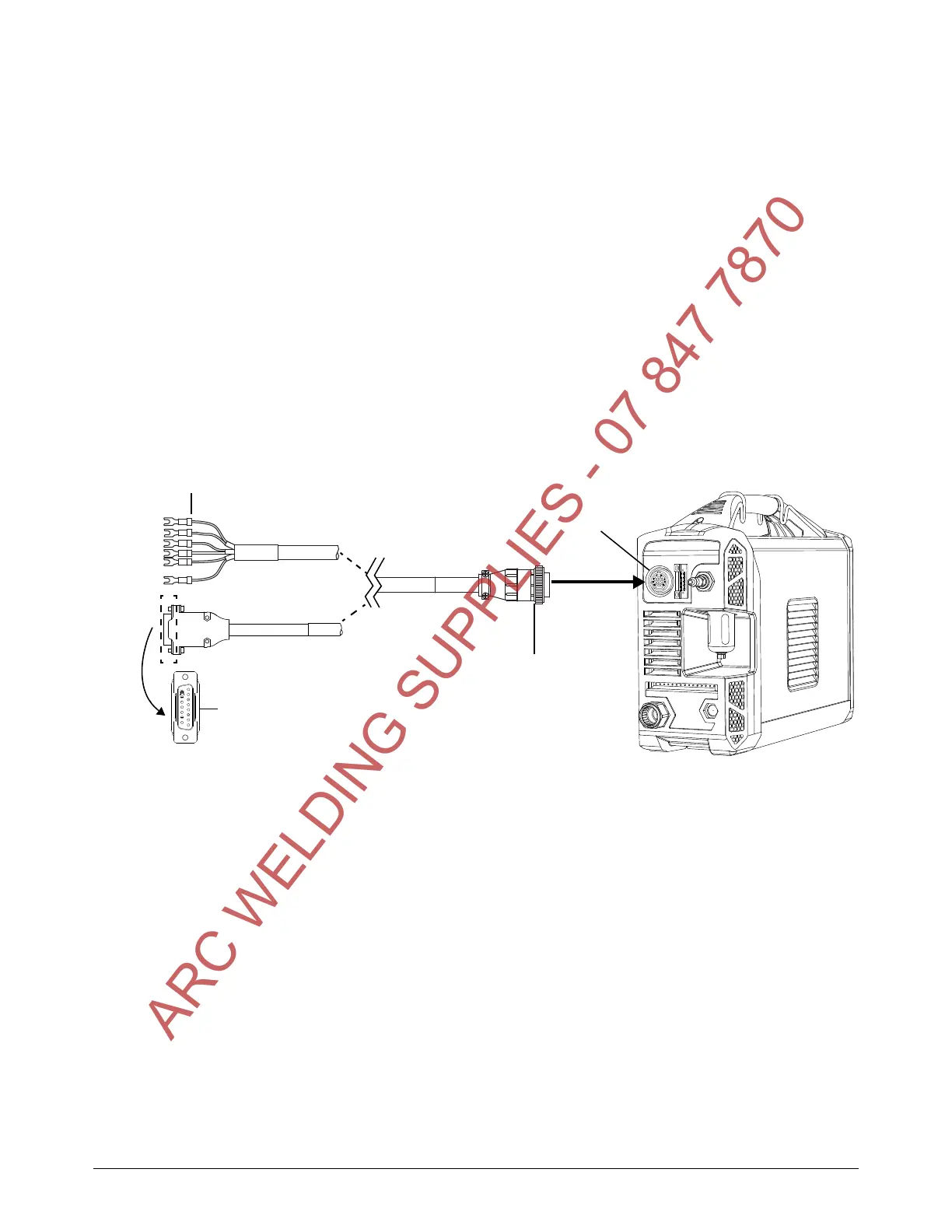

CPC port
CPC connector
D-sub connector
Spade connectors
OR
