Cut with the Hand Torch
3
68 809240 Operator Manual Powermax45 XP
Pierce a workpiece
The hand torch can pierce interior features on metal with a thickness of up to 12 mm (1/2 inch).
The type of pierce to perform depends on the thickness of the metal.
 Straight pierce – To cut metal that is thinner than 8 mm (5/16 inch).
 Rolling pierce – To cut metal that is 8 mm (5/16 inch) or thicker.
1. Attach the work clamp to the workpiece.
2. Straight pierce: Hold the torch perpendicular (90°) to the workpiece.
Rolling pierce: Hold the torch at an approximate 30° angle to the workpiece with the torch tip
within 1.5 mm (1/16 inch) of the workpiece before firing the torch.

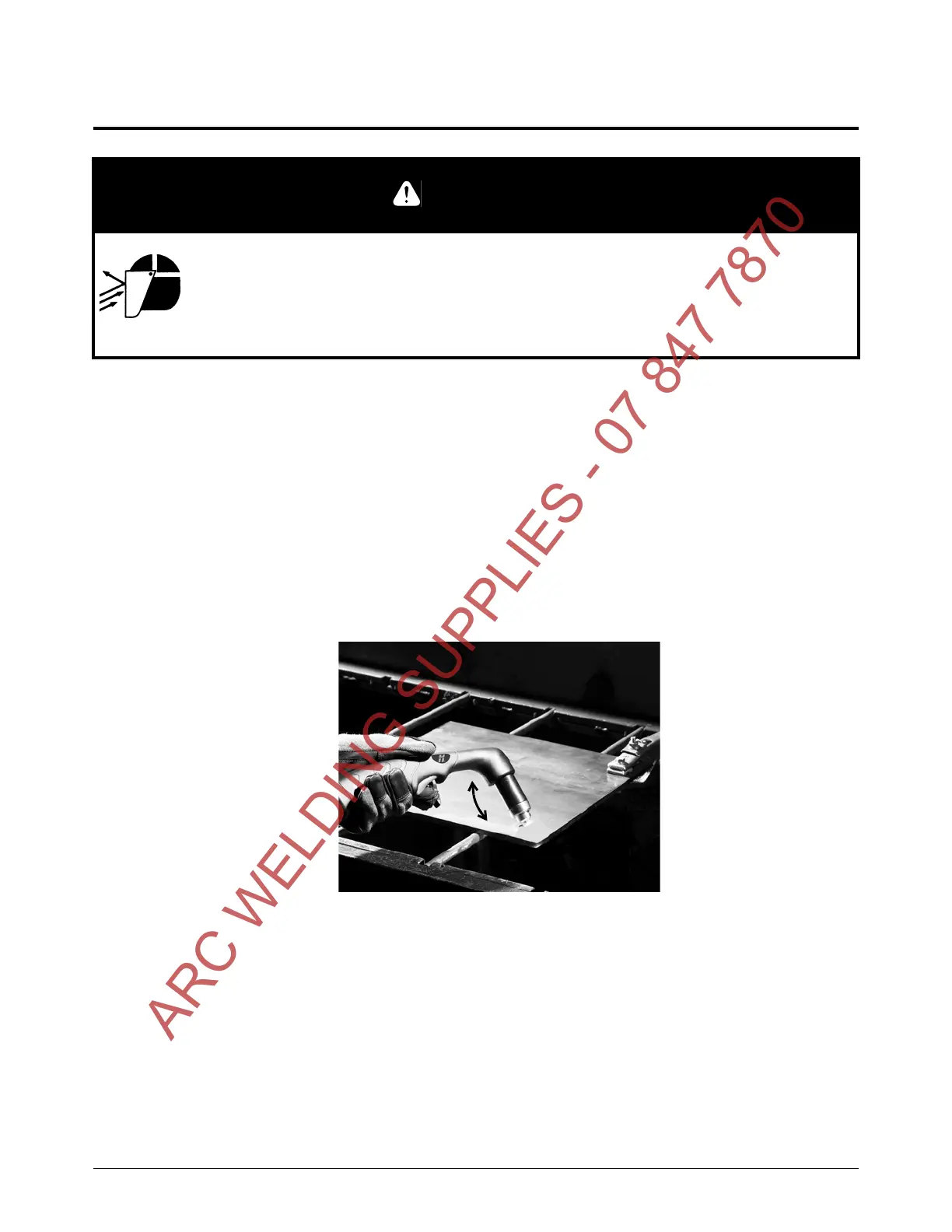

WARNING!
SPARKS AND HOT METAL CAN INJURE EYES AND BURN SKIN
When firing the torch at an angle, sparks and hot metal will spray out from the
nozzle. Point the torch away from yourself and others. Always wear proper protective
equipment including gloves and eye protection.
30° for rolling pierce
