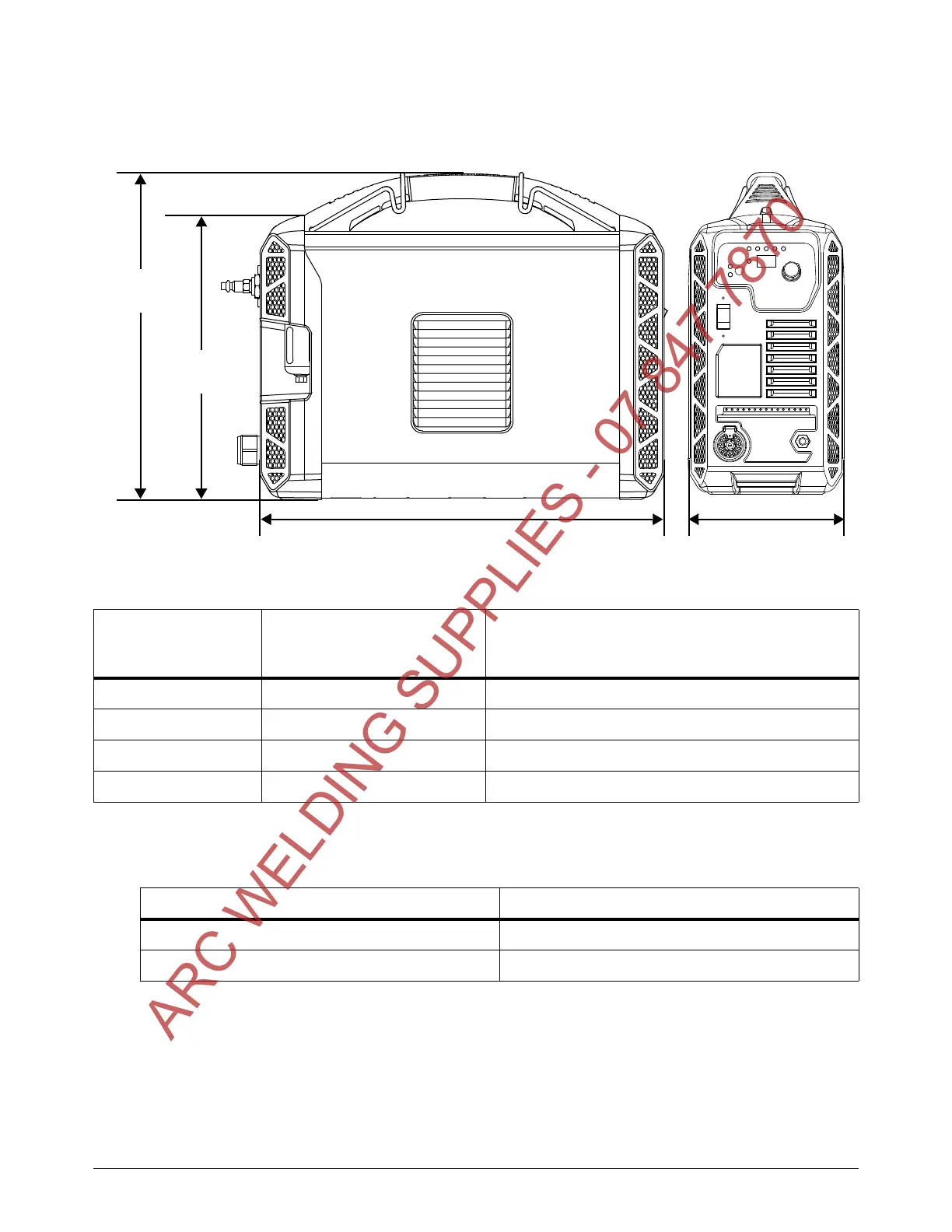

Power supply dimensions and weight
Work lead weights

For hand torch weights, see page 61. For machine torch weights,
seepage89.
Power supply with
power cord
Power supply (and power cord) with
6.1 m (20 foot) hand torch and
7.6 m (25 foot) work lead
200 – 240 V CSA 12 kg (26 pounds) 15 kg (33 pounds)
230V CE/CCC 12kg (27pounds) 15kg (33pounds)
400V CE/CCC 11kg (25pounds) 14kg (31pounds)
480V CSA 11kg (25pounds) 14kg (31pounds)
Work lead Weight
Work clamp with 7.6m (25foot) work lead 1.2kg (2.6pounds)
Work clamp with 15 m (50 foot) work lead 2.1 kg (4.7 pounds)
443 mm
(17.4 inches)
173 mm
(6.8 inches)
312 mm
(12.3 inches)
357 mm
14.1 inches)
ARC WELDING SUPPLIES - 07 847 7870

Hypertherm Powermax45 XP Specifications

General

Output Current	10-45 A
Gas Supply	Clean, dry, oil-free air or nitrogen
Torch Style	Handheld or mechanized
Input Voltage	50/60 Hz
Cutting Thickness	12 mm (1/2")
Cutting Capacity	16 mm (5/8 in)
Recommended Gas Inlet Flow Rate/Pressure	6.2 bar
