Powermax45 XP Operator Manual 809240 143
Fault LEDs and fault codes
 Some fault conditions cause one or more fault LEDs to illuminate or blink.
 Other fault conditions display a fault code in addition to the fault LEDs. The fault code
provides additional information when needed to make the source of the problem easier to
identify.

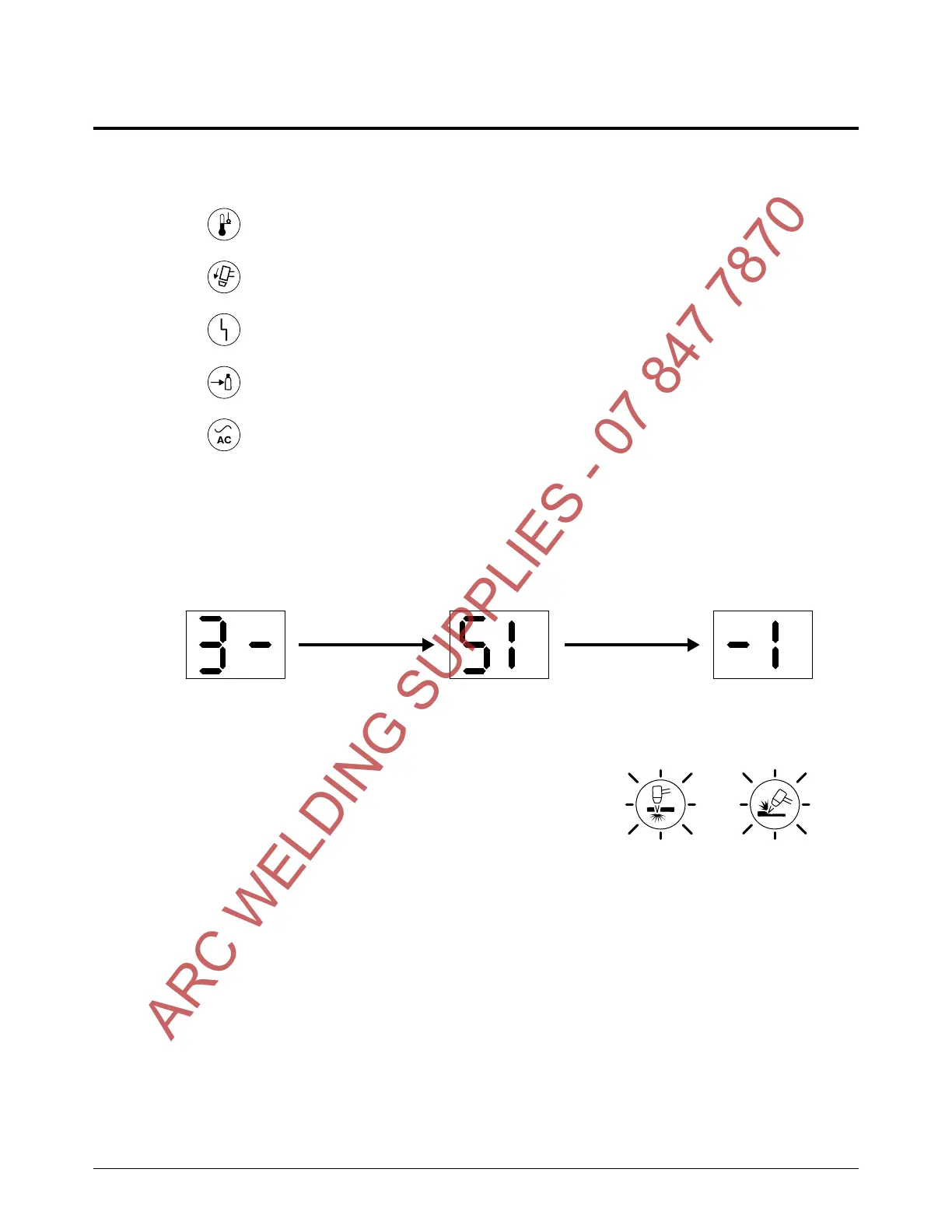

Fault codes follow the format N-nn-n. They blink on the 2-digit display in increments:
 If the Cut Mode LED or the Gouge/Marking Mode
LED blinks, this indicates that the gas pressure has
been manually adjusted. See page 54. It does not
indicate a fault condition. When you reset the gas
pressure to its default setting, the LED stops
blinking. See page 56.
Refer to the following table to identify and troubleshoot each fault condition. A label with
descriptions for several common fault codes can be found inside the front cover of the Operator
Manual. Peel off the label and place it on the power supply or near your work area for reference.
Temperature fault LED (yellow)
Torch Ca p fault LED (yellow)
System Fault LED (yellow)
Gas Pressure fault LED (yellow)
Power ON LED (green)
N- -nnn
