Hypertherm Powermax45 XP User Manual

Set Up the Machine Torch
5
Powermax45 XP Operator Manual 809240 89
Weights
Mount the torch
The machine torch can be mounted on a wide variety of X-Y tables, track burners, pipe bevelers, and
other equipment. Install the torch per the table or equipment manufacturer’s instructions.
If your cutting table’s track is large enough for you to route the torch through it without removing the
torch shell, do so and then attach the torch to the lifter per the manufacturer’s instructions.

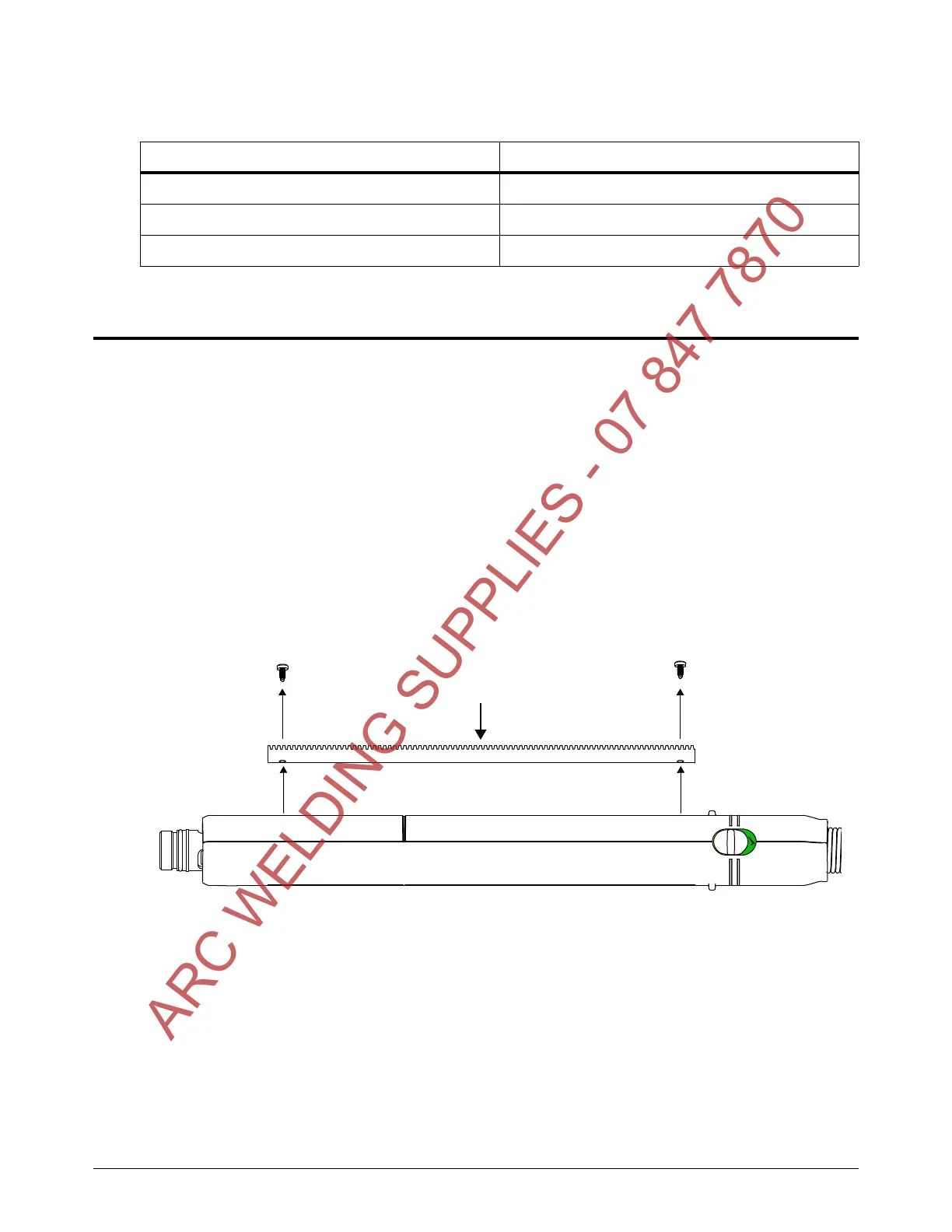

Remove the gear rack
The gear rack can be mounted on either side of the torch. If you need to remove the gear rack,
remove the 2 screws that secure the rack to the torch shell.

When you install the gear rack, tighten the screws by hand. To avoid
stripping the screws, do not overtighten.
Torch Weig ht
Machine torch with 7.6 m (25 foot) lead 3.2 kg (7.1 pounds)
Machine torch with 10.7 m (35 foot) lead 4.2 kg (9.3 pounds)
Machine torch with 15 m (50 foot) lead 5.8 kg (12.7 pounds)
Gear rack
ARC WELDING SUPPLIES - 07 847 7870

Hypertherm Powermax45 XP Specifications

General

Output Current	10-45 A
Gas Supply	Clean, dry, oil-free air or nitrogen
Torch Style	Handheld or mechanized
Input Voltage	50/60 Hz
Cutting Thickness	12 mm (1/2")
Cutting Capacity	16 mm (5/8 in)
Recommended Gas Inlet Flow Rate/Pressure	6.2 bar
