Hypertherm Powermax45 XP User Manual

Installation and Setup
1
24 809240 Operator Manual Powermax45 XP

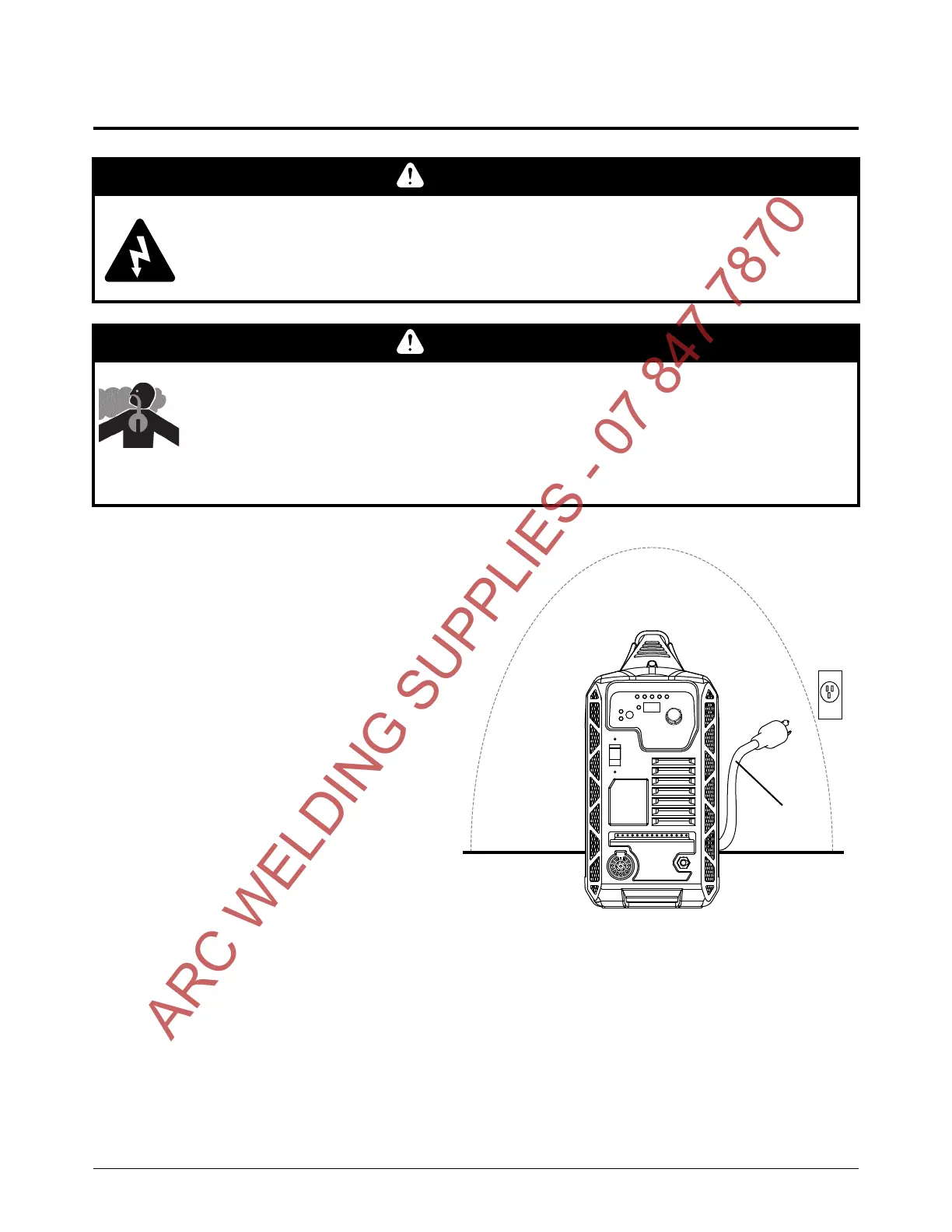

Position the plasma power supply
 Do not use the system in rain or
snow.
 Position the plasma power supply
near an appropriate power
receptacle. Its power cord is
approximately 3.0 m (10 feet).
 Allow at least 0.25 m (10 inches)
of space around the power
supply for proper ventilation.
WARNING
CHANCE OF ELECTRIC SHOCK
Never cut under water or submerge the torch in water. Electric shock can cause
serious injury.
WARNING
TOXIC FUMES CAN CAUSE INJURY OR DEATH
Some metals, including stainless steel, may release toxic fumes when cut. Make sure
your work site has adequate ventilation to ensure that the air quality level meets all
local and national standards and regulations. Refer to the Safety and Compliance
Manual (80669C) for more information.
Clearance:
>0.25m (10inches)
3m (10feet)
ARC WELDING SUPPLIES - 07 847 7870

Hypertherm Powermax45 XP Specifications

General

Output Current	10-45 A
Gas Supply	Clean, dry, oil-free air or nitrogen
Torch Style	Handheld or mechanized
Input Voltage	50/60 Hz
Cutting Thickness	12 mm (1/2")
Cutting Capacity	16 mm (5/8 in)
Recommended Gas Inlet Flow Rate/Pressure	6.2 bar
