Hypertherm Powermax45 XP User Manual

Gouge with the Hand Torch and Machine Torch
4
Powermax45 XP Operator Manual 809240 81

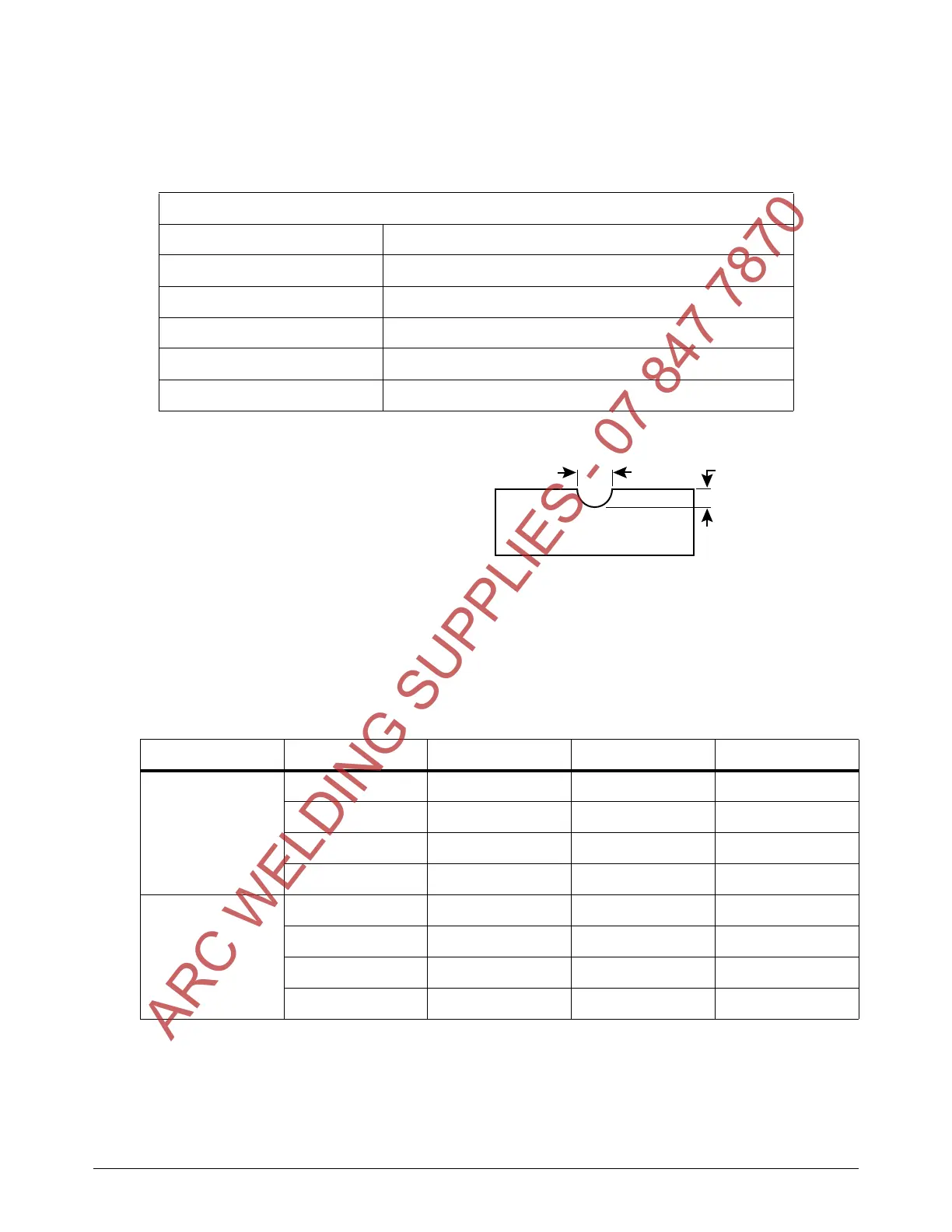

Typical gouge profiles
Maximum Control gouging consumables (45 A)
The following tables show the 45 A gouging profile at 40° and 50° on mild steel and stainless steel.
These settings are intended to serve as a starting point to help you determine the best gouging
profile for a given cutting job. Adjust these settings as needed for your application and table to
obtain the desired result.
Table 2 – Mild steel (Metric)
Operating parameters
Speed 254–1016mm/min (10–40in/min)
Standoff 6mm (1/4inch)
Angle 40° – 50°
Output current 26 – 45 A
Consumables Maximum Control gouging consumables
Gas Air
45 A
Metal removal rate on mild steel:
3.4 kg/hour (7.5 pounds/hour)
Depth
3.2 mm (0.1 inch)
Width
6.8 mm (0.3 inch)
Torch angle Speed (mm/min) Depth (mm) Width (mm) Width/depth ratio
40°
254 4.6 8.4 1.83
508 3.2 6.8 2.13
762 1.9 5.9 3.11
1016 1.4 5.2 3.71
50°
254 5.0 6.7 1.34
508 3.4 5.2 1.53
762 2.7 4.9 1.81
1016 2.2 4.6 2.09
ARC WELDING SUPPLIES - 07 847 7870

Hypertherm Powermax45 XP Specifications

General

Output Current	10-45 A
Gas Supply	Clean, dry, oil-free air or nitrogen
Torch Style	Handheld or mechanized
Input Voltage	50/60 Hz
Cutting Thickness	12 mm (1/2")
Cutting Capacity	16 mm (5/8 in)
Recommended Gas Inlet Flow Rate/Pressure	6.2 bar
