Guidelines for Marking
You can use the Marking consumables on the Duramax Lock machine torch to perform marking,
scoring, and dimpling applications on mild steel, stainless steel, and aluminum using air or argon.

For marking cut charts, refer to page 132 and page 133.

The Marking consumables can also be used on the Duramax Lock hand
torches for hand marking applications.

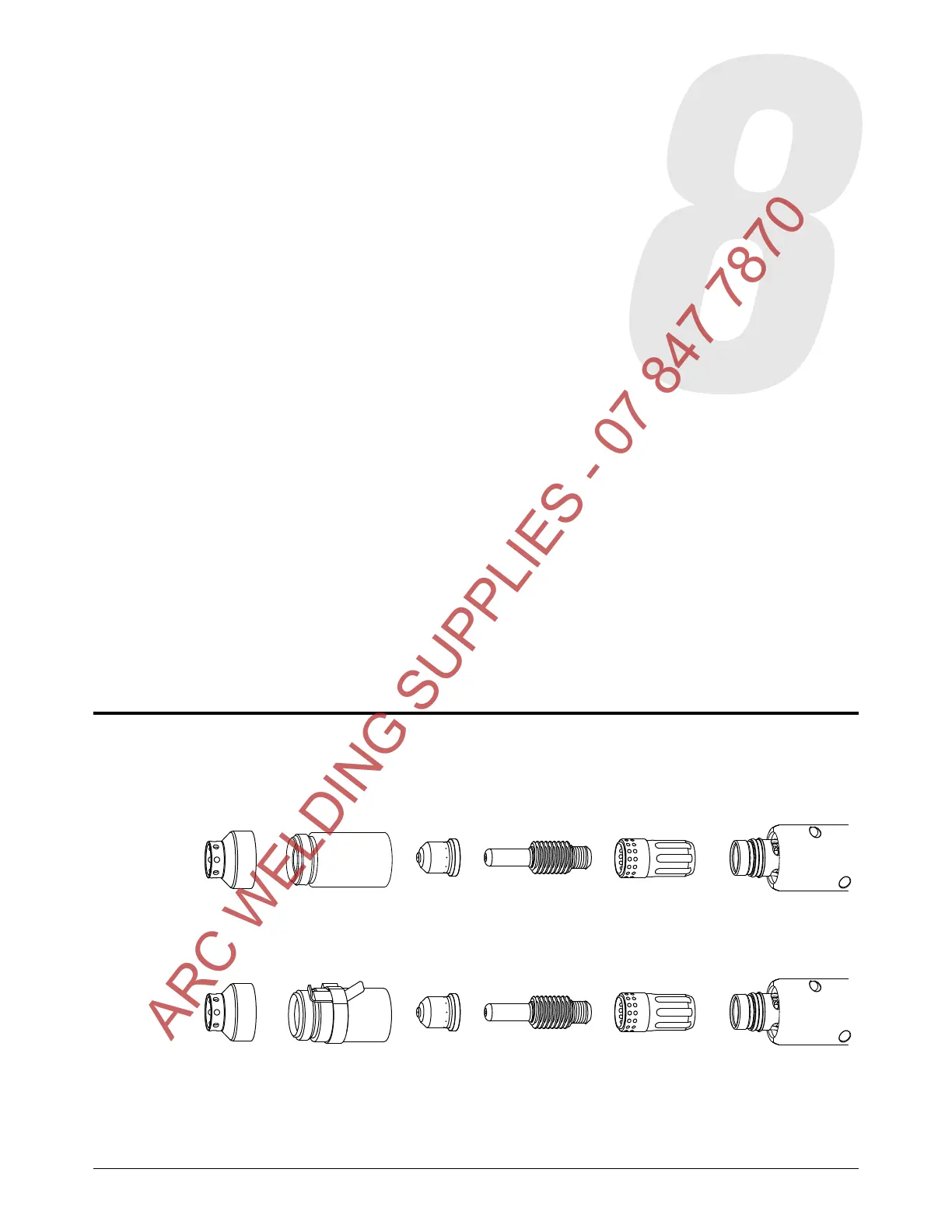

Marking consumables (10 – 25 A)
A maximum output current of 25 A is recommended for marking applications. Using the Marking
consumables at higher amperages can shorten the life of the nozzle. It may also result in deeper
marks than desired and poorer results overall.
420542
Shield
220854
Retaining cap
420415
Nozzle
220842
Electrode
220857
Swirl ring
420542
Shield
220953
Ohmic retaining
cap
420415
Nozzle
220842
Electrode
220857
Swirl ring
