Hypertherm Powermax45 XP User Manual

Installation and Setup
1
20 809240 Operator Manual Powermax45 XP

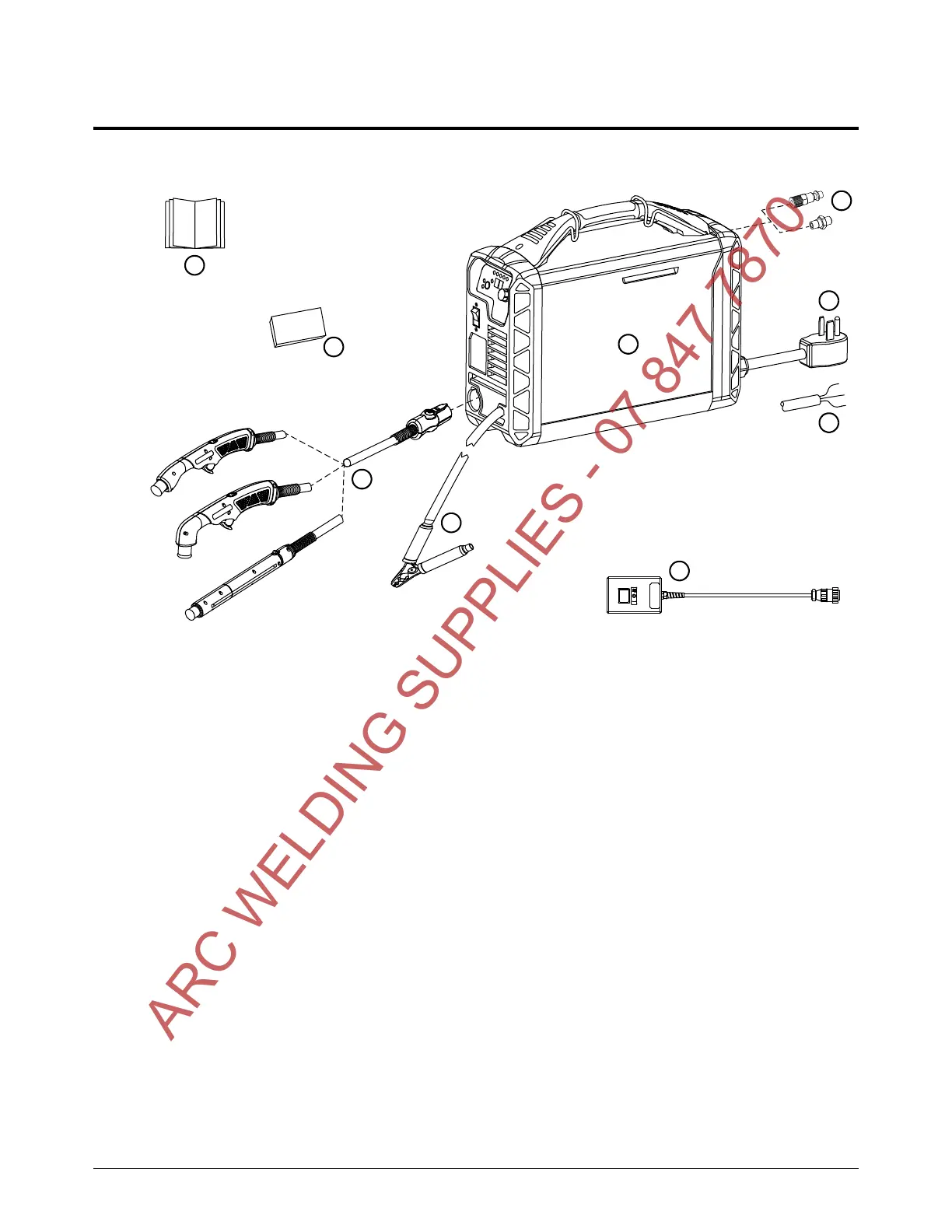

System contents

You can order additional consumables and accessories from any
Hypertherm distributor. See Replacement Parts and Accessories on
page 159.
1
2
3
5
6
7
9
4
8
1 Documentation:
•Operator Manual
•Quick Setup Card
• Registration card
• Safety and Compliance Manual
2 Starter consumable kit
3 15° or 75° hand torch with lead or
machine torch with lead
4 Work clamp with work lead
5 Remote-start pendant (optional – mechanized
configurations only)
6 CE/CCC and 480 V CSA models: power
cord with no power plug
7 CSA 200 V – 240 V models: power cord with
50 A, 250 V plug (NEMA 6-50P)
8 Region-specific gas inlet fitting (may not be
preinstalled)
9 Plasma power supply
ARC WELDING SUPPLIES - 07 847 7870

Hypertherm Powermax45 XP Specifications

General

Output Current	10-45 A
Gas Supply	Clean, dry, oil-free air or nitrogen
Torch Style	Handheld or mechanized
Input Voltage	50/60 Hz
Cutting Thickness	12 mm (1/2")
Cutting Capacity	16 mm (5/8 in)
Recommended Gas Inlet Flow Rate/Pressure	6.2 bar
