Hypertherm Powermax45 XP User Manual

Replacement Parts and Accessories
12
Powermax45 XP Operator Manual 809240 165

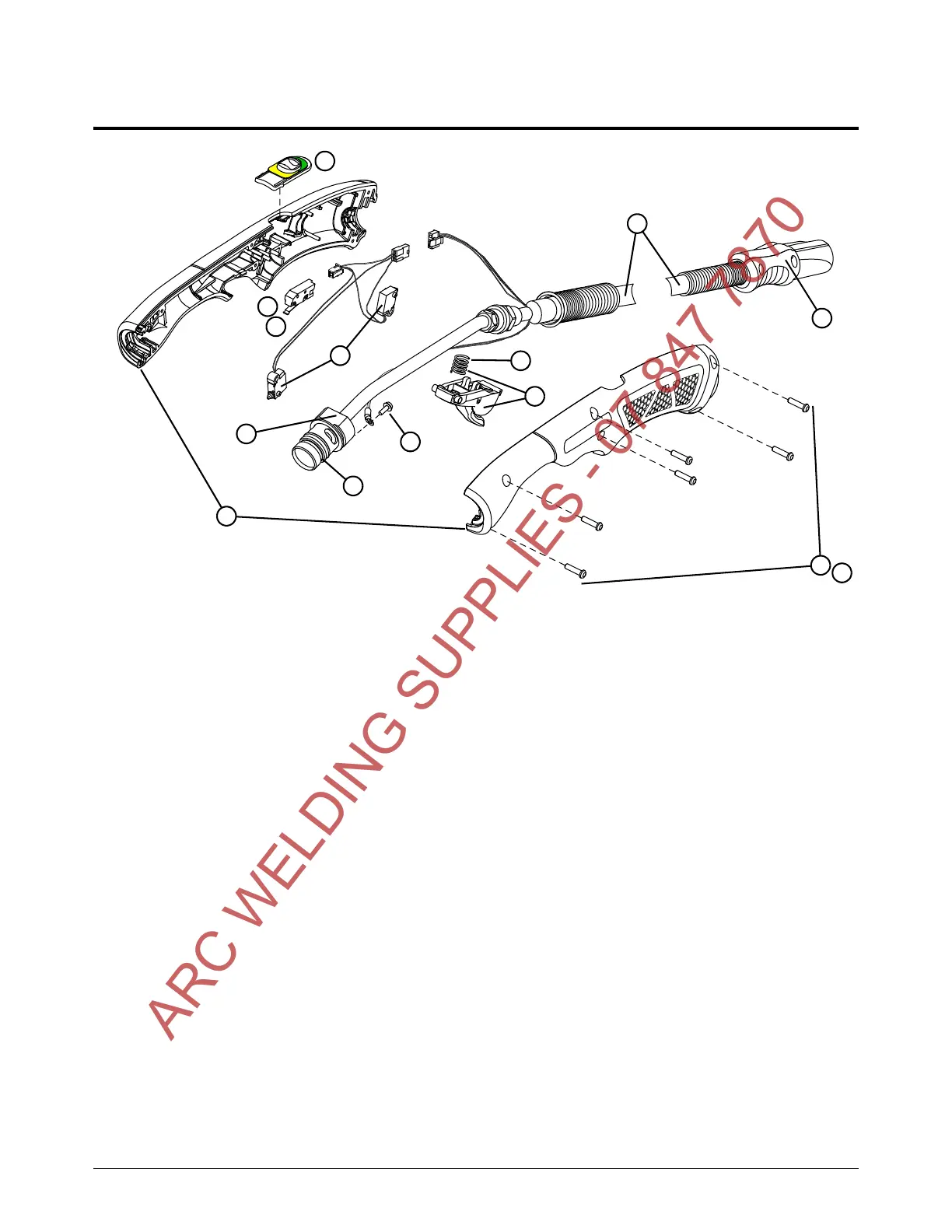

15° hand torch replacement parts
* The torch assembly does not include consumables. See page 61 (cutting) and page 71 (gouging) for
consumable part numbers.
Item Kit number Description
088162* 15° hand torch assembly with 6.1m (20foot) lead
088163* 15° hand torch assembly with 15 m (50 foot) lead
1 428591 Kit: 15° hand torch handle (with screws)
2 428162 Kit: Hand torch start switch
3 428594 Kit: Cap-sensor switch/torch-disable switch assembly for hand torch (includes wires and
connectors)
4 428589 Kit: 15° hand torch main body (with O-ring)
5 428180 Kit: Replacement O-rings for torch body
6 075504 Pilot terminal screw
7 428156 Kit: Hand torch trigger and spring – includes start switch and screws for torch handle
8 428182 Kit: Replacement springs for hand torch trigger
9 428148 Kit: Replacement screws for torch handle
10 228314 Kit: Torch quick-disconnect repair (shell with button – does not include torch lead)
11 428592 Kit: Hand torch lead replacement, 6.1 m (20 foot)
11 428593 Kit: Hand torch lead replacement, 15 m (50 foot)
12 428595 Kit: Torch-disable slider for hand torch (with yellow/green label)
12
1
2
3
4
5
8
9
11
6
7
7
10
7
