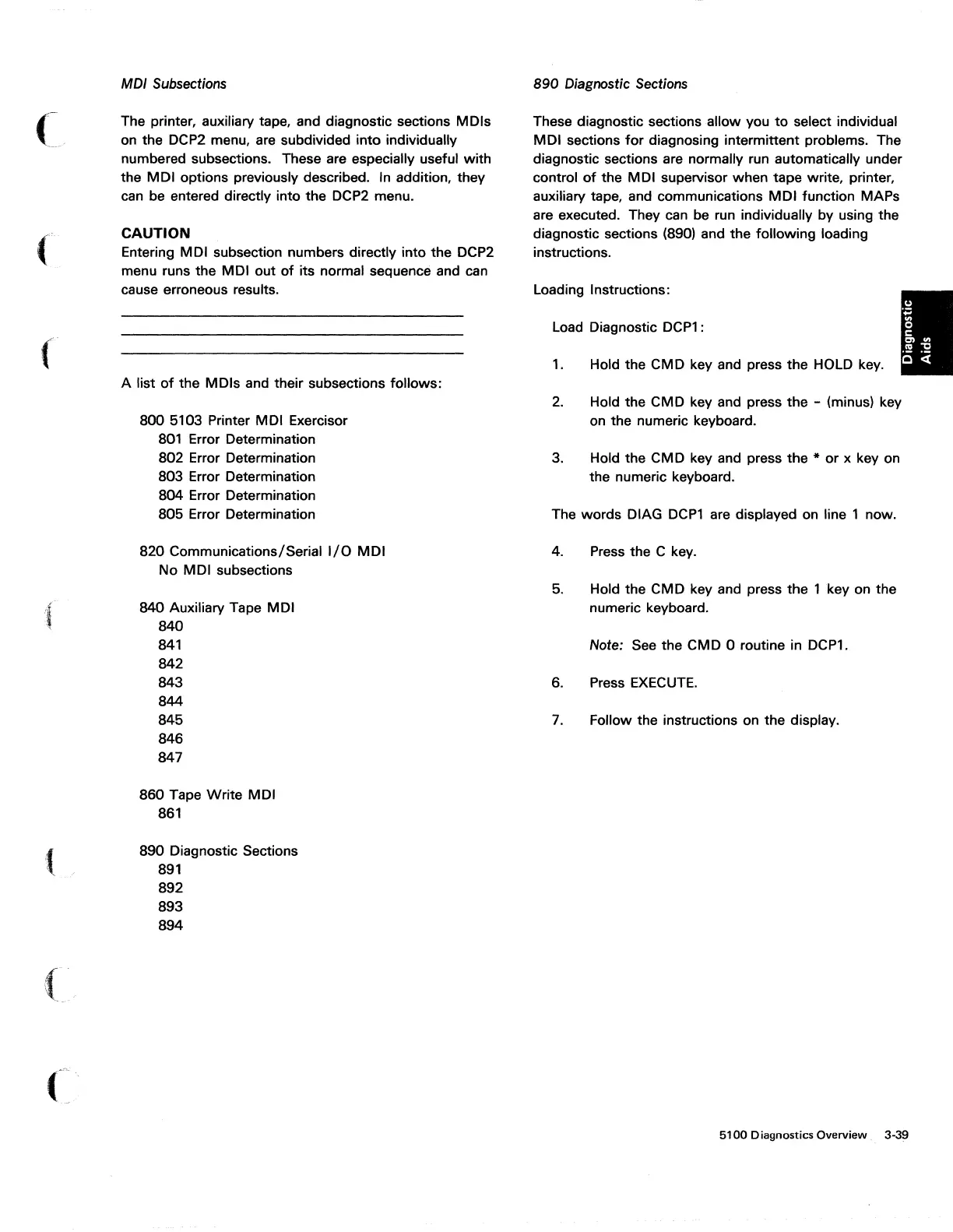

MOl Subsections
The printer, auxiliary tape, and diagnostic sections
MDls
on the DCP2 menu, are subdivided
into
individually
numbered subsections. These are especially useful
with
the
MDI
options previously described.
In
addition, they
can be entered directly into the DCP2 menu.
CAUTION
Entering
MDI
subsection numbers directly into the DCP2
menu runs
the
MDI
out
of
its normal sequence and can
cause erroneous results.
A list
of
the
MDls
and their subsections follows:
800 5103 Printer MDI Exercisor
801
Error Determination
802 Error Determination
803 Error Determination
804 Error Determination
805 Error Determination
820 Communications/Serial
I/O
MDI
No
MDI subsections
840 Auxiliary Tape
MDI
840
841
842
843
844
845
846
847
860
Tape
Write
MDI
861
890
Diagnostic Sections
891
892
893
894
890
Diagnostic Sections
These diagnostic sections allow you
to
select individual
MDI
sections
for
diagnosing intermittent problems. The
diagnostic sections are normally run automatically under
control
of
the
MDI
supervisor when tape write, printer,
auxiliary tape, and communications
MDI
function MAPs
are executed. They can be run individually
by
using the
diagnostic sections (890) and the following loading
instructions.
Loading Instructions:
Load Diagnostic
DCP1
:
1.
2.
3.
Hold the
CMD
key and press
the
HOLD key.
Hold the CMD key and press
the
- (minus) key
on
the numeric keyboard.
Hold the
CMD
key and press
the
*
or
x key on
the numeric keyboard.
The words DIAG
DCP1
are displayed on line 1 now.
4.
Press the C key.
5.
Hold the CMD key and press the 1 key on the
numeric keyboard.
Note: See the CMD 0 routine in DCP1.
6. Press EXECUTE.
7.
Follow the instructions on the display.
5100
Diagnostics
Overview,
3-39
