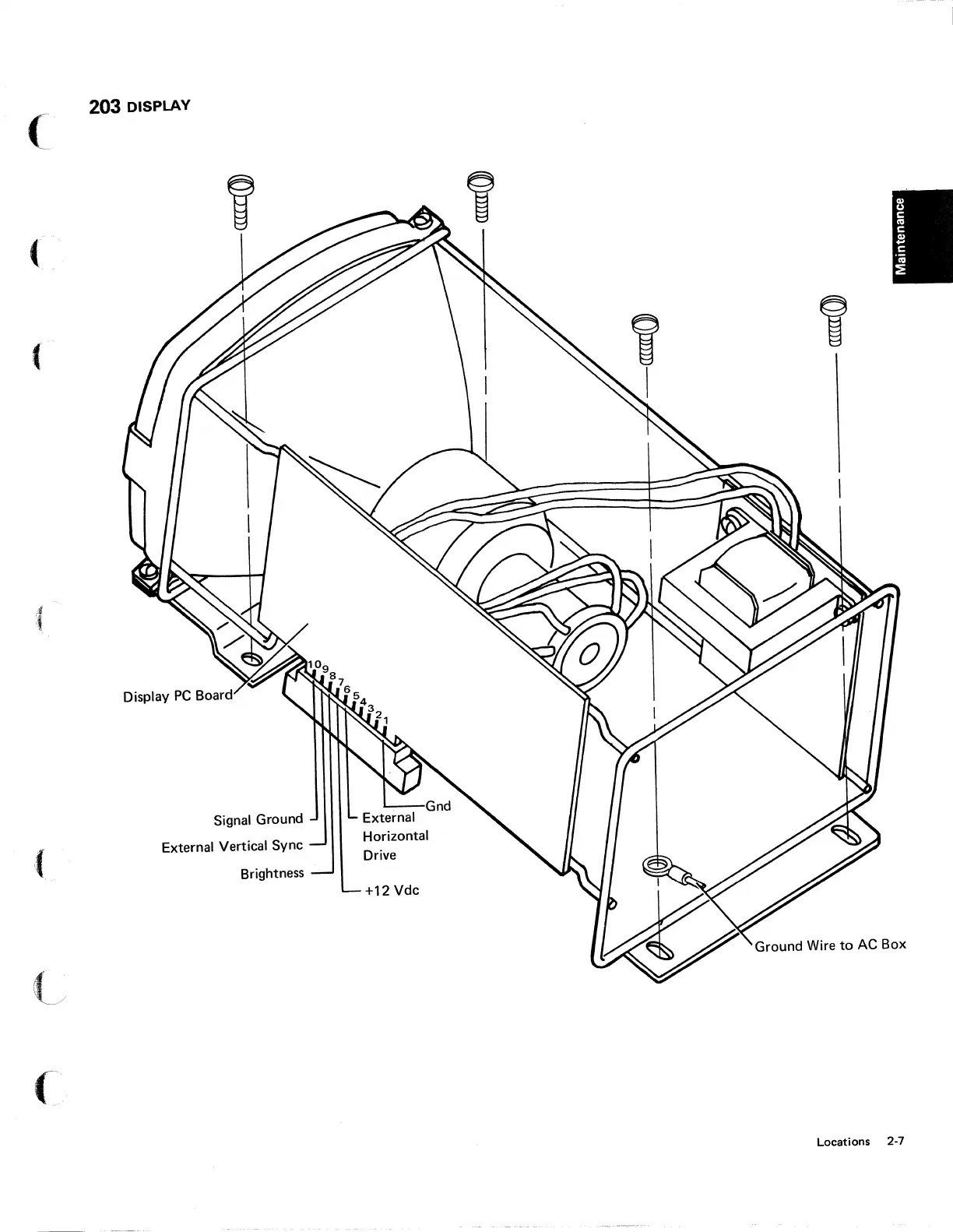

203 DISPLAY
Display
PC
Board
Signal
Ground
External Vertical
Sync
Brightness
Horizontal
Drive
+12
Vdc
i
I
Ground
Wire
to
AC Box
Locations 2-7
