204

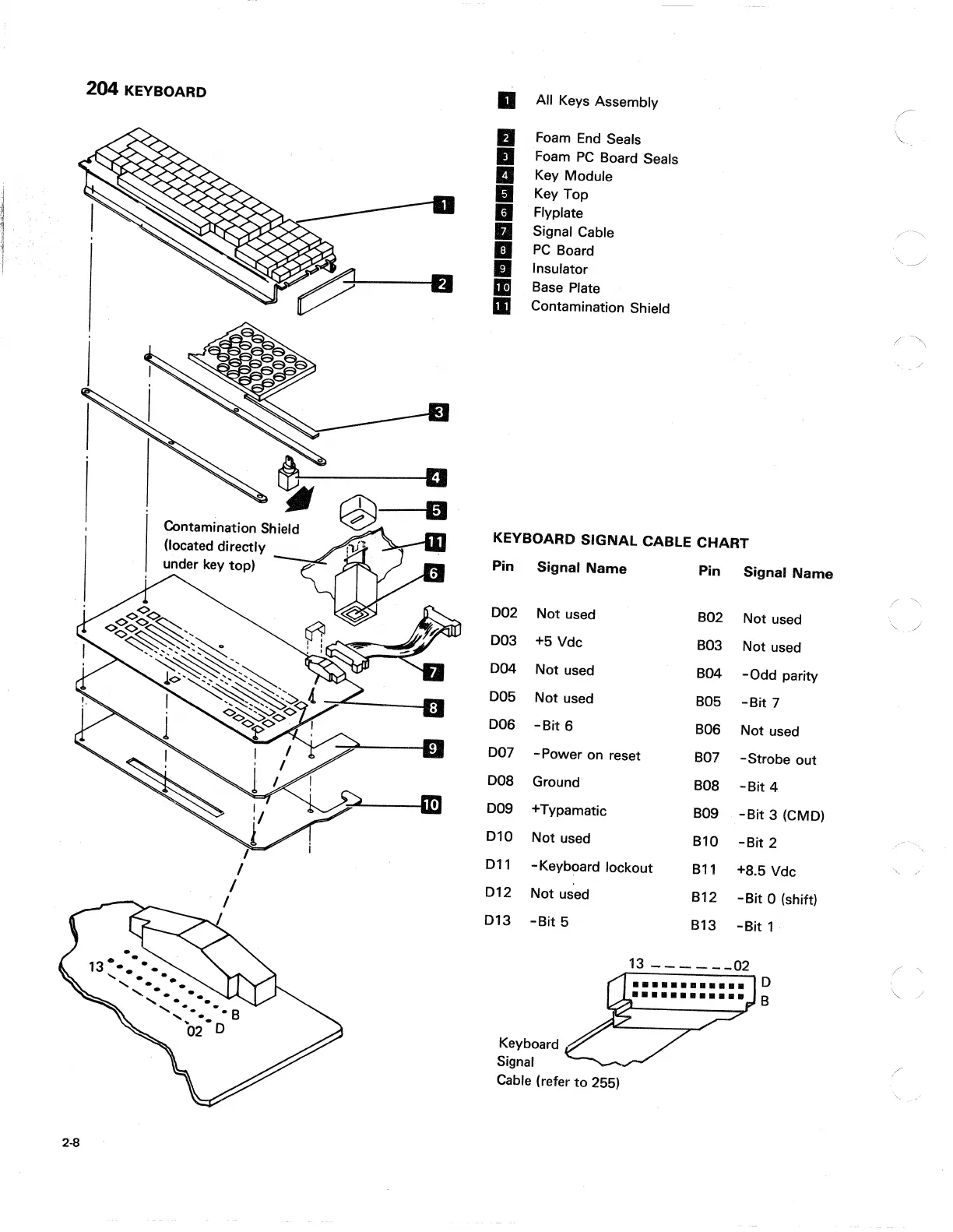

KEYBOARD
•
All Keys Assembly
(
•
Foam
End
Seals
•
Foam
PC
Board Seals
•
Key Module
•
Key Top
II
Flyplate
II
Signal Cable
/---~'"
II
PC
Board
,,,~
II
Insulator
II
Base
Plate
III
Contamination Shield
/
a
KEYBOARD
SIGNAL
CABLE
CHART
Pin
Signal
Name
Pin
Signal
Name
/
"
002
Not used
B02
Not used
"-
./
003
+5 Vdc
B03
Not used
004
Not used
B04
-Odd
parity
005
Not used
B05
-Bit
7
006
-Bit
6
B06
Not used
007
- Power on reset
B07
-Strobe out
DOS
Ground
BOS
-Bit
4
009
+Typamatic
B09
-Bit
3 (CMD)
010
Not used
B10
-Bit
2
011
- Keyboard lockout
B11
+S.5 Vdc
012
Not used
B12
-Bit
0 (shift)
013
-Bit
5
B13
-Bit
1
13
-----_02
;"
"
0
~
/
B
Keyboard
Signal
;"
Cable
(refer
to
255)
