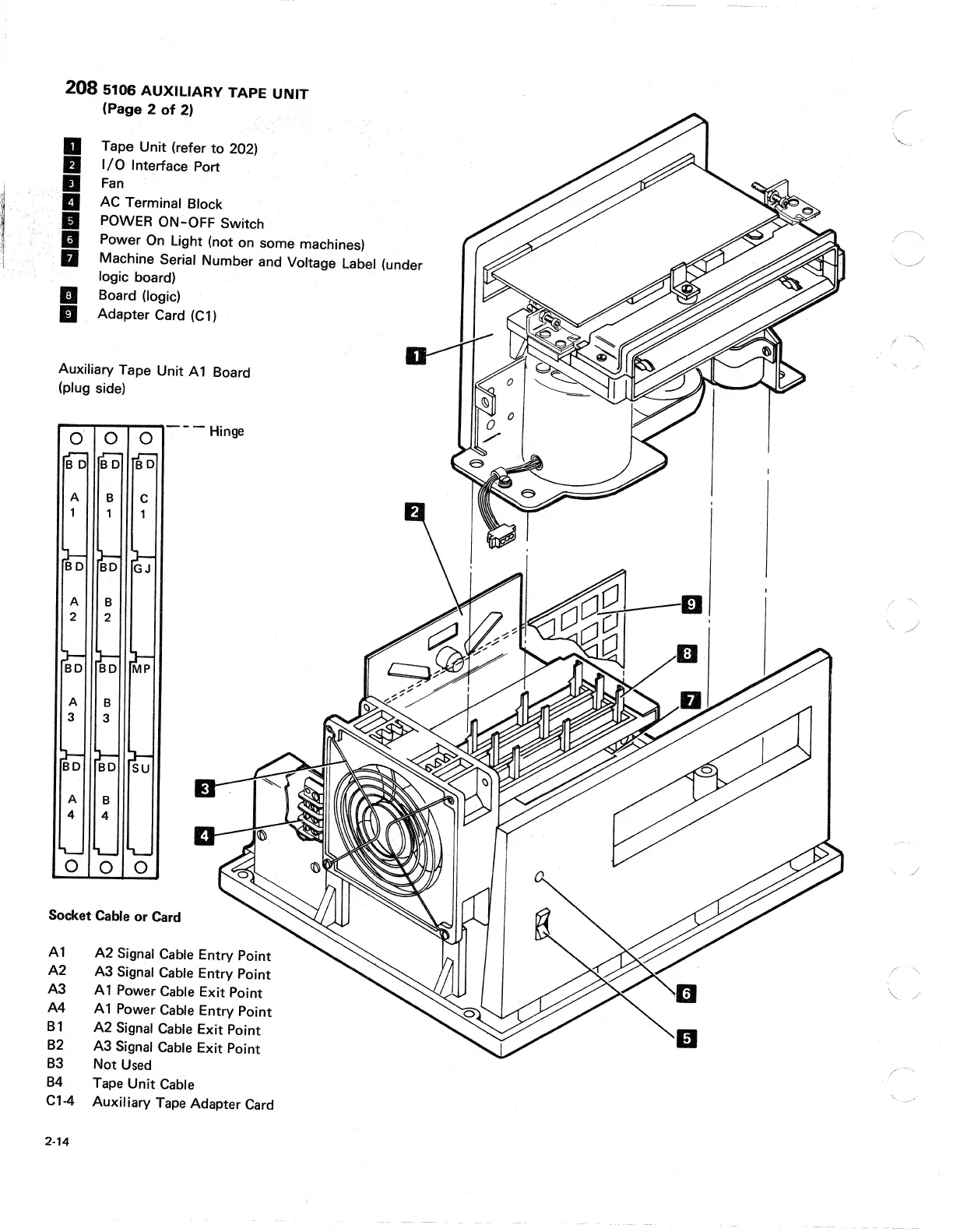

208 5106 AUXILIARY TAPE UNIT
(Page 2 of 2)
D Tape Unit (refer to 202)
II I/O I nterface Port
II Fan
.. AC Terminal Block
II POWER ON-OFF Switch
II Power On Light (not on some machines)
D Machine Serial Number and Voltage Label (under
logic board)
II Board (logic)
II Adapter Card (C1)
Auxiliary Tape Unit A 1 Board
(plug side)
0
0
0
-- Hinge
rSD
rBo Co
A
B
C
1 1
1
>so
~
s
A
B
2
2
~ ~
G
A
B
3
3
~
~
1u
A
B
4
4
""-
"0-
"'L-
0
0
Socket Cable or Card
A 1
A2 Signal Cable Entry Point
A2 A3 Signal Cable Entry Point
A3 A 1 Power Cable
Exit Point
A4 A 1 Power Cable Entry Point
B 1
A2 Signal Cable Exit Point
B2 A3 Signal Cable Exit Point
B3 Not Used
B4 Tape Unit Cable
Cl-4 Auxiliary Tape Adapter Card
2-14
