25 Specify the source device address for the copied data in Display Device Address under Display Method.
For sequential device addresses of the amount of data to copy starting with Destination Device Address
configured on the Options tab on the Data Log Settings Individual Settings dialog box, set Display Device
Address for each Numerical Display to those device addresses.

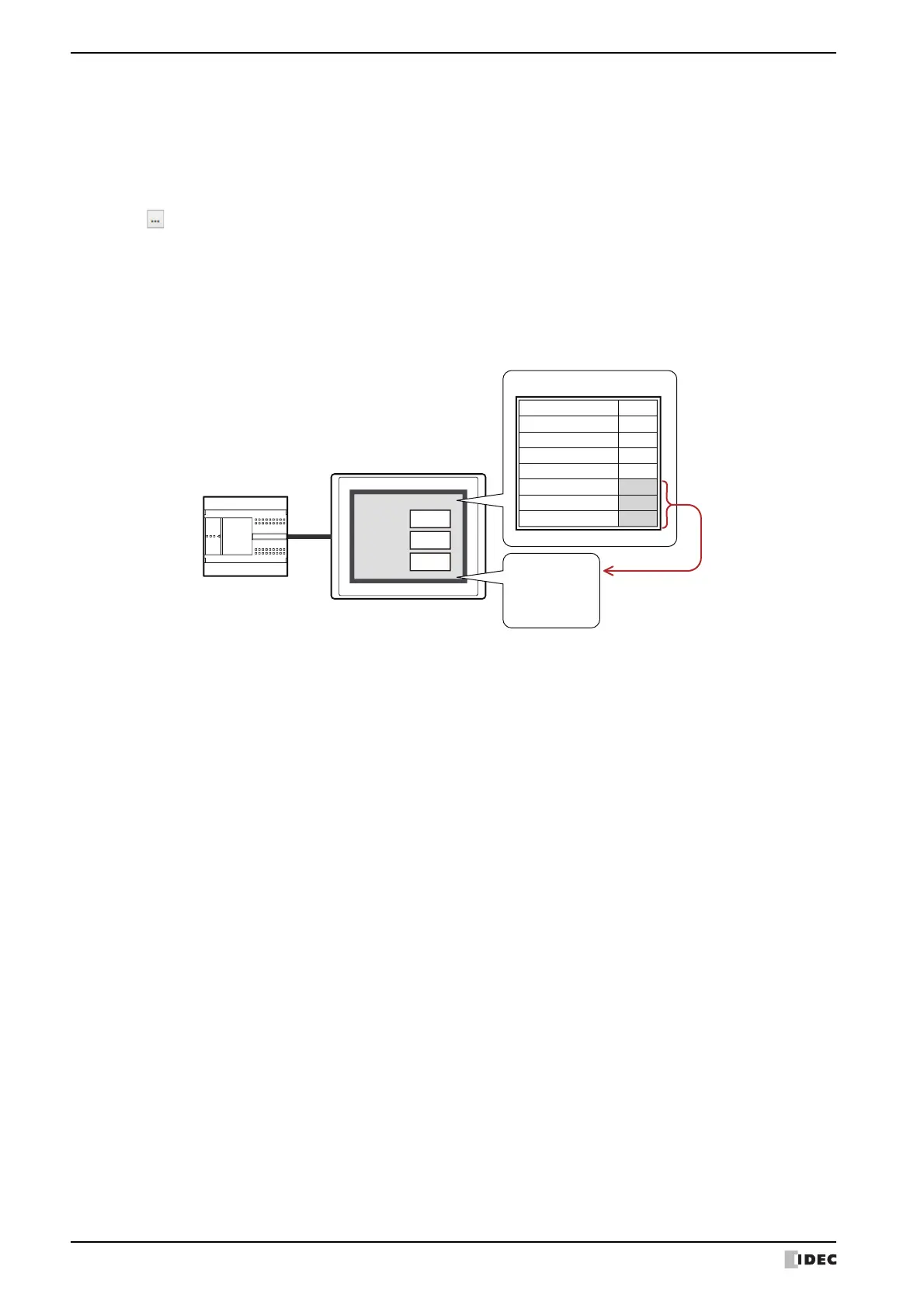

Example: When Destination Device Address is LDR10, Number of Data is 3
Specify three Numerical Displays with Display Device Address specified as LDR10, LDR11, LDR12
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-68.
26 Click OK.
The Properties dialog box closes.
27 Repeat step 19 through 26 to configure the Numerical Displays for the amount of data to copy.
This concludes configuring the Numerical Display.
MICRO/I
External device
(Internal device)
124
125
126
Data Log data
Sampling Time Data001
01/01/2011 12:00:30 120
01/01/2011 12:01:30 121
01/01/2011 12:02:30 122
01/01/2011 12:03:30 123
01/01/2011 12:04:30 124
01/01/2011 12:05:30 125
01/01/2011 12:06:30 126
LDR10 : 126
LDR11 : 125
LDR12 : 124
Copy
