3 Project Settings Dialog Box
4
Project Settings
3.2 Communication Interface Tab

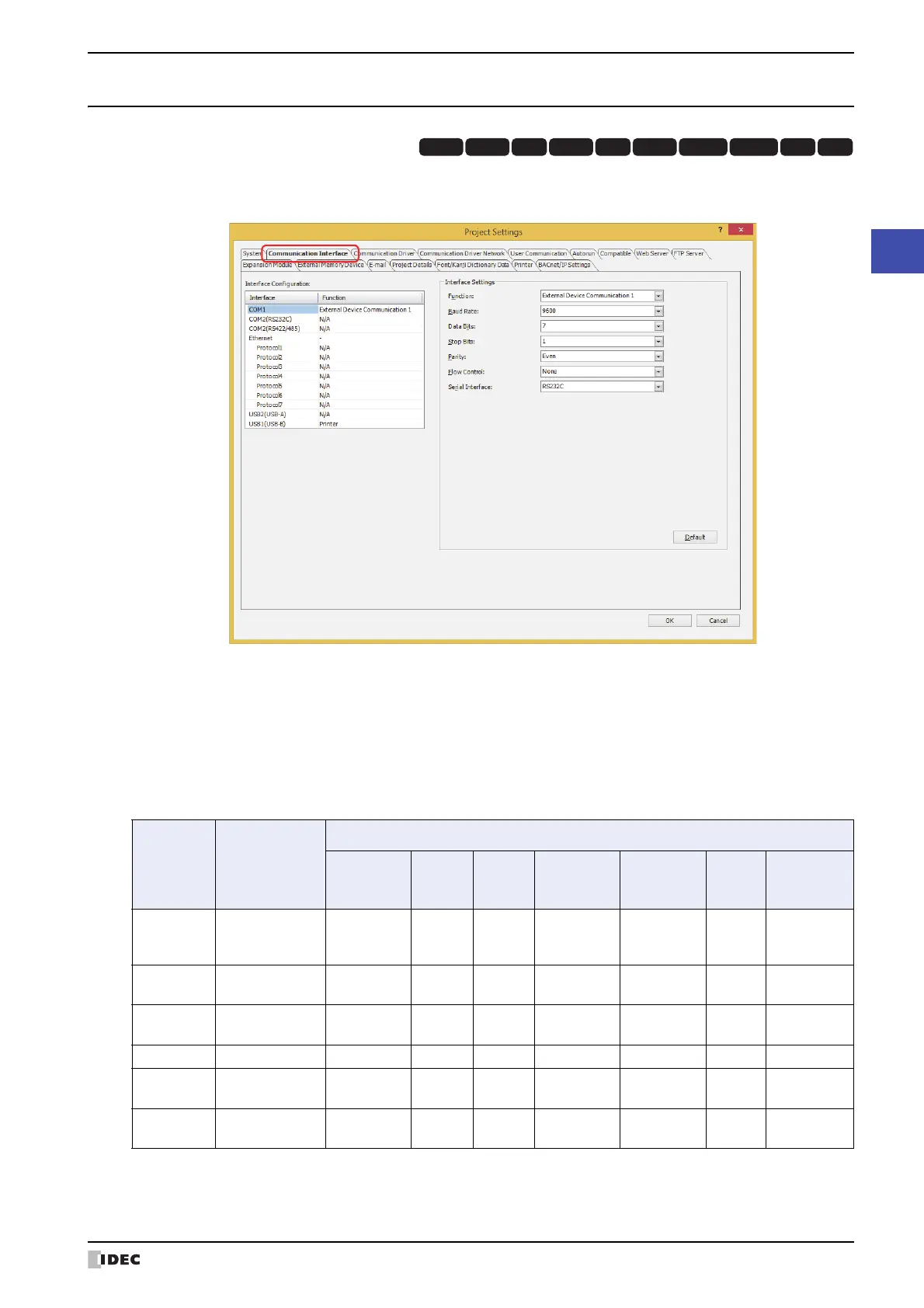

The Communication Interface tab is used to configure the functions used by the MICRO/I communication
interfaces.
■ Interface Configuration
Interface Configuration lists the communication interfaces and functions to use. Select the appropriate Interface
(COM1, COM2, etc.) to switch Interface Settings to the items that can be configured for that communication
interface.
The items displayed in Interface vary based on the model. The supported functions for each communication
interface are as follows.
HG5G/4G/3G/2G-V
HG3G HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T HG4G HG1G HG1P
Name Interface
Function
External Device
Communication
1 to 4
O/I Link
Master
O/I Link
Slave
User
Communication
1 to 3
Sub Host
Communication
Printer
Maintenance
Communication
COM1
Serial Interface
(RS232C or
RS422/485)
YES YES YES YES YES NO NO
COM2
(RS232C)
Serial Interface
(RS232C)
YES NO NO YES YES NO NO
COM2
(RS422/485)
Serial Interface
(RS422/485)
YES YES YES YES YES NO NO
Ethernet Ethernet Interface YES NO NO YES NO NO YES
USB2
(USB-A)
USB Interface
(Type A)
NO NO NO YES NO NO NO
USB1
(USB-B)
USB Interface
(Mini-B)
NO NO NO NO NO YES YES
