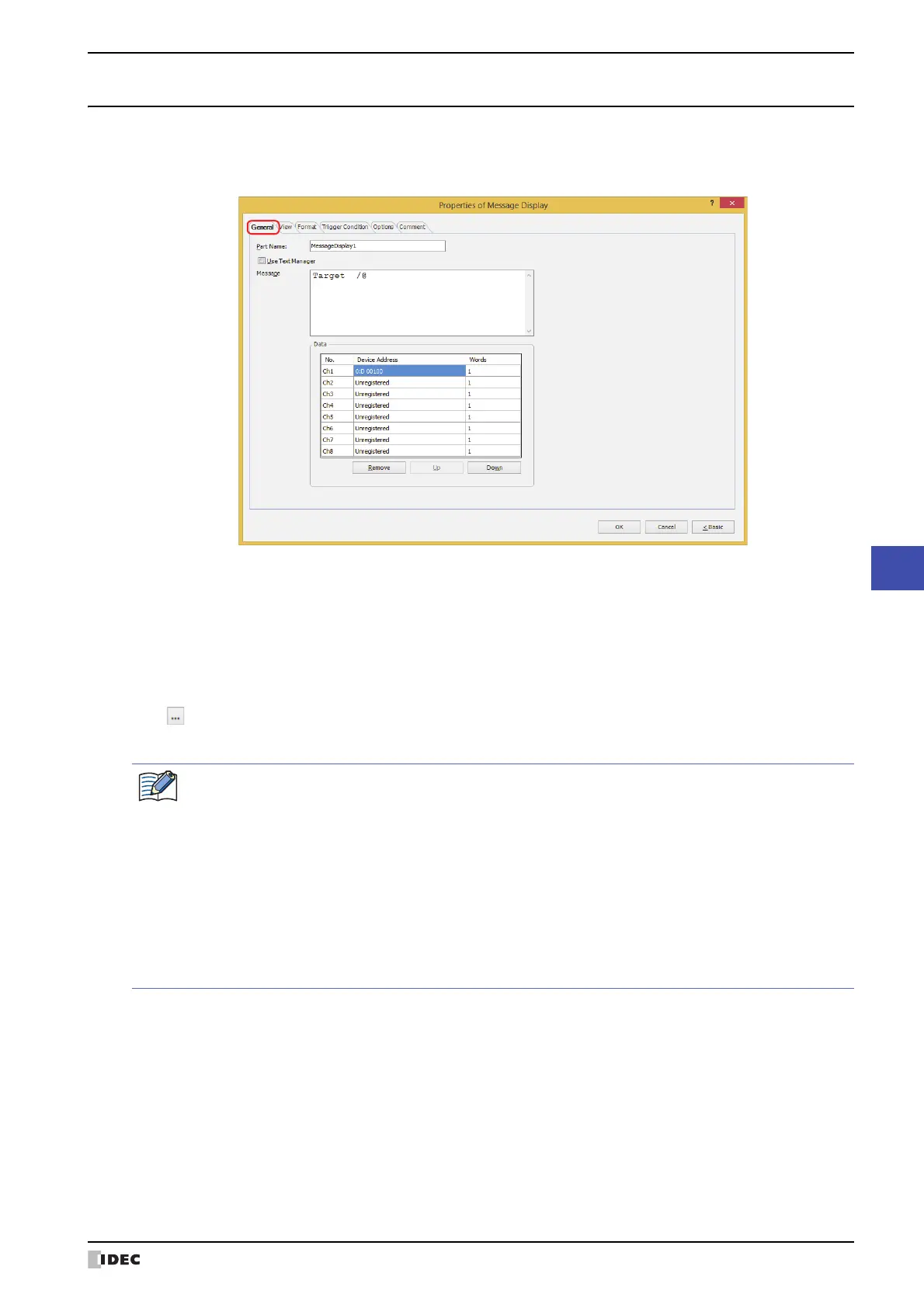

5.3 Properties of Message Display Dialog Box
This section describes items and buttons on the properties dialog box.
●
General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Use Text Manager
Select this check box to use text registered in Text Manager.
■ Text ID
Specifies the Text Manager ID number (1 to 32000) when using text registered in Text Manager.
Click to display Text Manager.
This option can only be configured when the Use Text Manager check box is selected.
To read values of word devices as character codes with text registered in Text Manager and display it as
text, enter “\@” (1 to 8) in Text for the Text ID at the position to display the value of device address as
text. The channels configured under Data are allocated in order from the first “\@”. The text is displayed
according to the values of device addresses in order from the first reference device address.
However, in the following situations “\@” is not handled as text to display according to values of device
addresses and is displayed unchanged.
•When Font is Windows for Text ID configured in Text Manager
• When the number of “\@” configured in Text for Text ID is greater than the number of channels
configured with device addresses
(Text for the character codes corresponding to the values of device addresses is only displayed for the
number of channels in order from the beginning.)
