WindO/I-NV4 User’s Manual 8-23
2 Word Button
8
Buttons

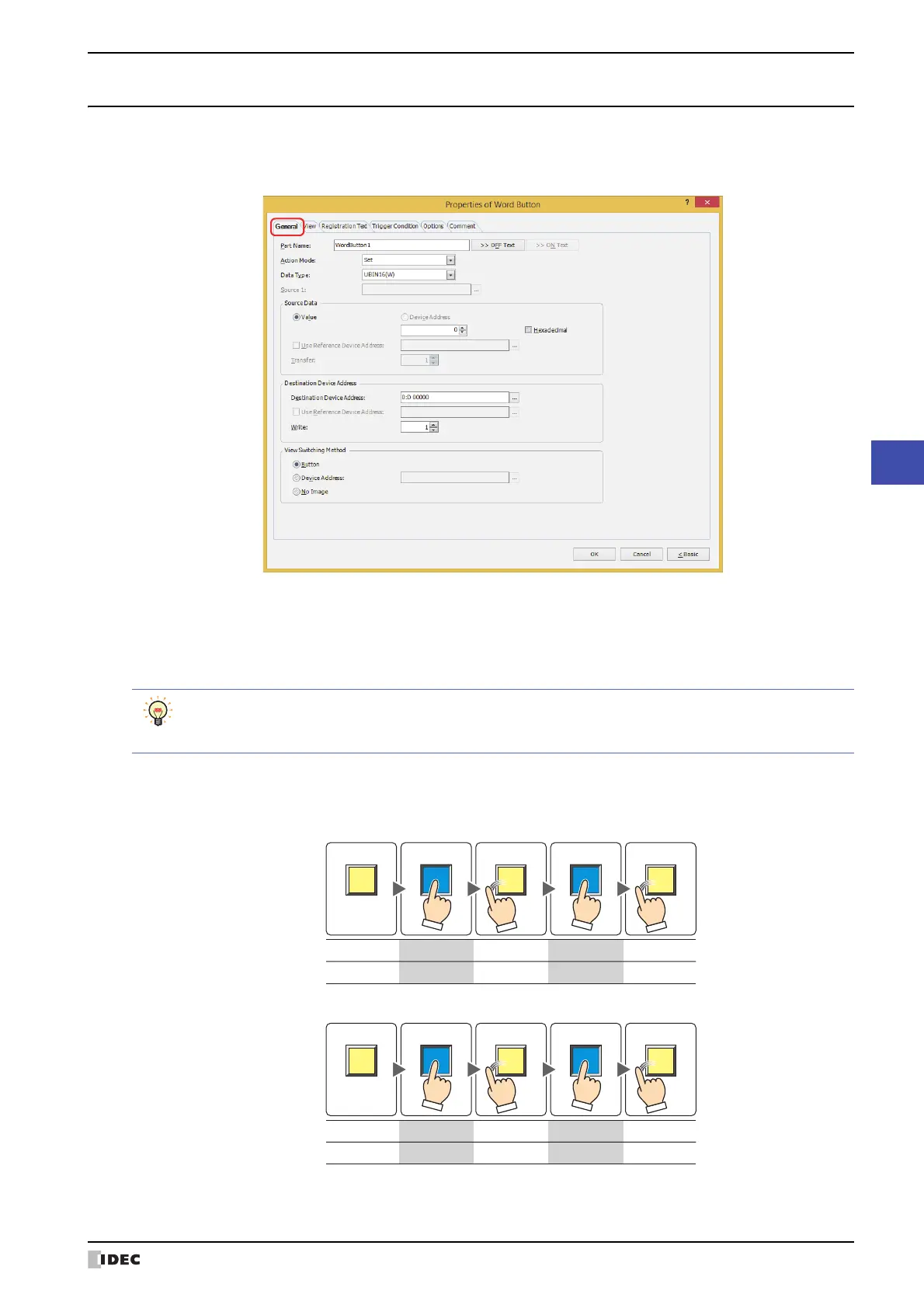

2.3 Properties of Word Button Dialog Box
This section describes items and buttons in the Properties dialog box.
●
General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ >>OFF Text, >>ON Text
Applies the text entered in the Part Name field to the Text field under the OFF or ON fields on the Registration
Text tab. This is used as the Registration Text when the button is OFF or ON.
■ Action Mode
Select the behavior of the button from the following:
To specify the Registration Text to use when the button is ON, select the Set by State check box on the
Registration Text tab. If left unchecked, the same Registration Text assigned for the OFF state is
displayed for the ON state as well.
Set: Pressing the button writes a constant value to a word device.
Move: Pressing the button writes the value in the source device address to the destination word device.
Release
Initial image
Press ReleasePress
Write
Value
Operation and
view
Action
Data written
Write
Value
ReleasePress ReleasePress
Initial image
Write
Value in
device address
Operation and
view
Action
Data written
Write
Value in
device address
