WindO/I-NV4 User’s Manual 7-5
1 Shapes
7
Drawings

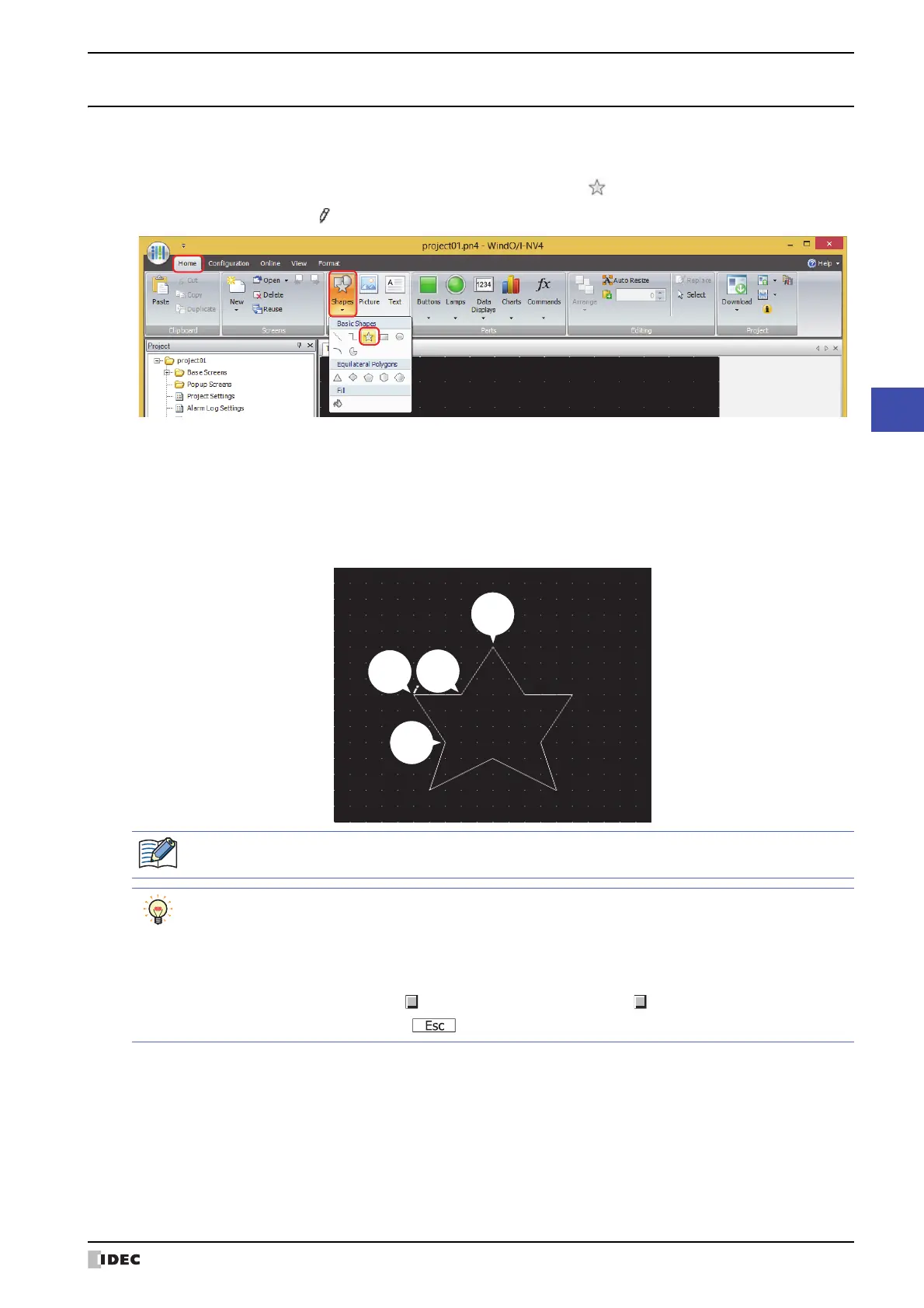

1.3 Polygon
● Polygon Drawing Procedure
This section describes the procedure for drawing polygons.
1 On the Home tab, in the Drawings group, click Shapes, and then click (Polygon) under Basic Shapes.
The mouse cursor changes to (pencil).
2 Click at the location (start point) to start drawing the polygon on the edit screen.
3 Click the end point locations in order.
A line is drawn that connects the start point and the various end point locations in the order that they were created.
4 Double click at the stop point location.
A polygon is drawn with the start point and stop point connected.
Start
point
End
point
The maximum number of end points in the polygon, including the start point and the stop point, is 300
points.
• To change the style of the drawn polygon, perform one of the following operations.
- Double click the polygon to open the Properties dialog box
- Select the polygon and select the style with Shape Style on the Format tab
- Select the polygon and open the right click menu
• To change the start point, end points, or the stop point of the drawn polygon, select the polygon and right
click on it, then click Reshape. is displayed on the polygon. Drag to the desired location. Double
click the edit screen or press the key to finish changing the shape.
To Next Page
