IDEC MICRO/I HG1P-ST32 Series User Manual

6 Multi-Button
8-108 WindO/I-NV4 User’s Manual

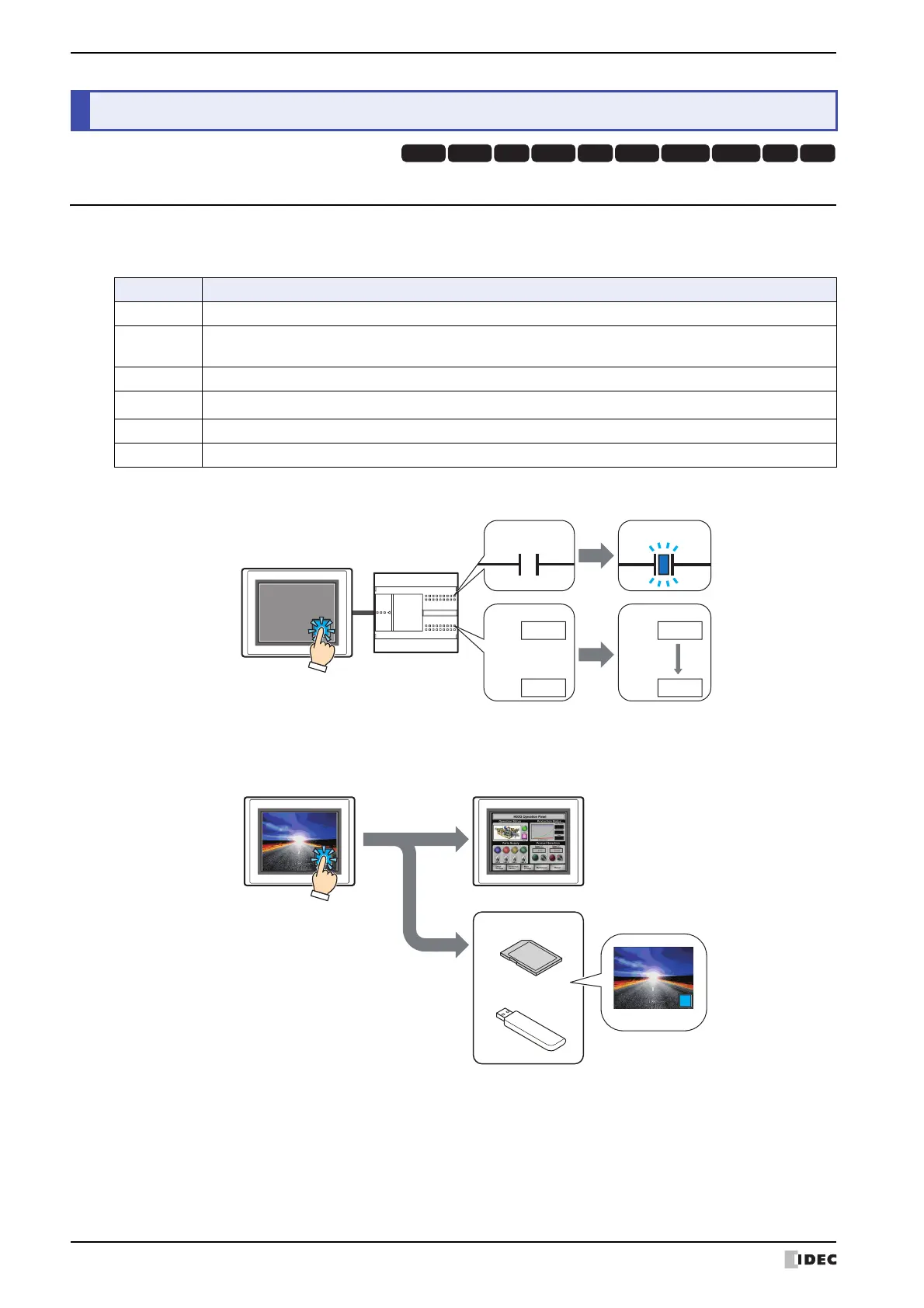

6.1 How the Multi-Button is Used
Executes multiple commands at once.
These commands can be assigned to a Multi-Button.
• Pressing the button writes a 1 to a bit device, and the value of word device to another device address.
• Pressing the button outputs a screenshot of the current screen to an external memory device
*1
, and then switches
the Base Screen.
*1 SD memory card for HG5G/4G/3G/2G-V, HG4G/3G and HG2G-5F, USB flash drive for HG2G-5T and HG1G/1P
6 Multi-Button
HG3G HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T HG4G HG1G HG1P
Command Description
Bit Write Writes a 0 or 1 to the specified bit device when pressed.
Word Write
Writes a value to a word device when pressed. You can specify the destination address number indirectly,
and perform arithmetic on the value to be written.
Goto Screen Switches screens and opens other windows when pressed.
Print
Outputs a screenshot to the printer or the external memory device
*1
when pressed.
Key Performs downloads, uploads, and file copying when pressed. Also used to manipulate other parts.
Script Executes a script when pressed.
MICRO/I
1
External device
0
D0=
123
D1=
0
D0=
123
D1=
123
Move
MICRO/I
USB flash drive
SD memory card
Image file
External Memory Device
