WindO/I-NV4 User’s Manual 12-27
4 Print Command
12
Commands

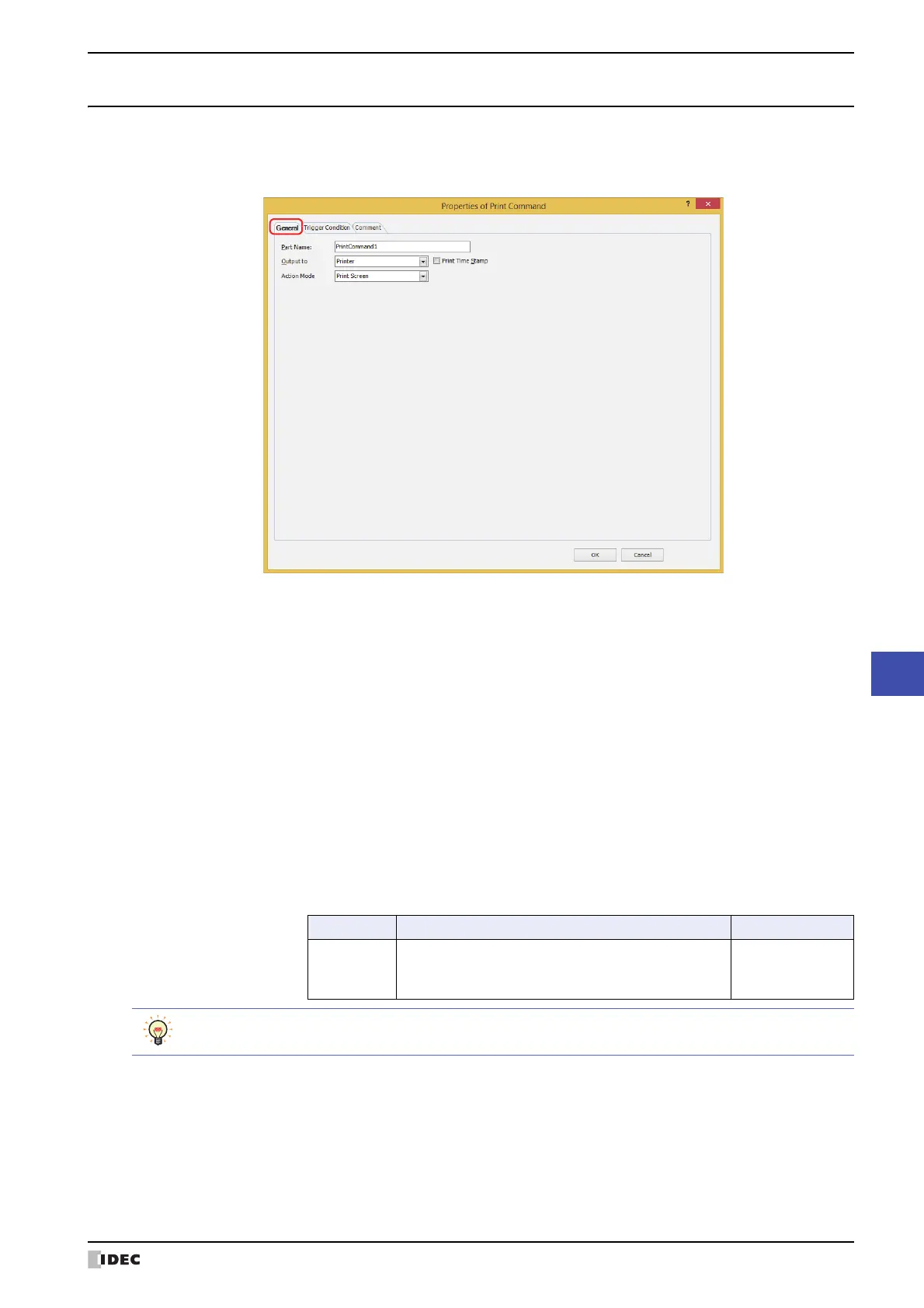

4.3 Properties of Print Command Dialog Box
This section describes items and buttons in the Properties dialog box.
●
General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Output to
Select where to direct the screenshot to.
■ Action Mode
Select the action to perform when the trigger condition is satisfied from the following. This option is only displayed
when Printer is selected in Output to.
*1 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F only
*2 SD memory card for HG5G/4G/3G/2G-V, HG4G/3G and HG2G-5F, USB flash drive for HG2G-5T and HG1G/1P
Printer
*1
:
Outputs the screenshot to the printer connected to the MICRO/I.
Print Time Stamp: Adds the date and time of printing to the screenshot before
sending it to the printer.
The date and time format depends on the language selected in
Language. Language is available on the Project Details tab of
the Project Settings dialog box.
The display formats are shown below:
• Japanese: YYYY/MM/DD hh:mm
• English: MM/DD/YYYY hh:mm
YYYY: year, MM: month, DD: day, hh: hour, mm: minute
External Memory Device
*2
:
Outputs the screenshot as a file to the external memory device inserted in the MICRO/I.
Files are output as follows:
File format File name File size
JPEG
Example: A file created at 18:50:25 on June 30, 2011 will
be named “CAP110630_185025.JPG”.
Depends on image
being displayed.
• For details about printers, refer to Chapter 32 “Printer” on page 32-1.
• For details about external memory devices, refer to Chapter 31 “External Memory Devices” on page 31-1.
Print Screen: Outputs a screenshot of the current screen to the printer or the external memory device.
Cancel Printing
*1
:
Cancels printout to the printer.
To Next Page
