WindO/I-NV4 User’s Manual 32-1
32
Printer
This chapter describes the functions of the MICRO/I when using a printer, and how to connect it.
1.1 Functions Available with the Printer
These functions are available when a printer is connected to the MICRO/I.
• Printing screenshots
 Refer to Chapter 8 “4 Print Button” on page 8-56, and Chapter 12 “4 Print Command” on page 12-25.
• Printing alarm logs (Batch)
 Refer to Chapter 13 “Alarm Log Function” on page 13-1.

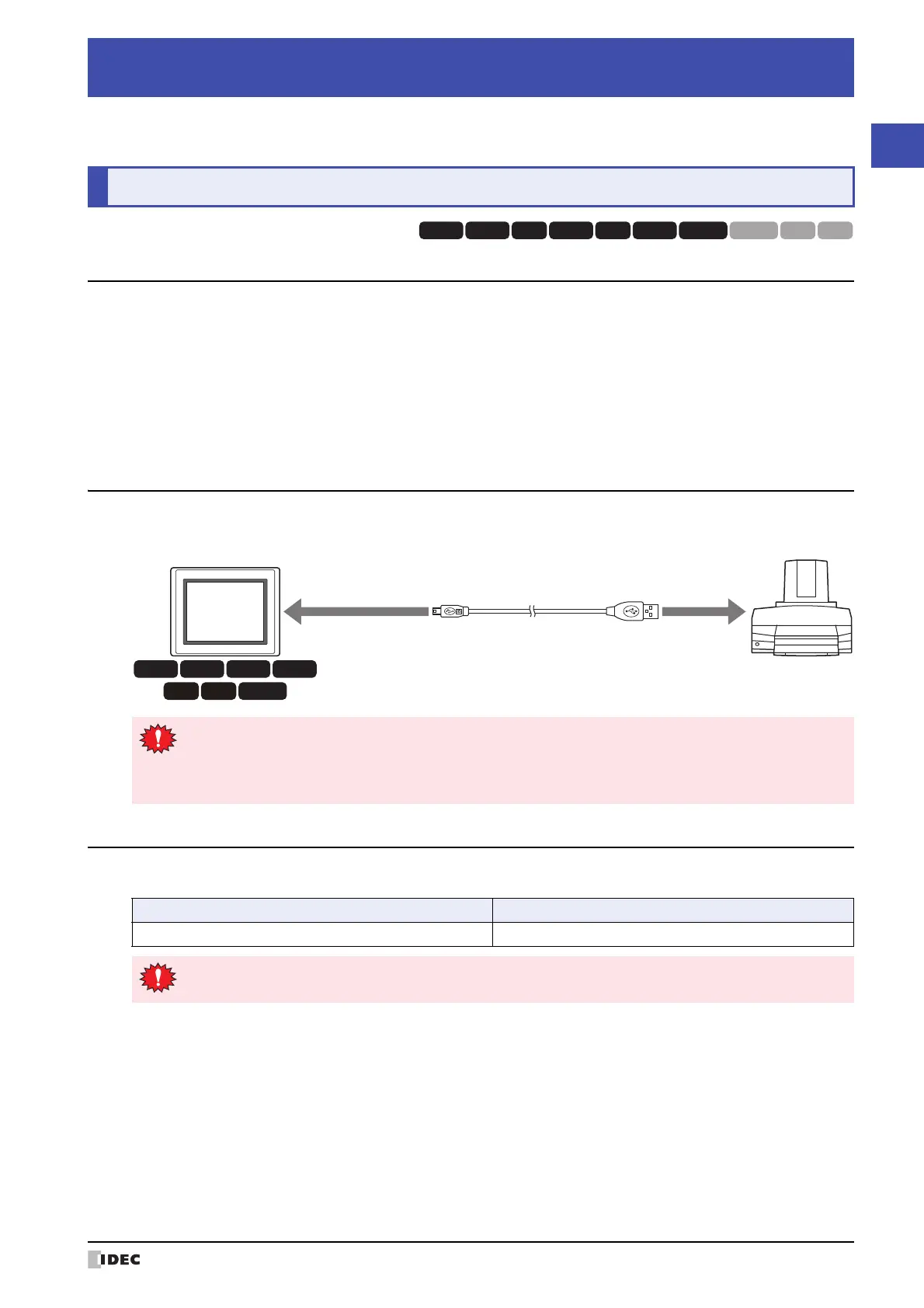

1.2 Connecting a Printer to MICRO/I
Connect the USB interface (USB1) on the MICRO/I and the USB port on the printer with a USB cable.
1.3 Supported Printers
The following printers can be used.
Chapter 32 Printer
1 Functions and Connections
HG3G HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T HG4G HG1G HG1P
HG3G HG2G-5F HG4G
HG5G-V HG4G-V HG3G-V HG2G-V
(USB1)
Printer
USB cable
To USB portTo USB interface
Mini-B plug A plug
MICRO/I
• Do not disconnect the cable between the MICRO/I and printer while printing.
• Do not use a USB hub when connecting to the printer with a USB cable.
• Printed images may appear differently depending on the printer used. Always check the image by
printing an actual image.
Control codes/Manufacturer/Standard Supported printers
PictBridge Printers certified with the PictBridge logo
Always test any printer not listed in the above chart before using it.
