WindO/I-NV4 User’s Manual 10-27
2 Character Input
10
Data Displays

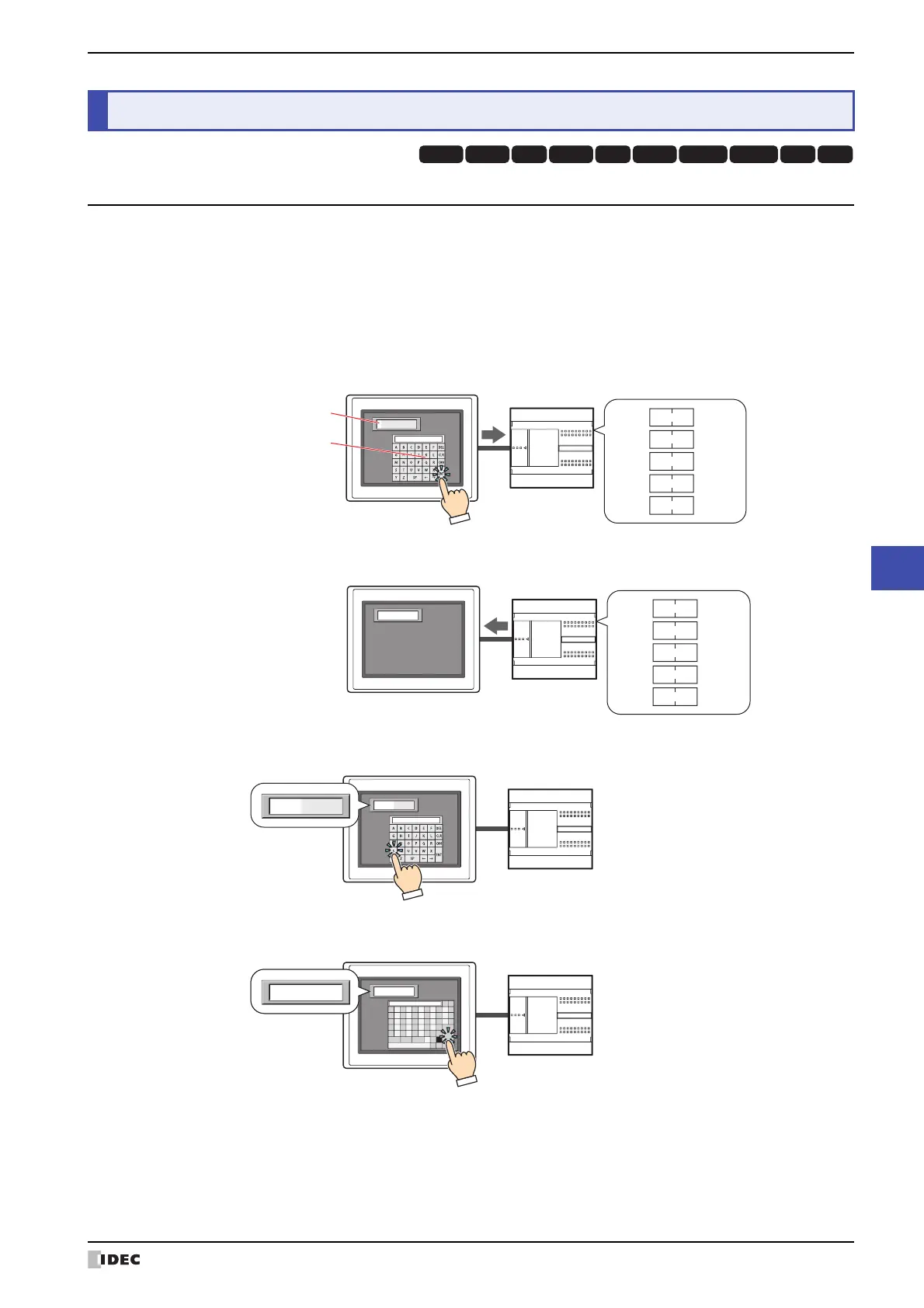

2.1 How the Character Input is Used
The Character Input features a display mode that displays the character codes in current values of device addresses
as text and an entry mode that enters text using the keypad or key buttons and writes the character codes for the
entered text to device addresses. When the part is displayed on the screen, the Character Input is in display mode. To
enter text by pressing the keypad or key buttons, touch the Character Input to switch it to entry mode.
The Character Input can perform the following functions.
• Write the character codes for text entered with the keypad or key buttons to device addresses
• Display the character codes in current values of device addresses as text
• Display entered text as * (asterisk)
•Enter Kanji characters
2 Character Input
HG3G HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T HG4G HG1G HG1P
D100 :
D101 :
4847
(Hex)
‘H’ ‘G’
2053
(Hex)
4552
(Hex)
4945
(Hex)
5300
(Hex)
‘E’ ‘R’D102 :
D103 :
D104 :
(NULL) ‘S’
‘ ’ ‘S’
MICRO/I
External device
HG SERIES_
HG SERIES
Character Input
Standard keypad
D100 :
D101 :
4847
(Hex)
‘H’ ‘G’
2053
(Hex)
4552
(Hex)
4945
(Hex)
5300
(Hex)
D102 :
D103 :
D104 :
‘S’ (NULL)
‘ I ’ ‘E’
‘E’ ‘R’
‘ ’ ‘S’
MICRO/I
External device
HG SERIES
MICRO/I
External device
****
****
****
MICRO/I
External device
山田太郎
山田太郎
あ
い
う
え
お
か
き
く
け
こ
さ
し
す
せ
そ
た
ち
つ
て
と
な
に
ぬ
ね
の
は
ひ
ふ
へ
ほ
ま
み
む
め
も
や
ゆ
よ
ら
り
る
れ
ろ
ー
、
。
↑↓
わ
を
ん
BS
←→
CLR
CAN
ENT
Kanji
Alphabet Num&Sign
゛゜
Small
SP
山田太郎
