10.3 Properties of Calendar Dialog Box
This section describes items and buttons on the properties dialog box.

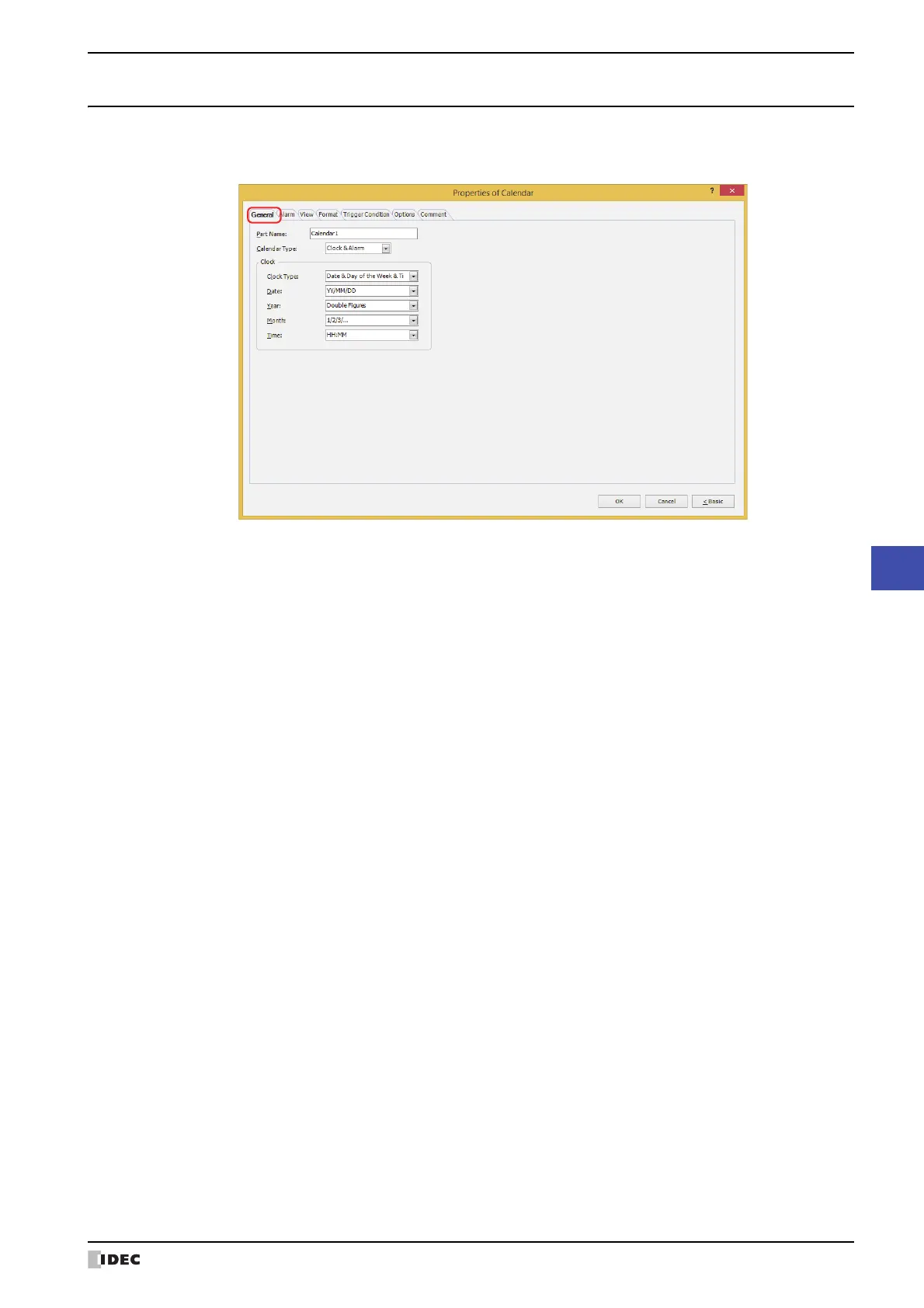

● General Ta b
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Calendar Type
Selects the type of Calendar from the following.
■ Clock
These options configure the type and format of the clock. These options can only be configured when Clock or Clock
& Alarm is selected for Calendar Type.
Clock: Displays the date and time.
Alarm: Notifies by writing 1 (ON Time) or 0 (OFF Time) to a device address at the configured times without
displaying the clock.
Clock & Alarm: Displays the clock and notifies by writing 1 (ON Time) or 0 (OFF Time) to a device address at the
configured times.
Clock Type: Selects the items to display for the clock from the following.
Time, Day of the Week & Time, Date & Time, Date & Day of the Week & Time
Date: Selects the display type of the date from the following.
YY/MM/DD, MM/DD/YY, DD/MM/YY, MM/DD, DD/MM
This option can only be configured when Date & Time or Date & Day of the Week & Time is
selected for Clock Type.
Year: Selects the display type for the year as Double Figures or Four Figures.
This option can only be configured when Date & Time or Date & Day of the Week & Time is
selected for Clock Type.
Month: Selects the display type for the month as 1/2/3/... or Jan/Feb/Mar/....
This option can only be configured when Date & Time or Date & Day of the Week & Time is
selected for Clock Type.
Time: Selects the display type for the time as HH:MM or HH:MM:SS.
HH: hours, MM: minutes, SS: seconds
