2 Data Log Function Configuration Procedure
14-8 WindO/I-NV4 User’s Manual
This section describes the configuration procedure for the Data Log function.

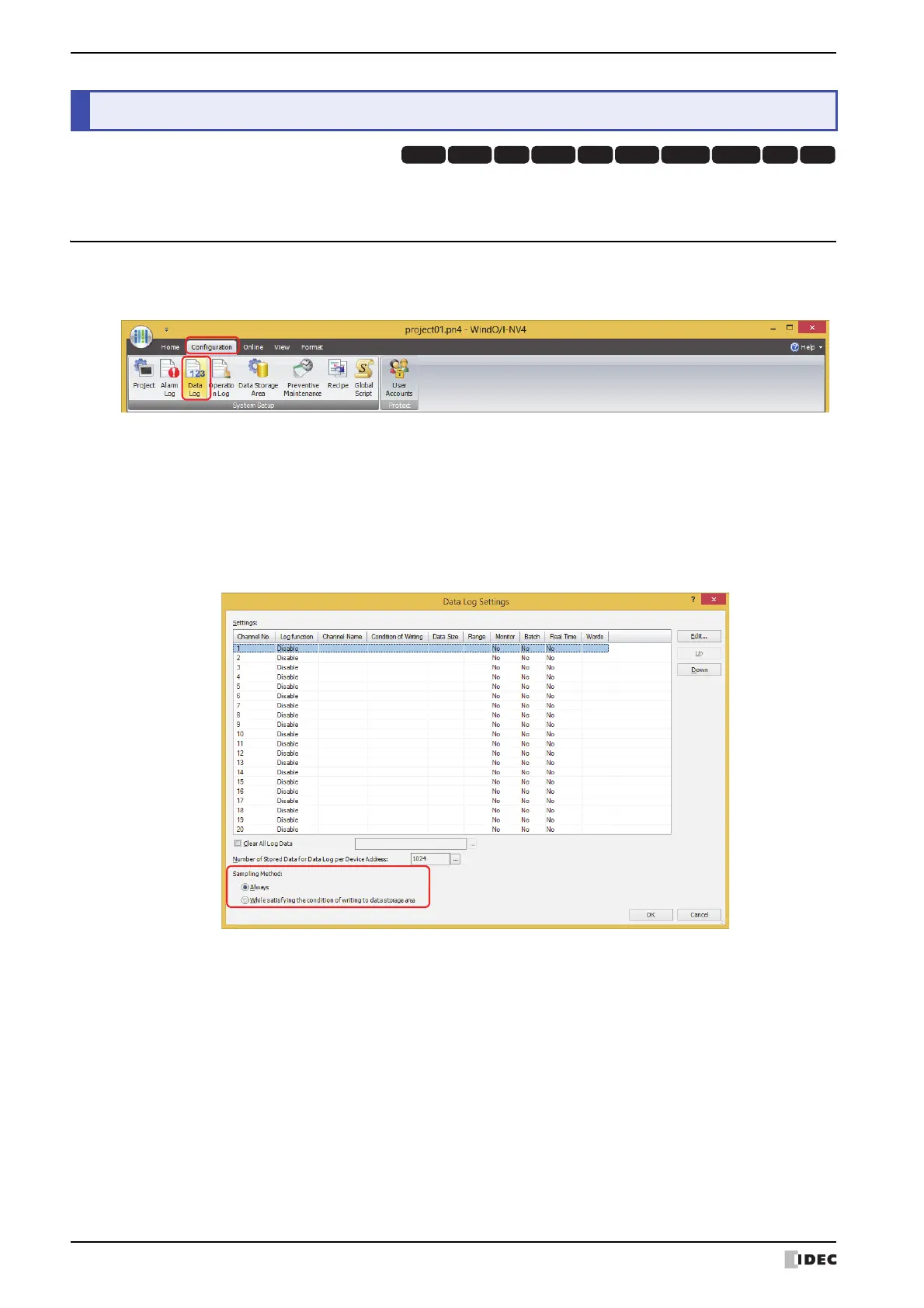

2.1 Configuring the Data Log Function
1 On the Configuration tab, in the System Setup group, click Data Log.
The Data Log Settings dialog box is displayed.
2 Under Sampling Method, select the method that will be used by the MICRO/I to read data.
■ Always
The values of the device addresses set for the data of each channel are always read. When the condition of writing to
the data storage area is satisfied, the values that were read at that point in time are written to the data storage area.
■ While satisfying the condition of writing to data storage area
The values of the device addresses set for the data of each channel are read when the condition of writing to the data
storage area is satisfied, and those values are written to the data storage area.
3 Select the channel number to register the Data Log settings to in Settings, then click Edit.
The Individual Settings dialog box is displayed.
2 Data Log Function Configuration Procedure
HG3G HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T HG4G HG1G HG1P
