2 Multi-State Lamp

9-16 WindO/I-NV4 User’s Manual

2.1 How the Multi-State Lamp is Used

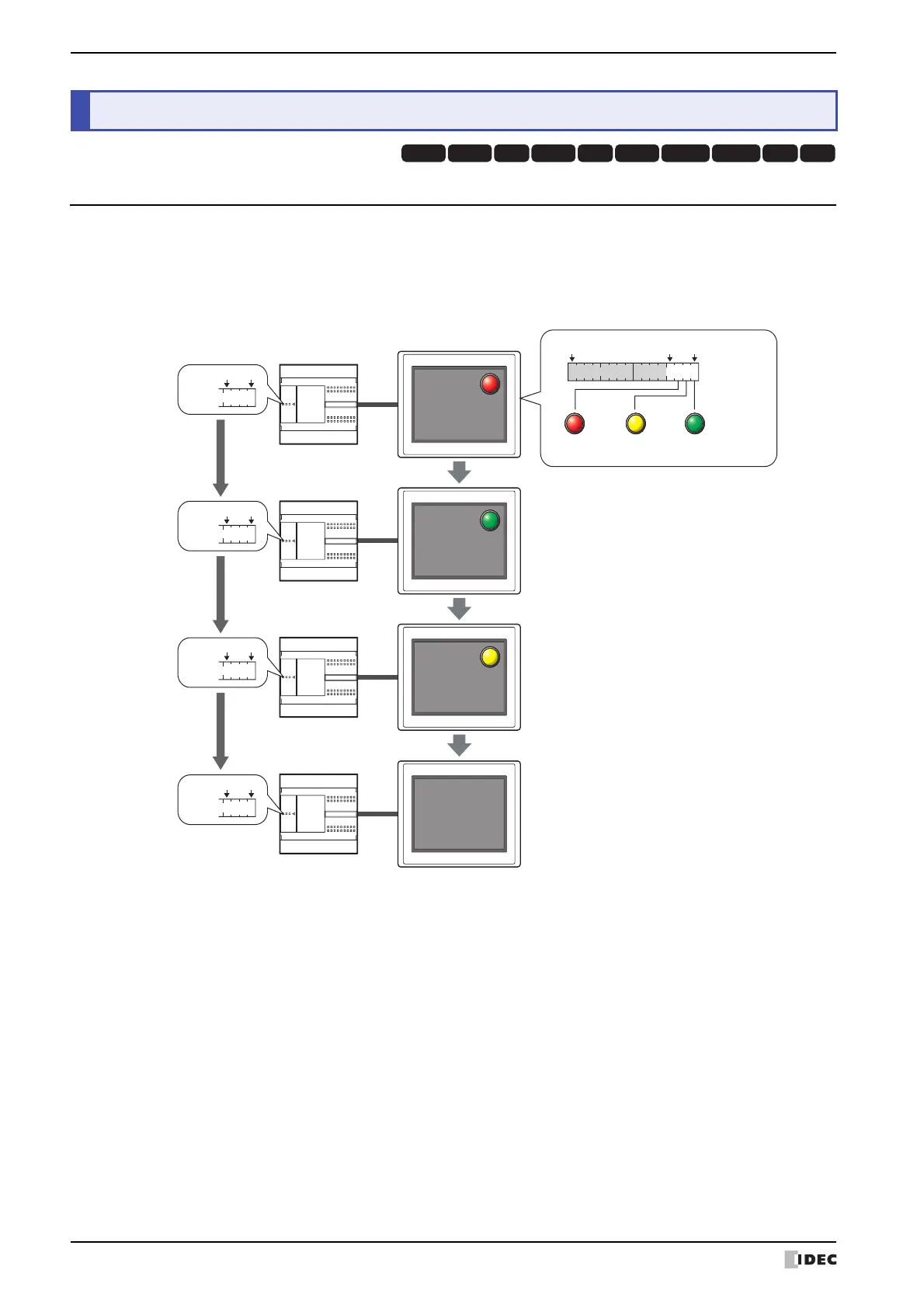

Multi-state lamp parts display drawing objects. The value of a specified word device is used to switch the drawing

object to be displayed.

• Switch and display pictures by values of device addresses

2 Multi-State Lamp

HG3G

HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T

HG4G HG1G HG1P

External device

MICRO/I

bit15 bit0

bit3

D0= 0100

bit0

bit3

D0= 0001

bit0

bit3

D0= 0010

bit0

bit3

D0= 0000

bit0

bit3

State:

OFF

(None)
