3 Project Settings Dialog Box
4-50 WindO/I-NV4 User’s Manual

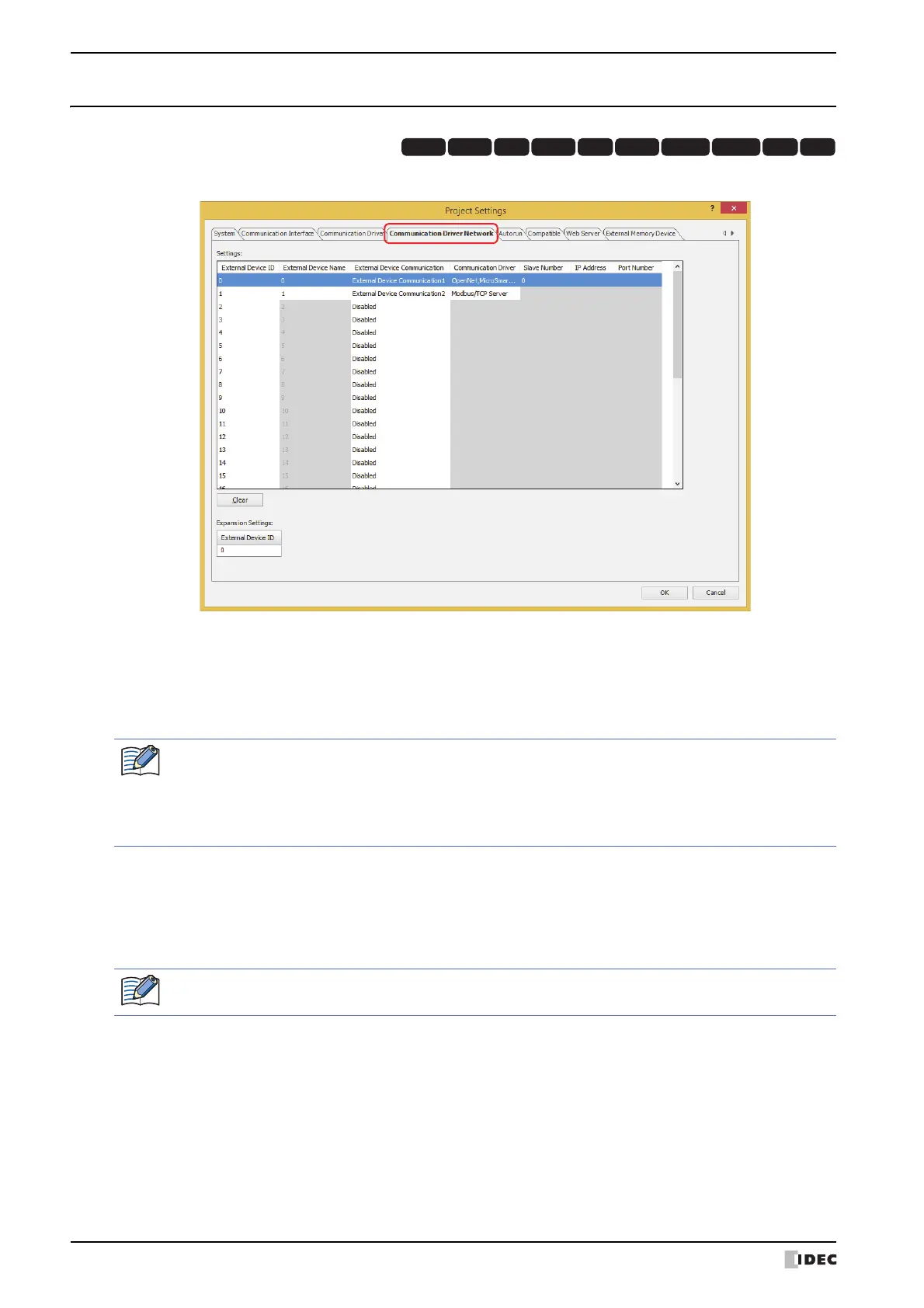

3.4 Communication Driver Network Tab
The Communication Driver Network tab is used to configure the information for external devices.
■ Settings
Edits the settings for the external devices.
HG3G HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T HG4G HG1G HG1P
External Device ID: Shows the number (0 to 31) that the MICRO/I uses to manage the external devices are displayed.
External Device Name: Shows the name for the external device. The default is the number (0 to 31).
Clicking the cell allows you to edit the name. The maximum number is 20 characters.
You cannot use the following characters and name in the External Device Name.
• The following characters and a space
\ / : ; * ? " < > |
•(blank)
• Full width character
• The same name as another External Device ID
External Device Communication: Shows the function set for the serial interface or the Ethernet interface.
(Default: Disabled)
Clicking the cell allows you to select the function from the following items.
Disabled, External Device Communication 1, External Device
Communication 2, External Device Communication 3, External Device
Communication 4
Function configured in communication drivers with a 1:1 connection in External Device Communication
cannot be set to multiple External Device ID.
