WindO/I-NV4 User’s Manual 13-37
4 Using Data and Detected Alarms
13
Alarm Log Function
4.3 Make a Sound of the Buzzer and Flash the Screen when an Alarm has Occurred

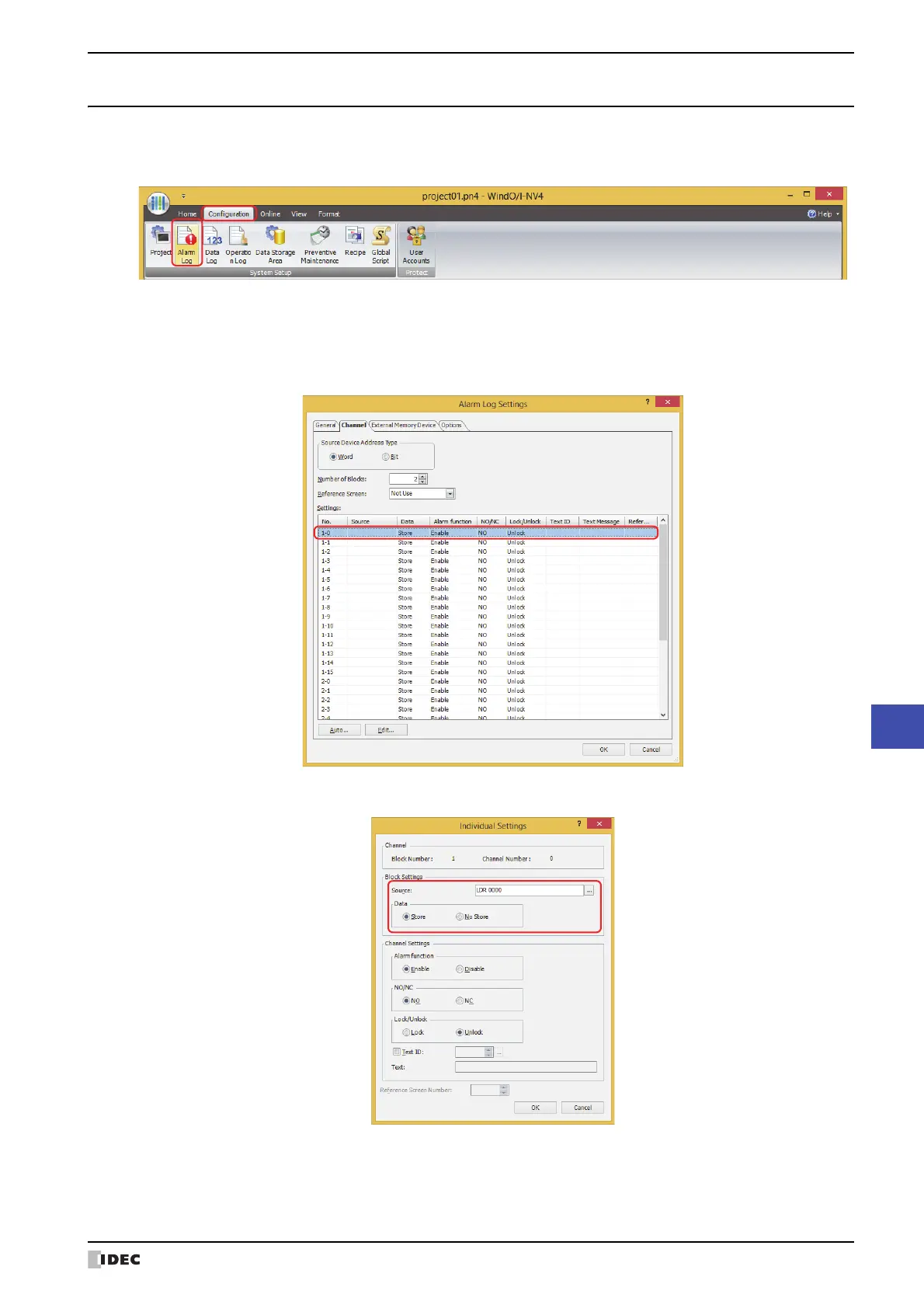

1 On the Configuration tab, in the System Setup group, click Alarm Log.
The Alarm Log Settings dialog box is displayed.
2 Select the type of device address to monitor under Source Device Address Type on the Channel tab and specify
Number of Blocks.
3 Select the channel number to register a message to and click Edit.
The Individual Settings dialog box is displayed.
4 Specify the device address to monitor in Source and select Store under Data.
5 Select Enable under Alarm function, configure NO/NC and Lock/Unlock, and click OK.
You are returned to the Alarm Log Settings dialog box.
