IDEC MICRO/I HG1P-ST32 Series User Manual

WindO/I-NV4 User’s Manual 14-3
1 Overview
14
Data Log Function
1.2 Sampling Values of Device Addresses
The MICRO/I samples values of target device addresses at a regular interval or when a value of device address
changes.

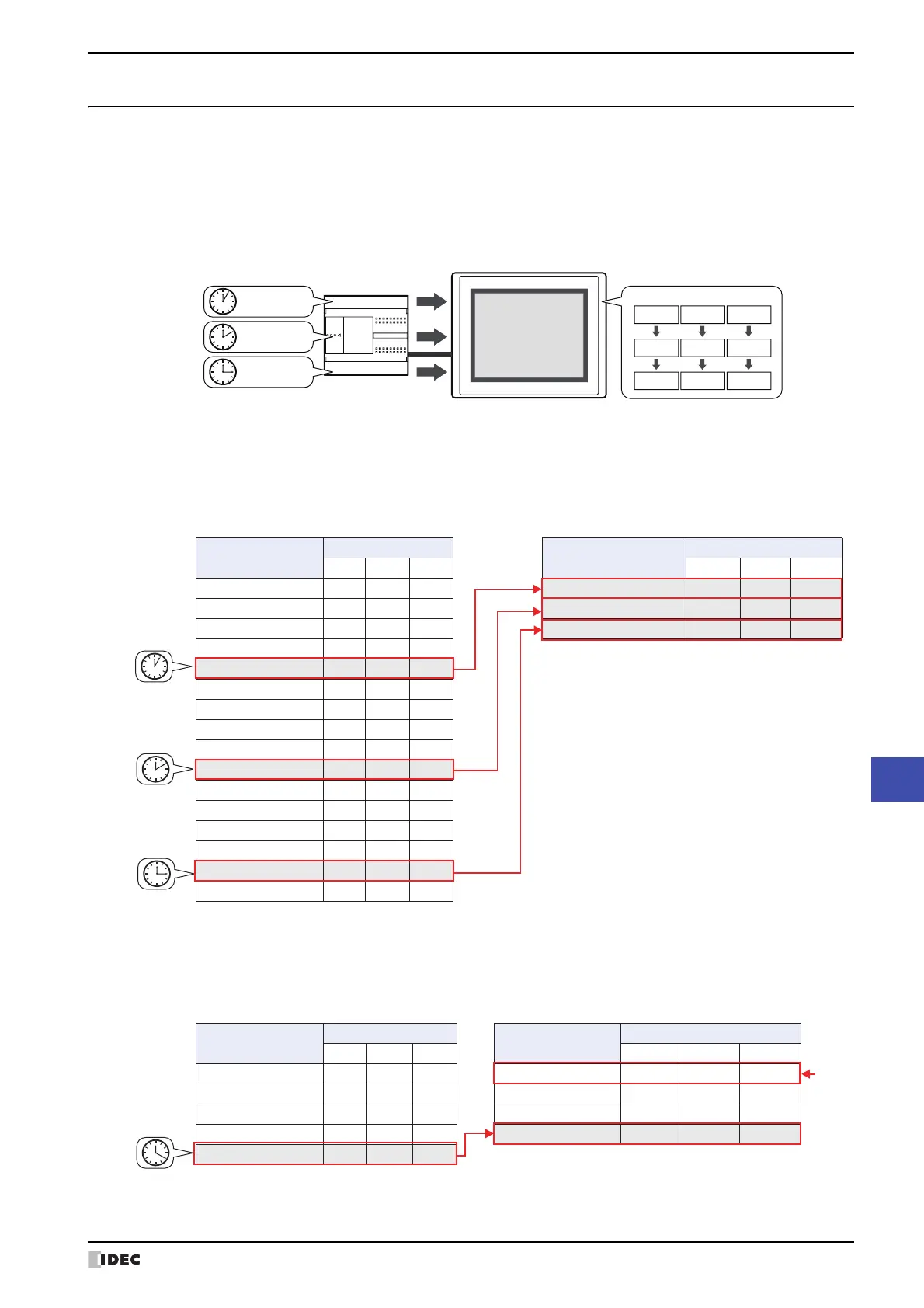

● Sampling Value of Device Addresses at a Regular Interval
When sampling values of device addresses (D100 to D102) at a 5 minute interval (Time: 300 seconds) with the data
storage amount in the data storage area is set to 3, the MICRO/I samples Data Log data as follows.
1 5 minutes after data sampling starts, the MICRO/I stores the values for device addresses D100 to D102.
2 10 minutes after data sampling starts, the MICRO/I stores the values for device addresses D100 to D102.
3 15 minutes after data sampling starts, the MICRO/I stores the values for device addresses D100 to D102.
4 20 minutes after data sampling starts, the MICRO/I stores the values for device addresses D100 to D102.
Since the data storage amount in the data storage area is set to 3, the oldest data is deleted in order to make room
for the newest data.
MICRO/I
External device
12 : 05 : 00
12 : 10 : 00
12 : 15 : 00
D100 D101 D102
20 80 2
10
70 3
30
90 1
I/ORCIM eht no derots ataDValues of Device Addresses
Time
Value
Sampling Time
Value
3 ataD2 ataD1 ataD201D101D001D
01/01/2011 12:01:00 10 70 3 01/01/2011 12:05:00 20 80 2
01/01/2011 12:02:00 20 80 2 01/01/2011 12:10:00 10 70 3
01/01/2011 12:03:00 30 90 1 01/01/2011 12:15:00 30 90 1
01/01/2011 12:04:00 10 70 3
01/01/2011 12:05:00 20 80 2
01/01/2011 12:06:00 30 90 1
01/01/2011 12:07:00 10 70 3
01/01/2011 12:08:00 20 80 2
01/01/2011 12:09:00 30 90 1
01/01/2011 12:10:00 10 70 3
01/01/2011 12:11:00 20 80 2
01/01/2011 12:12:00 30 90 1
01/01/2011 12:13:00 10 70 3
01/01/2011 12:14:00 20 80 2
01/01/2011 12:15:00 30 90 1
01/01/2011 12:16:00 10 70 3
1
2
3
I/ORCIM eht no derots ataDValues of Device Addresses
Time
Value
Sampling Time
Value
D100 D101 D102 Data 1 Data 2 Data 3
·
·
·
·
·
·
·
·
·
·
·
·
01/01/2011 12:17:00 40 60 2 01/01/2011 12:10:00 10 70 3
01/01/2011 12:18:00 30 60 1 01/01/2011 12:15:00 30 90 1
01/01/2011 12:19:00 10 90 3 01/01/2011 12:20:00 20 80 2
01/01/2011 12:20:00 20 80 2
4
Deleted
