7 Keypad
8-140 WindO/I-NV4 User’s Manual
7.2 Keypad Configuration Procedure
This section describes the configuration procedure for Keypads.

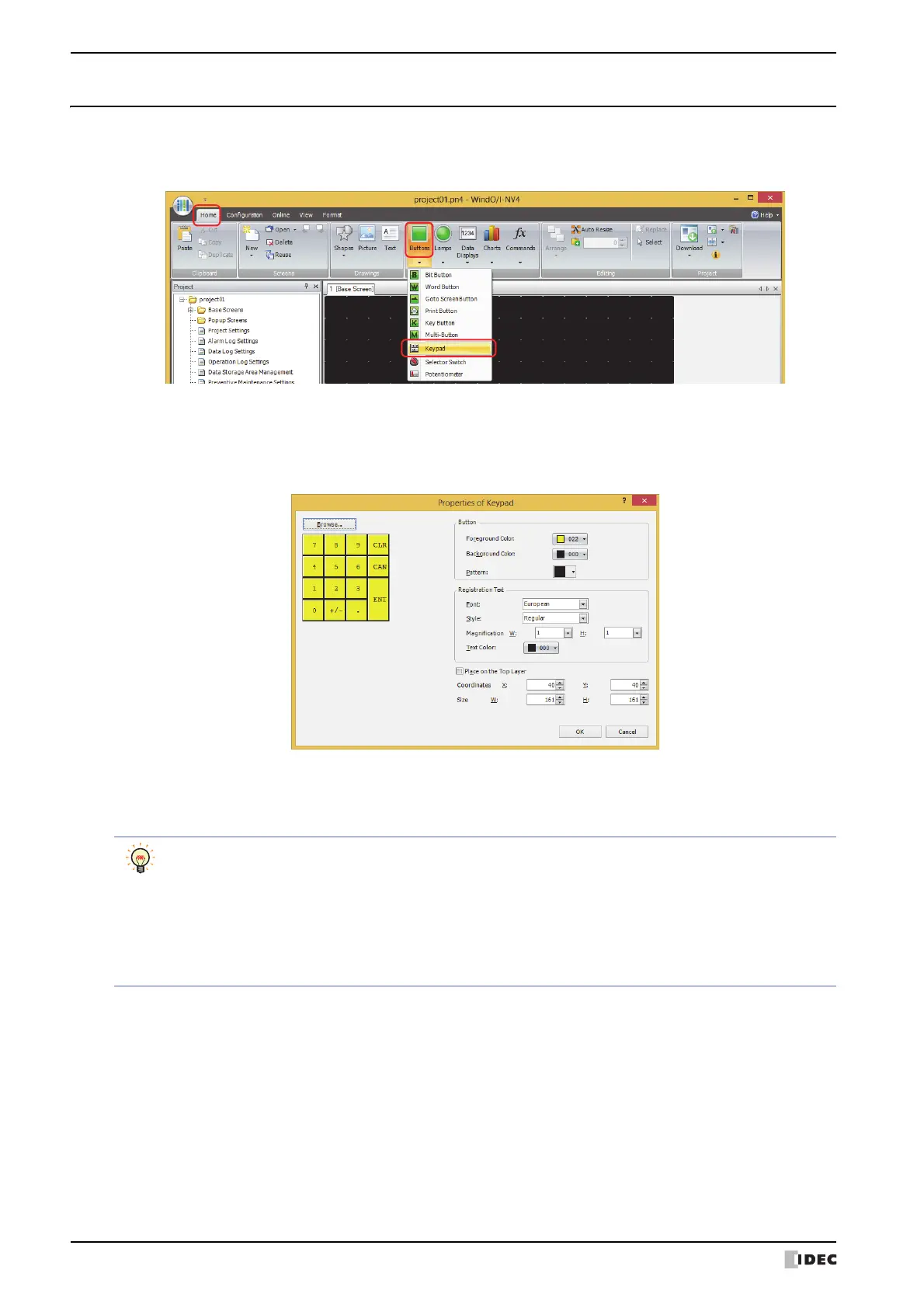

1 On the Home tab, in the Parts group, click Buttons, and then click Keypad.
2 Click a point on the edit screen where you wish to place the Keypad.
3 Double-click the dropped Keypad and a Properties dialog box will be displayed.
4 Change the settings on each tab as necessary.
The Keypad Properties dialog box is displayed until OK is clicked.
Refer to “7.3 Properties of Keypad Dialog Box” on page 8-141.
After OK on the Keypad Properties dialog box is clicked, double clicking the Keypad thereafter calls up the
Properties dialog box for the Key Buttons as a group.
This allows editing of settings common to each button.
• View: “View Tab” on page 8-82
• Registration Text: “Registration Text Tab” on page 8-84
• Options: “Options Tab” on page 8-89
The Options tab only appears in Advanced mode.
