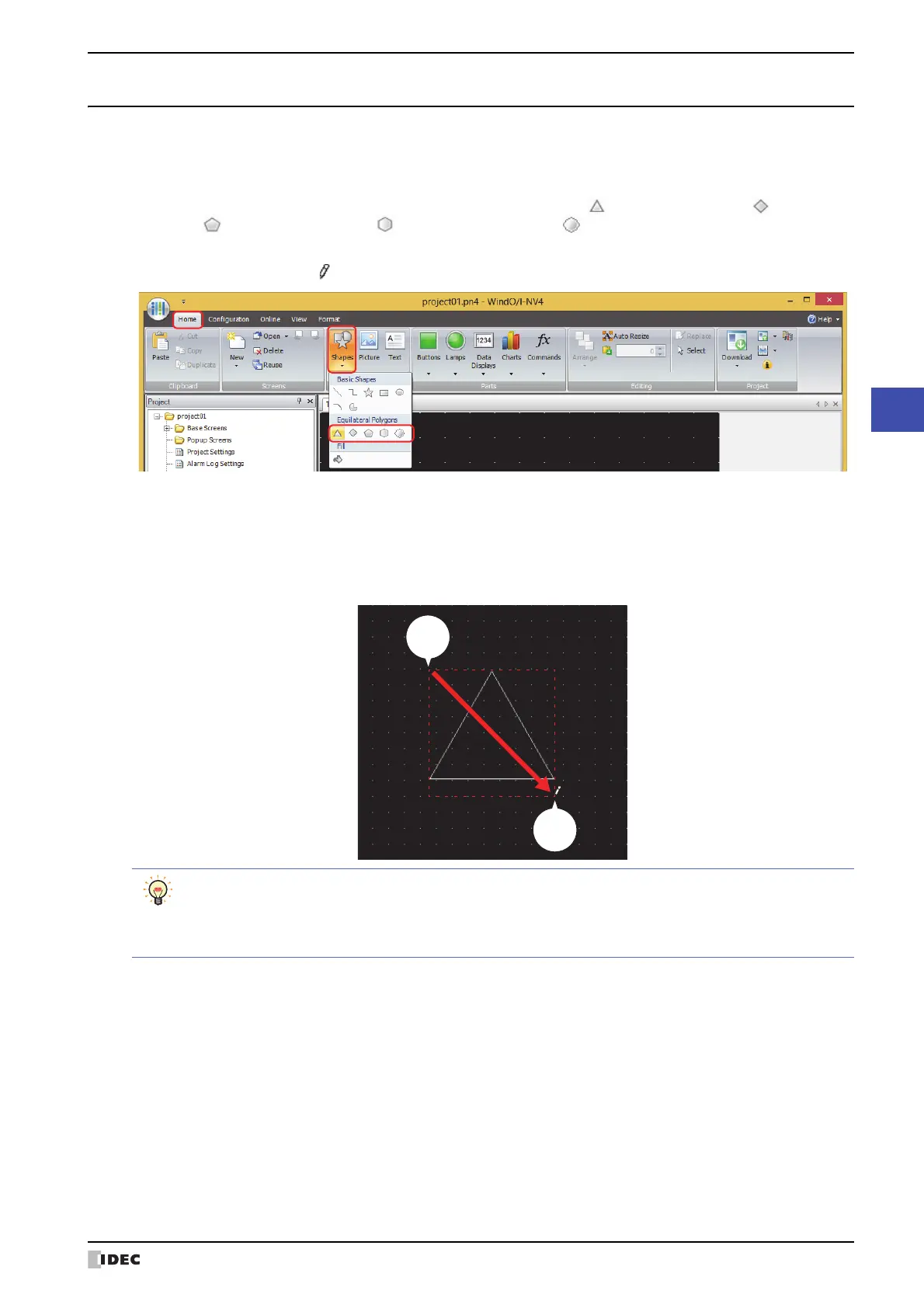

1.8 Equilateral Polygons
● Equilateral Polygons Drawing Procedure
This section describes the procedure to draw equilateral polygons (equilateral triangle, equilateral diamond,
equilateral pentagon, equilateral hexagon, equilateral octagon).
1 On the Home tab, in the Drawings group, click Shapes, and then click (Equilateral Triangle), (Equilateral
Diamond), (Equilateral Pentagon), (Equilateral Hexagon), or (Equilateral Octagon) under Equilateral
Polygons.
The mouse cursor changes to (pencil).
2 Click and hold the mouse button at the location (start point) on the edit screen to start drawing the square that will
circumscribe the equilateral polygon.
3 Drag the mouse to the stop point location so that location becomes the opposite angle of the square.
An equilateral polygon is drawn that inscribes the square made from the opposite angles of the start point and the
stop point.
Stop
point
To change the style of the drawn square, perform one of the following operations.
• Double click the square to open the Properties dialog box
• Select the square and select the style with Shape Style on the Format tab
• Select the square and open the right click menu
